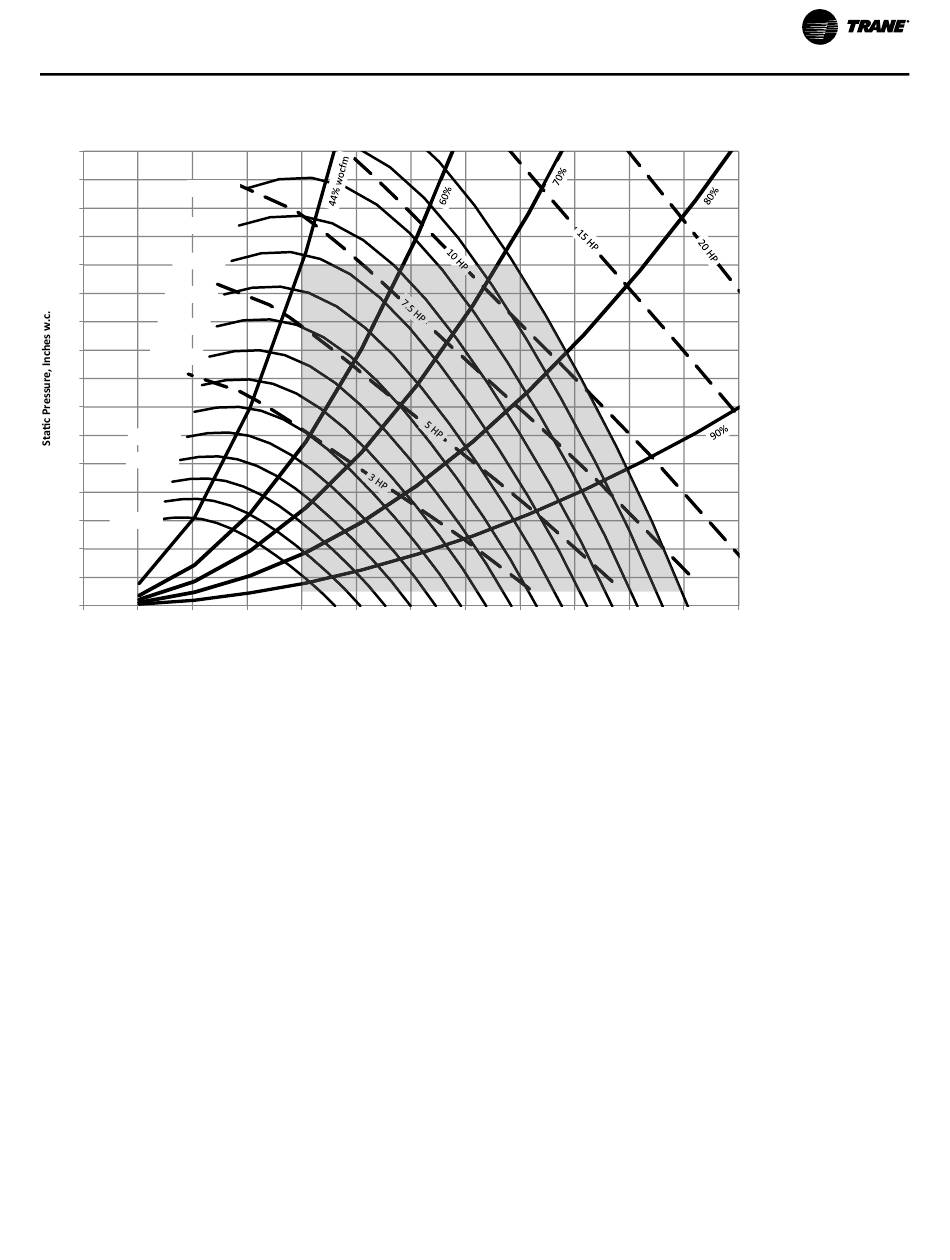

Figure 43. Supply fan performance with variable frequency drive - 20 and 25 tons cooling only - direct drive plenum,
80% width
8.0
7.5
2200 RPM
7.0
2100 RPM
6.5
2000 RPM
6.0
5.5
1900 RPM
5.0
1800 RPM
4.5
1700 RPM
4.0
1600 RPM
3.5
1500 RPM
3.0
1400 RPM
1300 RPM
2.5
1200 RPM
2.0
1100 RPM
1.5
1000 RPM
1.0
0.5
0.0
0 1000 2000
Important: Maximum static pressure leaving the rooftop is
4.0" H O positive. The static pressure drops
2
from the supply fan to the space cannot
exceed 4.0" H
RT-SVX072D-EN
2300 RPM 2400 RPM
3000 4000 5000 6000
Airflow, CFM
O.
2
7000 8000 9000 10000
Notes:
• Shaded areas represent selectable area.
Contact your local Trane® representative for
more information.
• Supply fan performance curve includes internal
resistance of rooftop. For total static pressure
determination, system external static must be
added to appropriate component static
pressure drops (evaporator coil, filters, optional
economizer, optional relief fan, optional heating
system, optional cooling only extended casing,
optional roof curb).
• Maximum Cfm (for cULus approval) as follows:
20 ton - 9,000 Cfm, 25 ton - 11,000 Cfm.
• Minimum motor horsepower is 3 hp. Maximum
motor horsepower is 20 hp. Maximum fan RPM
is 2400.
Unit Start-up
11000 12000
