Electrical Entry Details

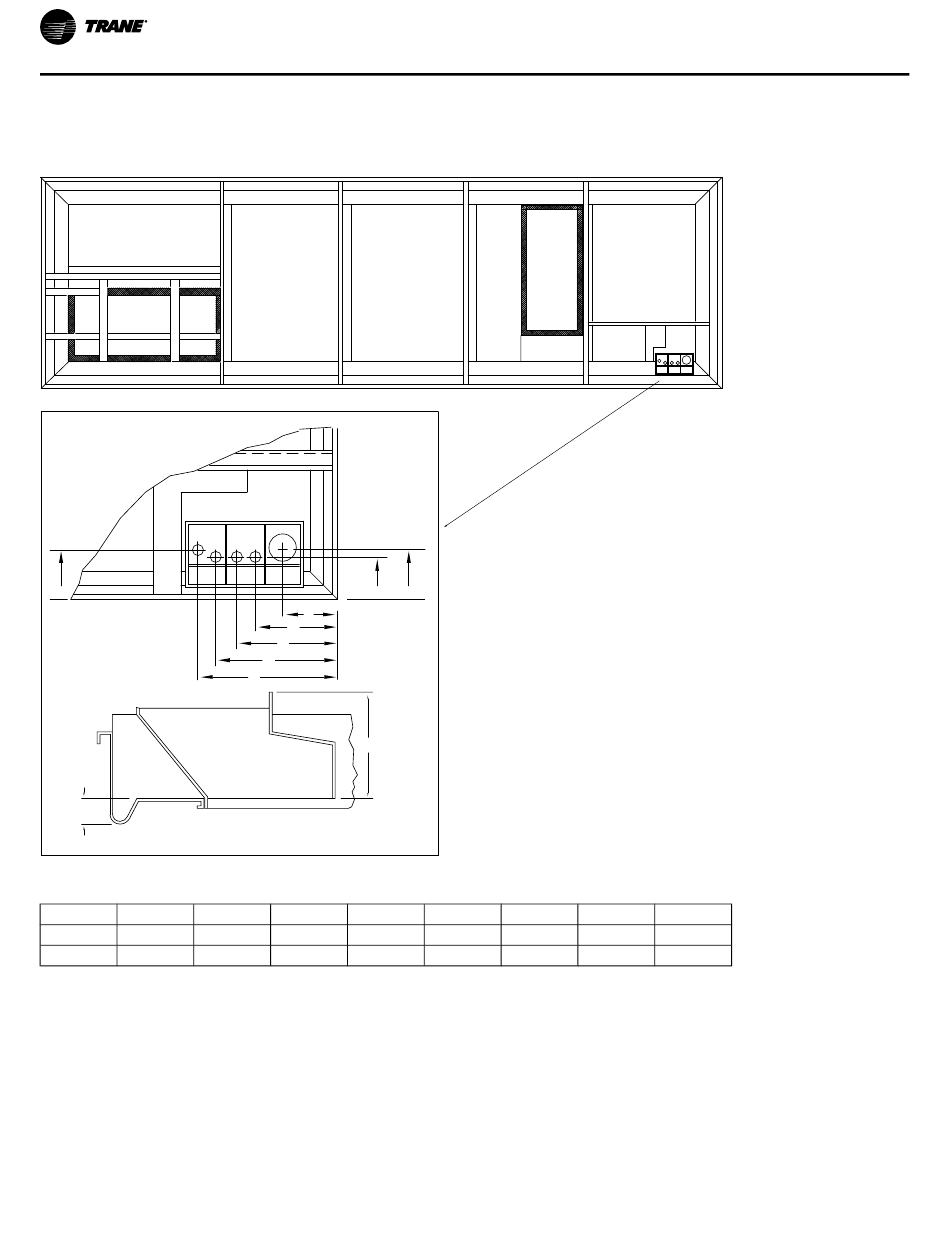

Figure 8. Electrical entrance dimensions, SAH_ cooling only units (20 to 75 ton)
Unit Base
A
B
F
1⅝"
Electrical Entrance End View
Table 9. Electrical entrance dimensions, SAH_ cooling only units (20 to 75 ton)
Nom. Tons F
20 - 30 8 7/32" 6 31/32"
40 - 75 8 7/8" 7 7/8"
24
E
C D
G L
K
J
H
M
N
5⅛"
G H J
15 21/32" 13 21/32"
17 7/8" 15 7/8"
Legend
A, B, C, D = 1⅛" diameter hole for field-installed control
wiring
E = 4⅛" or 5⅝" diameter hole for main power wiring
(Remove the 4⅛" hole plate when 5⅝" access is required)
Note:
4⅛" diameter hole on 20-55T units only
4⅛" and 5⅝" diameter hole on 60-75T units only
K L M
9 17/32" 8 1/2" 18 1/16"
9 29/32" 10 3/16" 20 13/32"
Electrical Entrance
N
19 9/16"
22 5/32"
