Pressure Drop Tables - Trane IntelliPak 1 with Symbio 800 Installation, Operation And Maintenance Manual

Commercial packaged rooftop air conditioners with vav or szvav controls and eflex/edrive
Hide thumbs
Table of Contents

Advertisement

Unit Start-up

Pressure Drop Tables

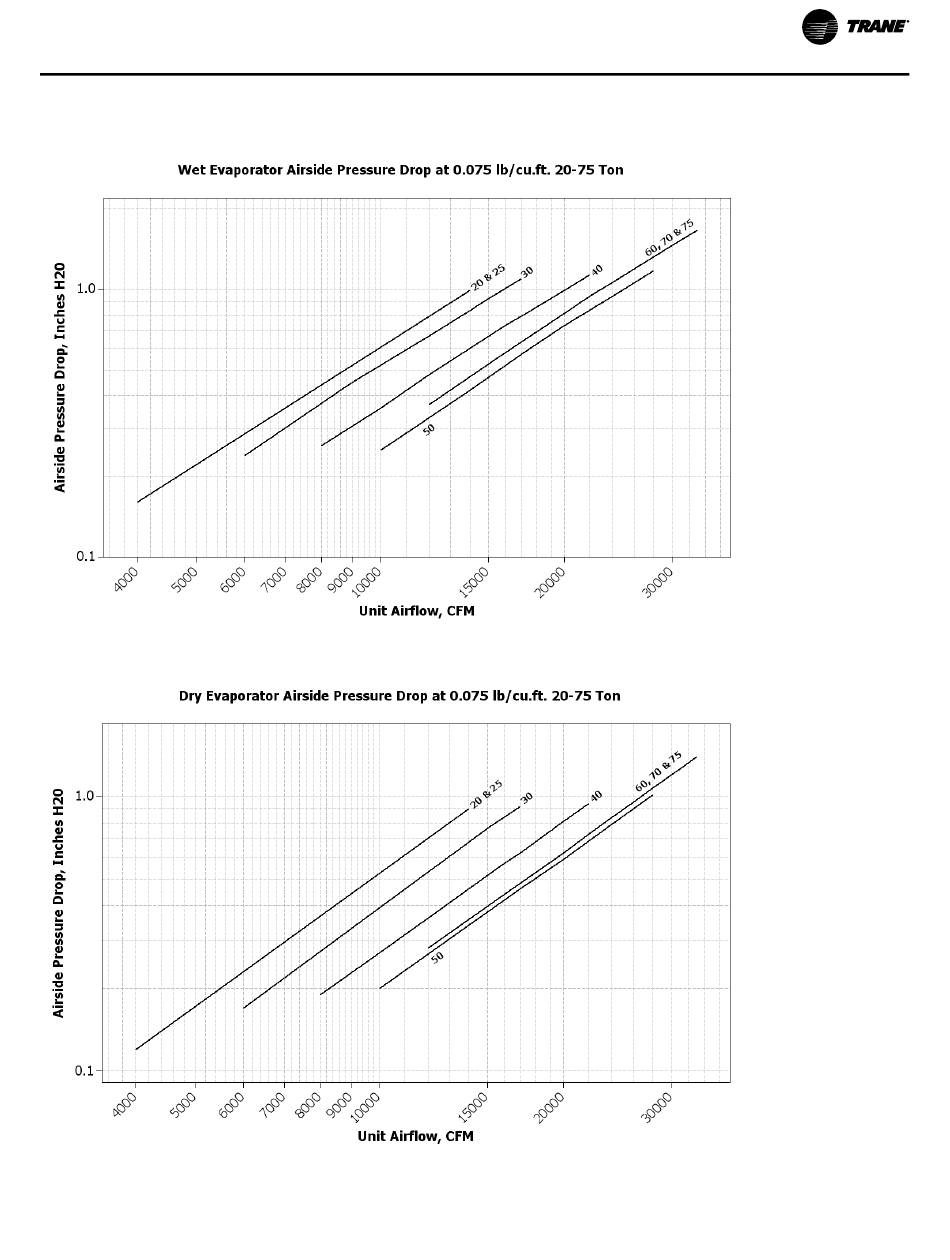

Figure 63. Wet airside pressure drop at 0.075 lb/cu.ft. 20 to 75 ton evaporator coil
Figure 64. Dry airside pressure drop at 0.075 lb/cu.ft. 20 to 75 ton evaporator coil
RT-SVX072D-EN
89
