Unit Start-up

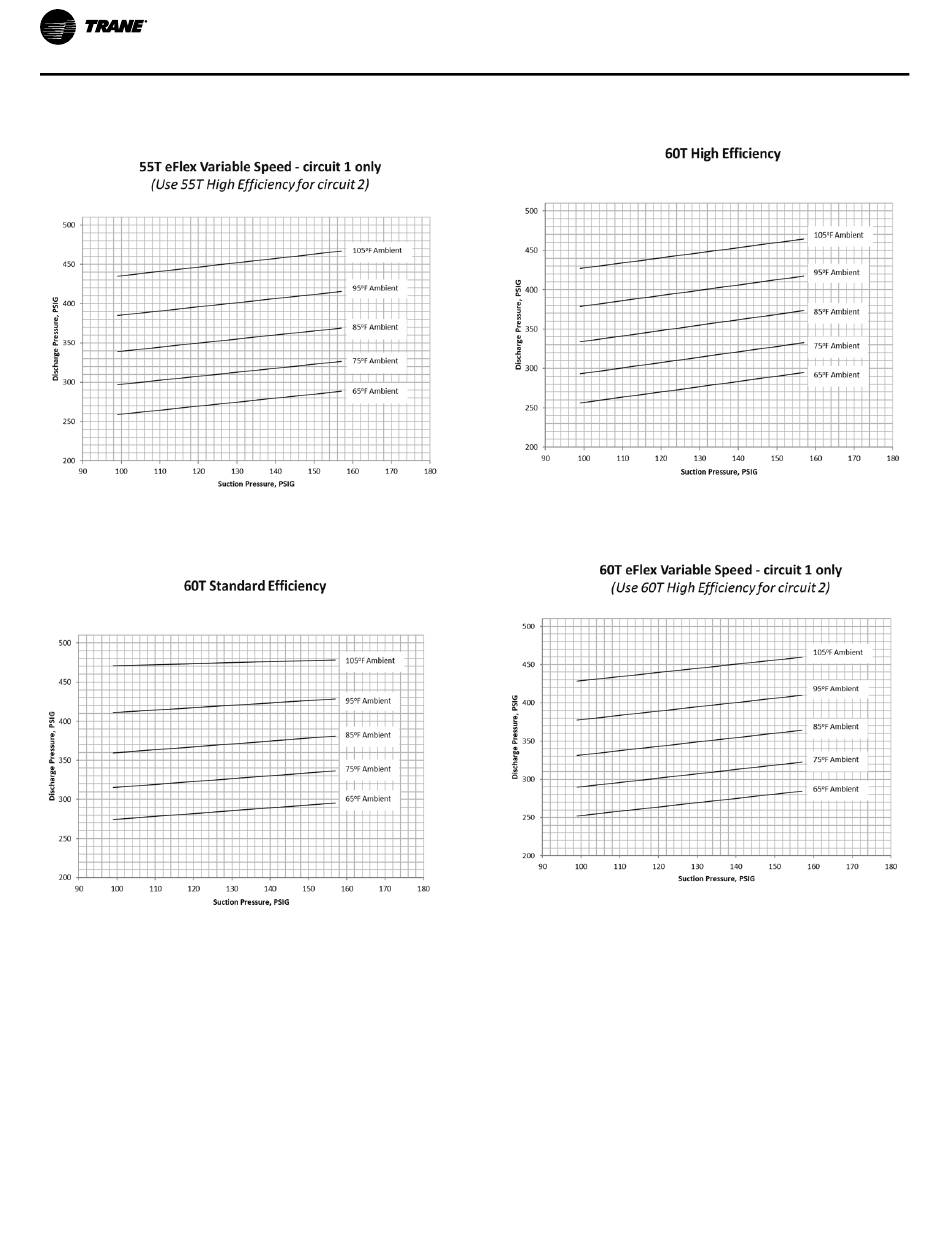

Figure 83. 55 ton eFlex variable speed—circuit 1
operating pressure curve (all compressors and
condenser fans ON)
Figure 84. 60 ton standard efficiency operating
pressure curve (all compressors and condenser fans
ON)
104
Figure 85. 60 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
Figure 86. 60 ton eFlex variable speed—circuit 1 only
operating pressure curve (compressor at 100% and all
condenser fans ON).
RT-SVX072D-EN
