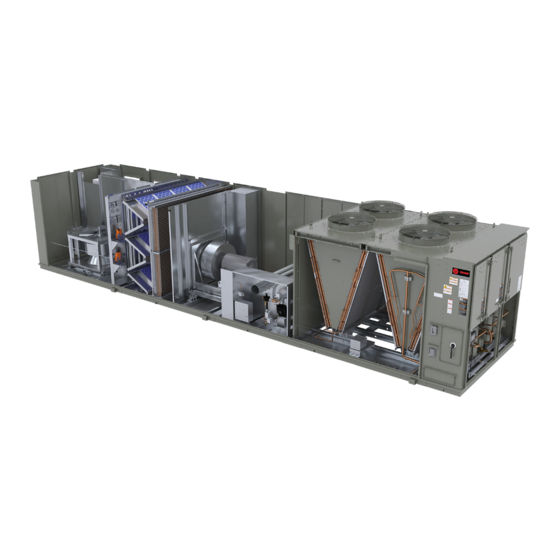

INTELLIPAK
Commercial Single-Zone Rooftop Air
Conditioners with CV or VAV Controls
Models
"9" and later Design Sequence
SAHF -*20, -*25, -*30, -*40, -*50, -*55, -*60, -*70, -*75
SEHF -*20, -*25, -*30, -*40, -*50, -*55, -*60, -*70, -*75
SFHF -*20, -*25, -*30, -*40, -*50, -*55, -*60, -*70, -*75
SLHF -*20, -*25, -*30, -*40, -*50, -*55, -*60, -*70, -*75
SSHF -*20, -*25, -*30, -*40, -*50, -*55, -*60, -*70, -*75
SXHF -*20, -*25, -*30, -*40, -*50, -*55, -*60, -*70, -*75
"2" and later Design Sequence
SXHG -*90, -*11, -*12, -*13
SFHG -*90, -*11, -*12, -*13
SSHG -*90, -*11, -*12, -*13
With 3-D
TM
* indicates C or F 20-75; D 90-130 tons
© 2006 American Standard Inc. All rights reserved
Installation
Operation
Maintenance
Library
Product Section
Product
Model
Literature Type
Sequence
Date
File No.
Supersedes
SEHG -*90, -*11, -*12, -*13
SLHG -*90, -*11, -*12, -*13
Scroll Compressors
®
Rooftop Air Conditioning (Comm. SZ, 20 - 130 Tons)
SAH_, SEH_, SFH_, SLH_, SSH_, SXH_
Installation/Operation/Maintenance
- Units whose model numbers
have a "2" in digit 20 are certified
by the Canadian Standards
Association (CSA).
Trane has a policy of continuous product and product data improvement and
reserves the right to change design and specifications without notice. Only
qualified technicians should perform the installation and servicing of
equipment referred to in this publication.
RT-SVX10E-EN
Service Literature
Unitary
February 2007
SV-UN-RT-RT-SVX10E
RT-SVX10E-EN 10/06
- Units whose model numbers
have a "1" in digit 20 are certified
by Underwriters Laboratory.
10E
