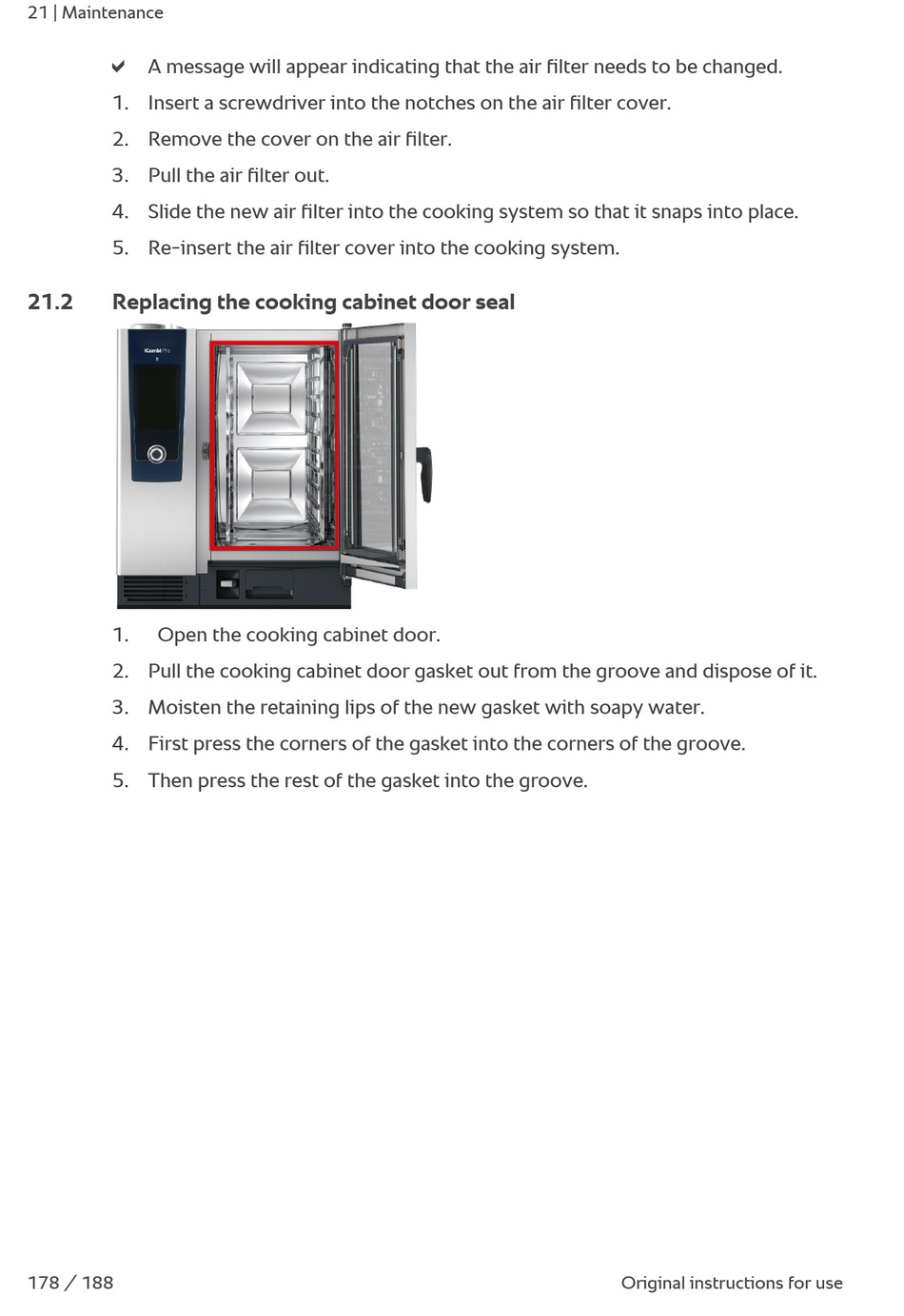

Replacing The Cooking Cabinet Door Seal - Rational iCombi Pro Original Instructions For Use

21 | Maintenance
a
A message will appear indicating that the air filter needs to be changed.
1. Insert a screwdriver into the notches on the air filter cover.
2. Remove the cover on the air filter.
3. Pull the air filter out.
4. Slide the new air filter into the cooking system so that it snaps into place.
5. Re-insert the air filter cover into the cooking system.
21.2

Replacing the cooking cabinet door seal

1. Open the cooking cabinet door.
2. Pull the cooking cabinet door gasket out from the groove and dispose of it.
3. Moisten the retaining lips of the new gasket with soapy water.
4. First press the corners of the gasket into the corners of the groove.
5. Then press the rest of the gasket into the groove.
178 / 188 Original instructions for use
