930 Compact IC Flex Oven/ChS (2.930.2200)
3 Inserting the connecting piece
Clean the sealing surface of the connecting piece with ethanol
￭
using a lint-free cloth.
Insert the connecting piece into the suppressor drive so that con-
￭
nector 1 is on top and the three pins of the connecting piece fit
into the corresponding recesses on the suppressor drive.
4 Attaching the union nut
Tighten the union nut on the thread of the suppressor drive by hand
(do not use any tools).
Inserting small rotors
You need the adapter (6.2842.020) in order to insert a small rotor into the
suppressor drive.

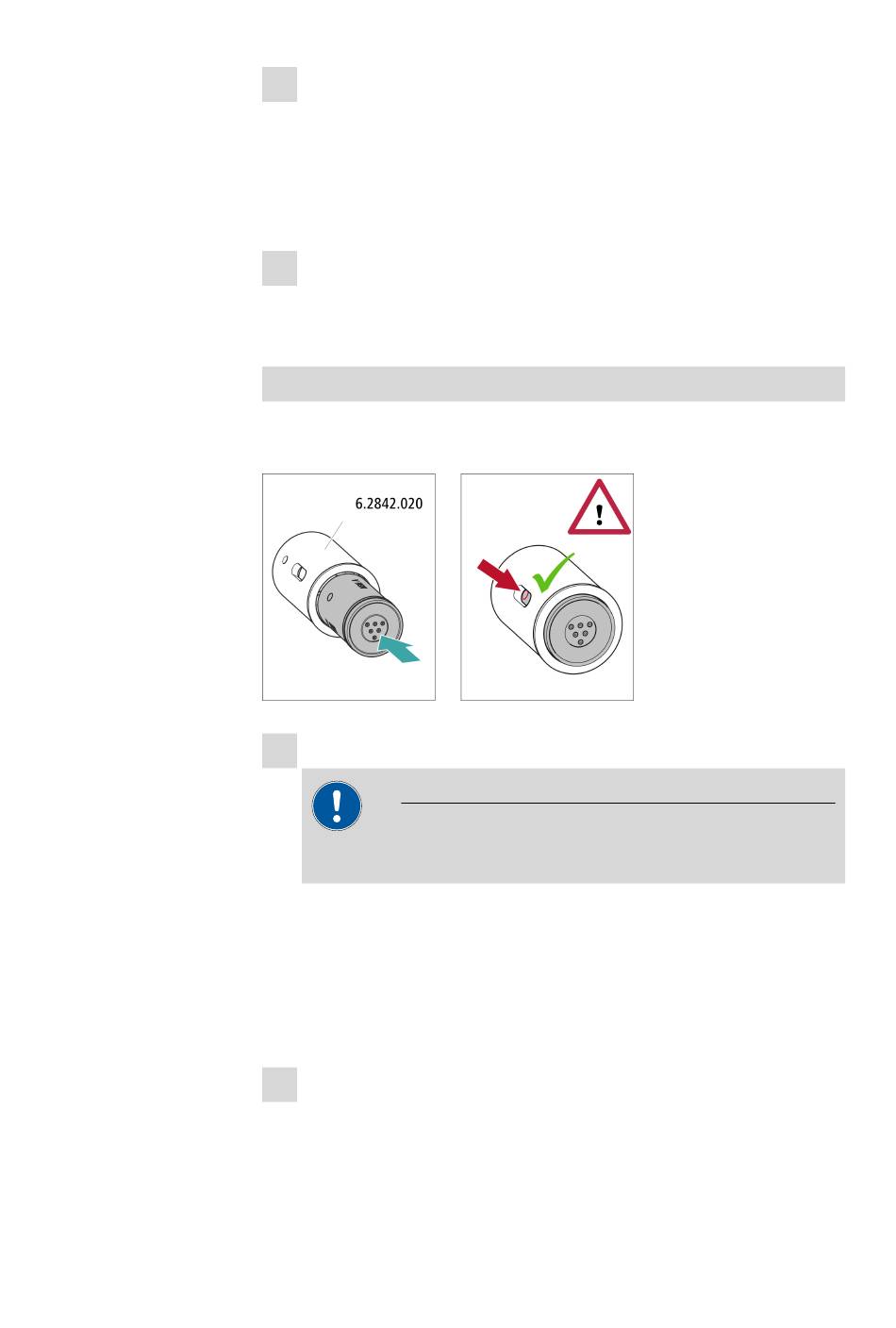

1 Inserting the rotor into the adapter
CAUTION
An incorrectly inserted rotor may be destroyed during start-up.
Clean the sealing surface of the rotor with ethanol using a lint-
￭
free cloth.
Insert the rotor into the adapter so that the tubing connections
￭
on the rear of the rotor fit into the corresponding recesses inside
the adapter and one of the three holes of the rotor is visible in the
slot of the adapter.
2 Inserting the adapter
Insert the adapter into the suppressor drive just like a large rotor (see
"Inserting large rotors", page 30).
