Install the Slot Segment Magazines
12. Check the position of the magazines to make sure they are all positioned flush
against the side of the library (Figure 39).
Caution:
Make sure none of the magazines is positioned at an outward angle. The
magazines need to remain flat against the inside of the library or they
will interfere with operations and could cause damage to the library and
your data tapes.
13. This concludes the installation of the magazines. Next you will need to replace the
robotic rack assembly.
!
If you have a rail-mounted robotic rack assembly, proceed to Replace the Rail-
Mounted Robotic Rack Assembly on page 42.
!
If you have a carbon-top robotic rack assembly, proceed to Replace the
Carbon-Top Robotic Rack Assembly on page 43.

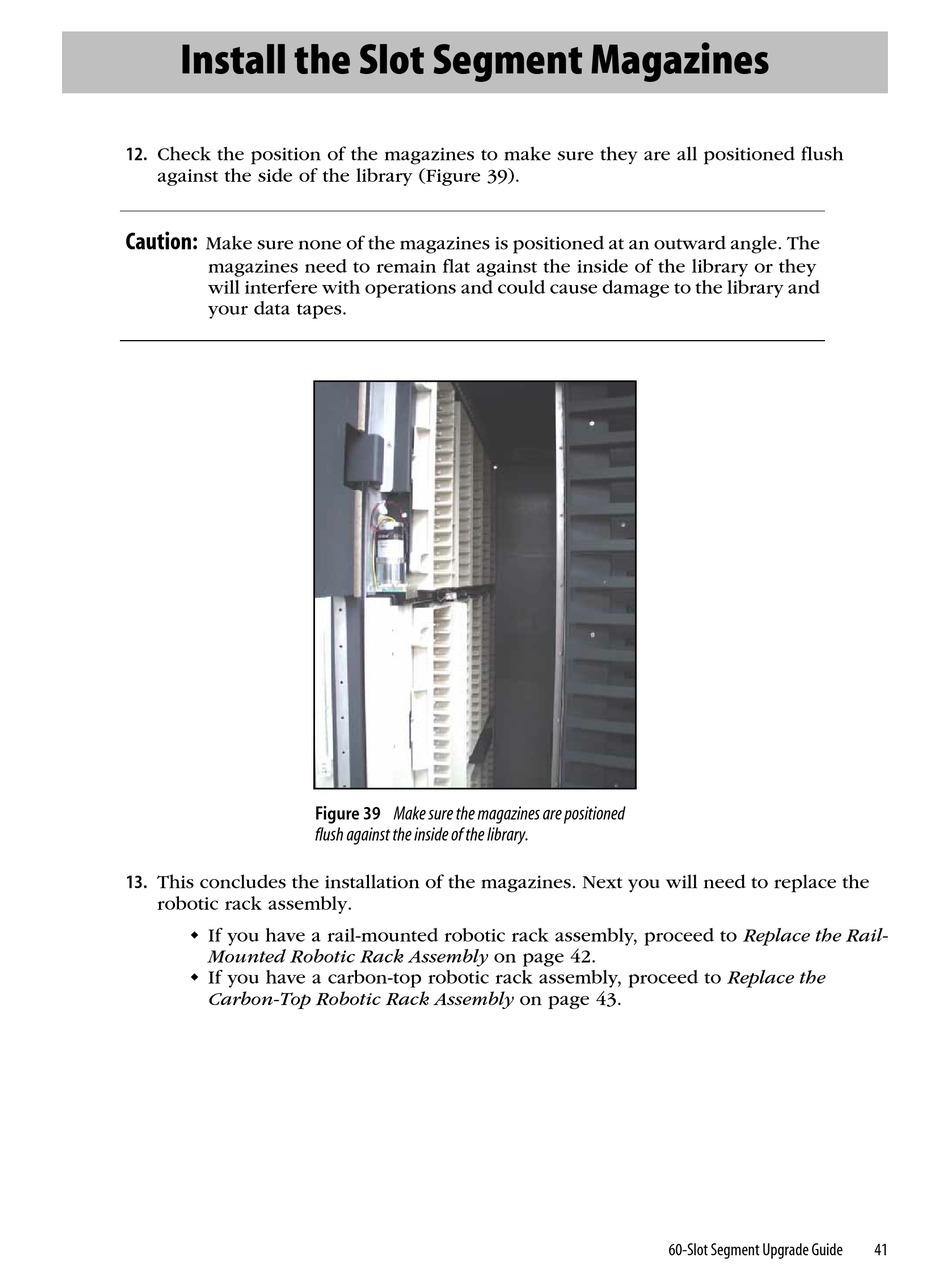

Figure 39 Make sure the magazines are positioned
flush against the inside of the library.
60-Slot Segment Upgrade Guide 41
