11. Check the position of the magazines to make sure they are all positioned flush

against the side of the library.

Caution:

Make sure none of the magazines is positioned at an angle. The

magazines need to remain flat against the inside of the library or they

will interfere with operations and could cause damage to the library and

your data tapes.

12. This concludes the installation of the magazines. Next you will need to replace the

robotic rack assembly.

If you have a rail-mounted robotic rack assembly, proceed to Replace the Rail-

Mounted Robotic Rack Assembly on page 21.

If you have a carbon-top robotic rack assembly, proceed to Replace the

Carbon-Top Robotic Rack Assembly on page 23.

60-Slot Segment Upgrade Guide

Install the Magazines

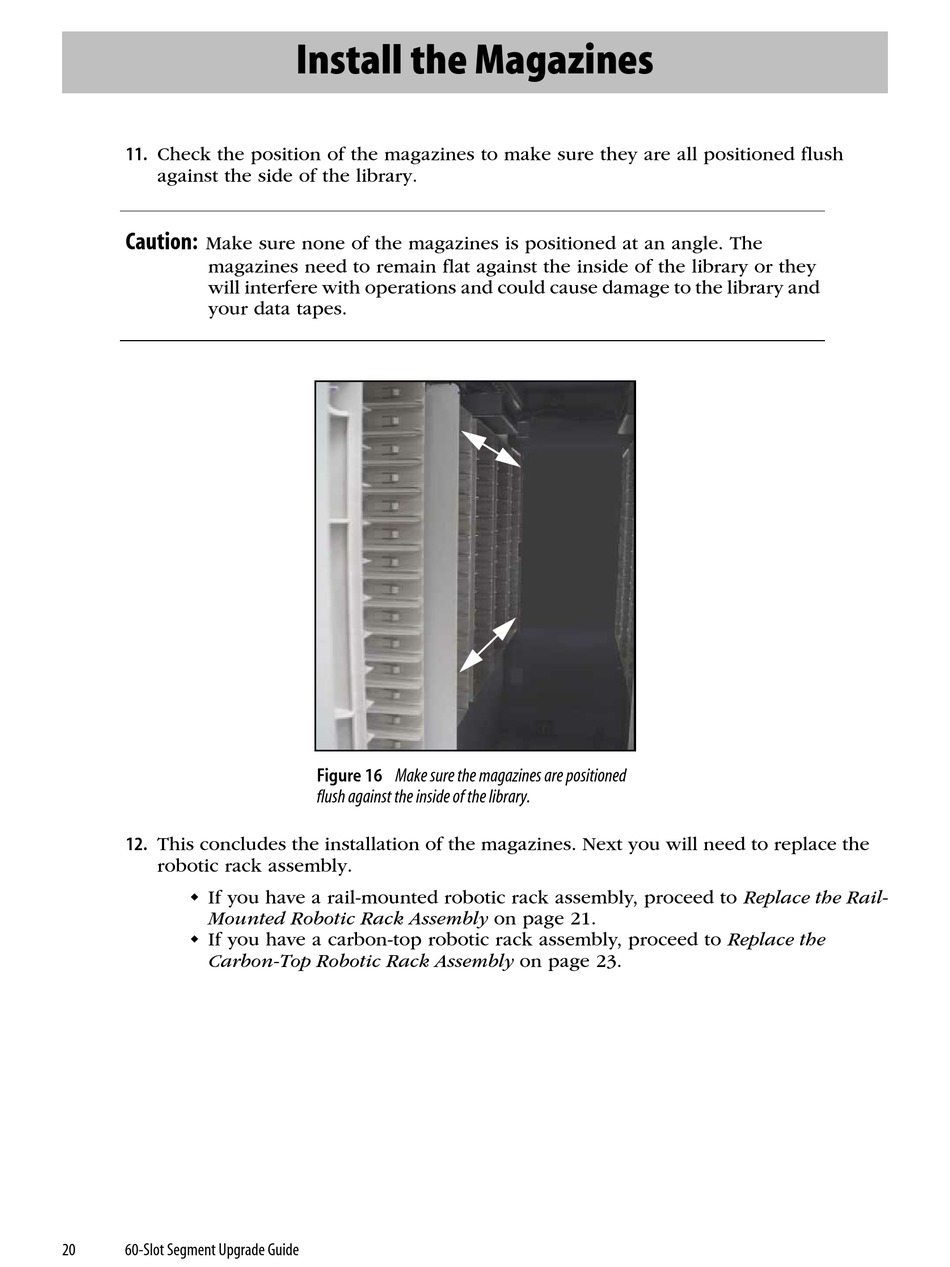

Figure 16 Make sure the magazines are positioned

flush against the inside of the library.
