6. Pick up the magazine on the far right with the red label.
Note:
When installing each magazine, make sure the slot marked with the
number 1 is at the top of the magazine before placing the magazine into
the library.
7. Place the magazine into the library, reaching it into the red-coded magazine niche.
!
When installing on the left side of the library, install the first magazine in the
niche closest to the back of the library.
!
When installing on the right side of the library, install the first magazine in the
niche closest to the front of the library.
8. Clip the magazine firmly into place so that the large clip on the side of the magazine
catches on the clip in the magazine niche (Figure 36).
Note:
You may remove the library's rear panel to obtain easier access. Simply
be sure to replace the rear panel after the upgrade is complete and before
returning the library to power.
!
For assistance with rear panel removal, call Spectra Logic Technical Support at
800-227-4637 or at 303-449-6444, extension 3175.
38 60-Slot Segment Upgrade Guide
Install the Magazines

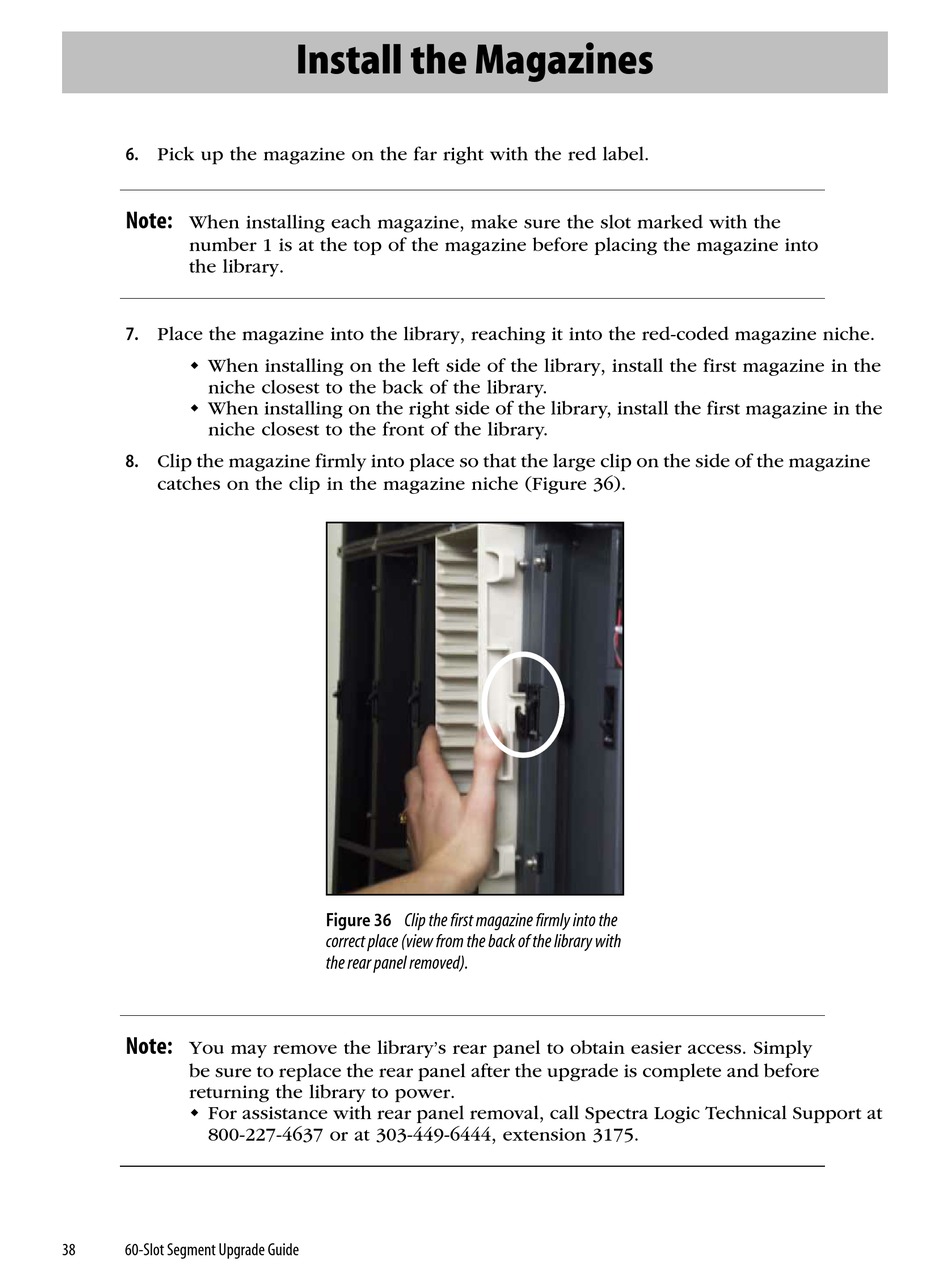

Figure 36 Clip the first magazine firmly into the
correct place (view from the back of the library with
the rear panel removed).
