4. Line up the new magazines on a table in the order to be installed (Figure 12).
Organize the magazines as follows:
!
On the far left, place the magazine with the blue label on top.
- This magazine has a long clip on the middle of both the right and left sides.
!
On the far right, place the magazine with the red label on top.
- This magazine has two tabs on the right side that are solid and without holes.
!
In the middle, place the two magazines with the yellow labels.
- The clips and tabs on the sides of these magazines are identical to each other.
BLUE

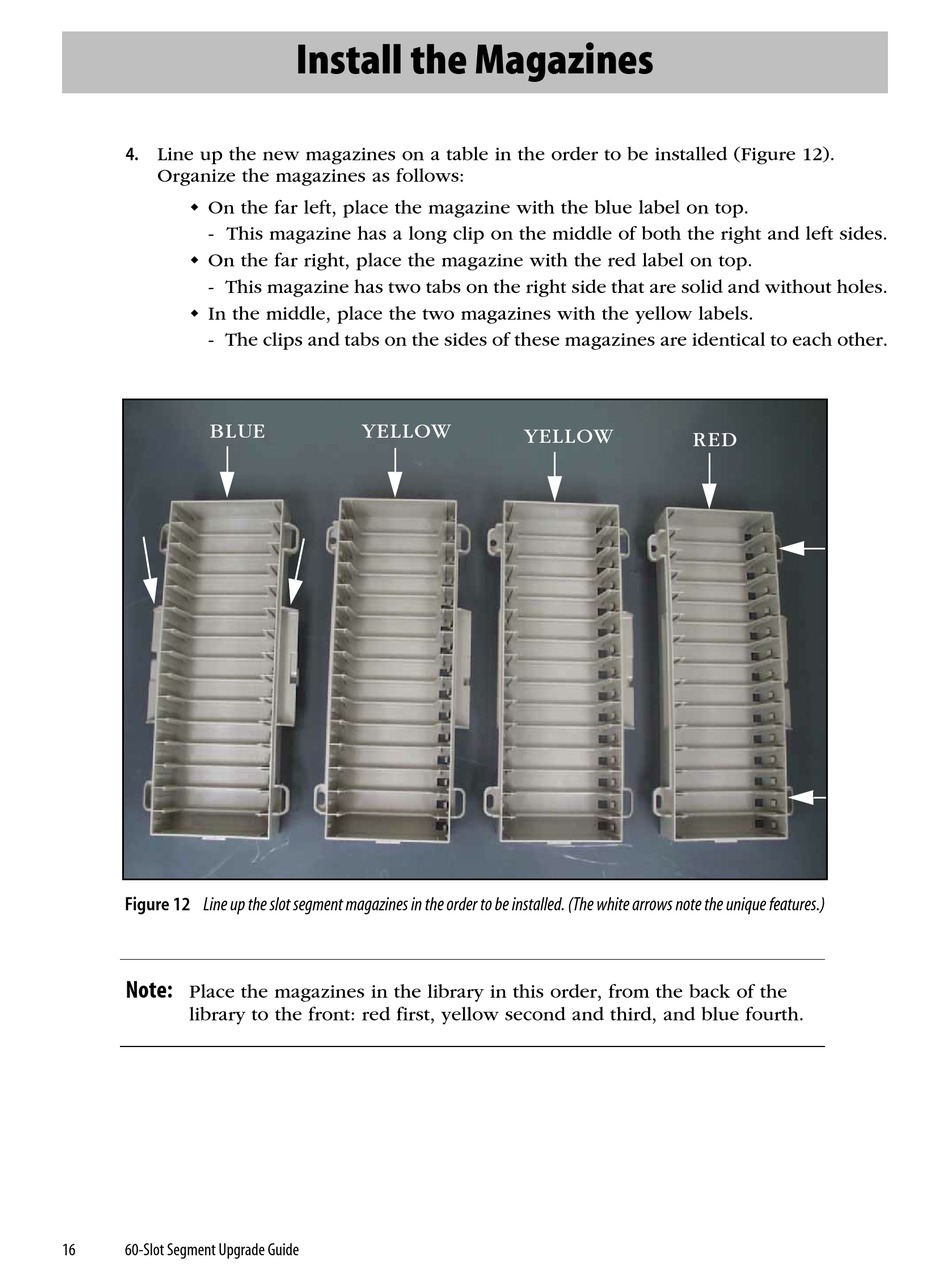

Figure 12 Line up the slot segment magazines in the order to be installed. (The white arrows note the unique features.)
Note:
Place the magazines in the library in this order, from the back of the
library to the front: red first, yellow second and third, and blue fourth.
16 60-Slot Segment Upgrade Guide
Install the Magazines
YELLOW
YELLOW
RED
