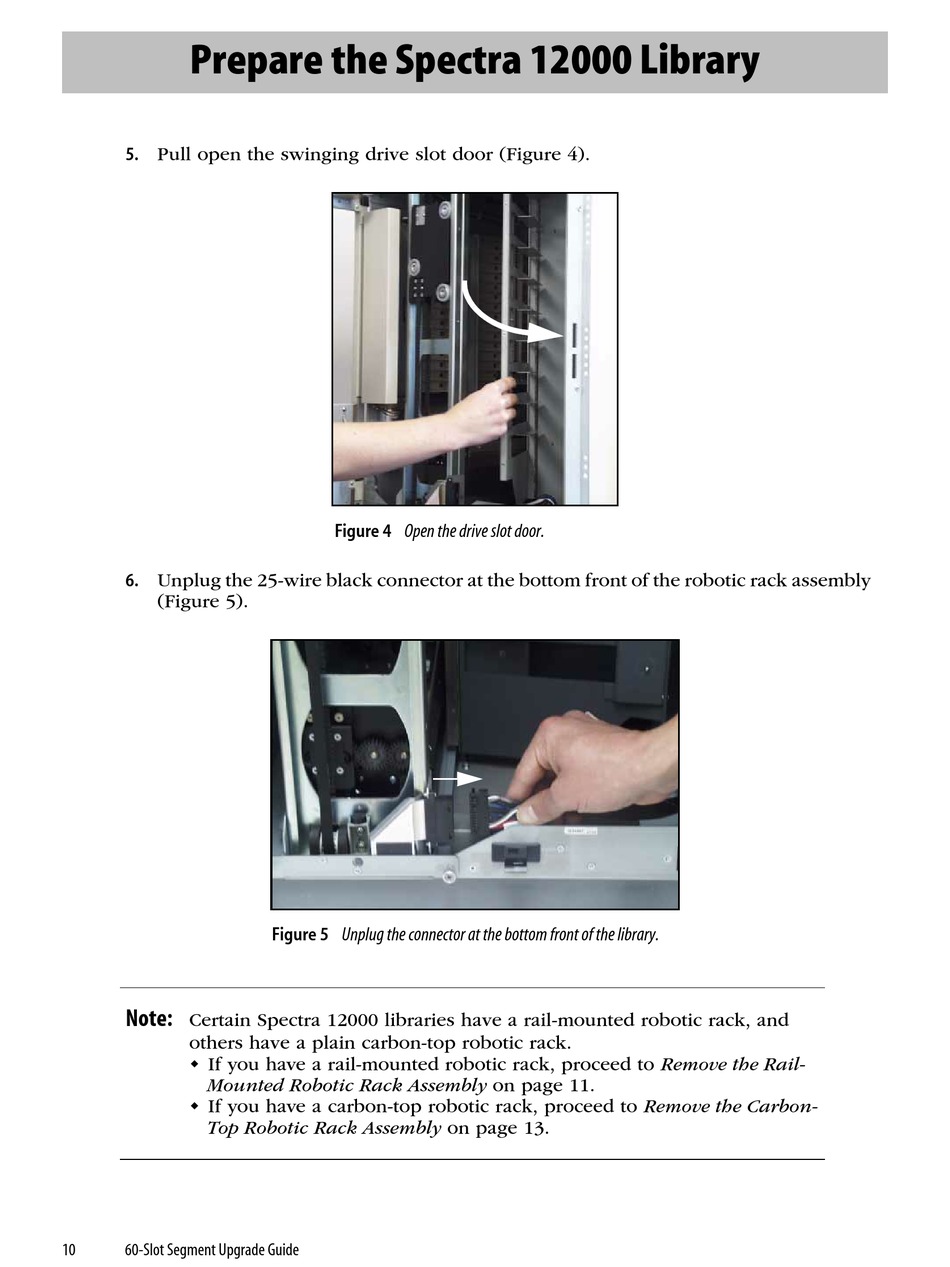

Prepare the Spectra 12000 Library
5. Pull open the swinging drive slot door (Figure 4).
6. Unplug the 25-wire black connector at the bottom front of the robotic rack assembly
(Figure 5).
Note:
Certain Spectra 12000 libraries have a rail-mounted robotic rack, and
others have a plain carbon-top robotic rack.
!
If you have a rail-mounted robotic rack, proceed to Remove the Rail-
Mounted Robotic Rack Assembly on page 11.
!
If you have a carbon-top robotic rack, proceed to Remove the Carbon-
Top Robotic Rack Assembly on page 13.
10 60-Slot Segment Upgrade Guide
Figure 4 Open the drive slot door.
Figure 5 Unplug the connector at the bottom front of the library.
