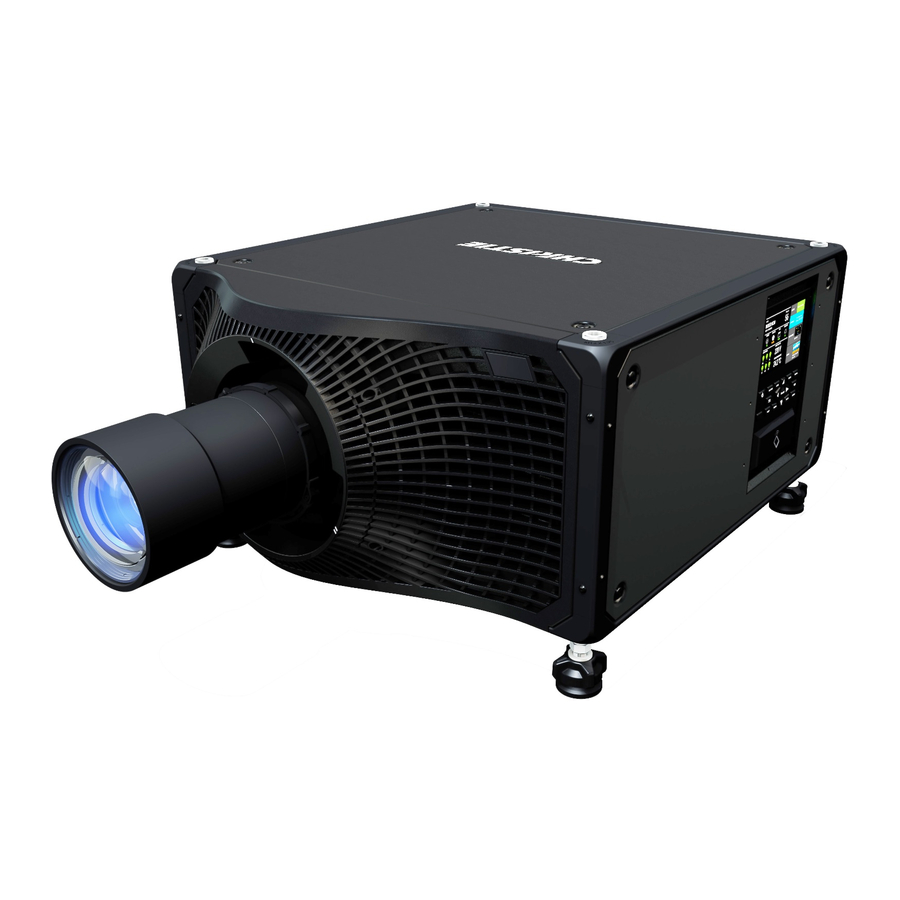

Christie Mirage SST Technical Reference

Hide thumbs Also See for Mirage SST:
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Reference
020-103005-03
Mirage SST
Serial Commands

Advertisement

Table of Contents
loading

Related Manuals for Christie Mirage SST

Summary of Contents for Christie Mirage SST

  • Page 1 Technical Reference 020-103005-03 Mirage SST Serial Commands...
  • Page 2 Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.

  • Page 3: Table Of Contents

    Communicating with Mirage SST........
  • Page 4 FIB–Christie Link Video Mode........
  • Page 5 Asynchronous messages......... . . 64 Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 6: Communicating With Mirage Sst

    Communicating with Mirage SST Understand the information and procedures for communicating with Mirage SST from a remote location. You can communicate with the projector through the RS232 IN port or the Ethernet port. When connecting the projector to a computer, use a direct connection. Docking ports can cause software upgrade failures.

  • Page 7: Technical Support

    Once you have connected your computer to either the RS232 IN port (depending on which standard is supported by your computer) or to the Ethernet port on Mirage SST, you can remotely access controls and image setups, issue commands or queries, and receive replies.

  • Page 8: Configuring The Rs232 Port

    7. Use the up and down keys to enter the name of the projector. 8. Select Enter. Understanding message format Commands sent to and from Mirage SST are formatted as simple text messages consisting of a three letter command code, an optional four letter subcode, and optional data. Source...

  • Page 9: Basic Message Structure

    (+) character to separate the code and subcode. If there is no subcode, the plus sign (+) is also omitted. In messages sent to Mirage SST that have a subcode, a space between the subcode and the first parameter (or special character) is optional.

  • Page 10: Special Characters For Text

    • Data in set messages to Mirage SST do not require padding with zeros. • Within each message, multiple parameters of data must be separated by one space character.

  • Page 11: Sample Messages And Their Meaning

    (ITP!L001 001 00002 "Gray Scale 16") (ITP!L001 001 00003 "Flat White") (ITP!L001 001 00004 "Flat Gray") (ITP!L000 001 00024 "Flare") (ITP!L111 "--END--") Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 12: What Is Sent In A Message

    The acknowledgment is returned after the message has been received and fully executed by Mirage SST (such as in the case of a source switch it is not sent until the switch is complete). If the message cannot be executed for some reason (such as invalid parameters, time-out, and so on) a NAK is returned instead (not-acknowledge).

  • Page 13: Error Messages

    = F0h when only the low byte is used = 240 Mirage SST collects all of the message bytes as defined in the first byte of the message, then creates its own checksum value for comparison with the checksum included in the controller’s message.

  • Page 14: Flow Control

    Mirage SST stores messages in a buffer until ready to process. However, if a series of messages is sent, Mirage SST may not be able to process them as fast as they arrive and the buffer becomes full. If this happens, Mirage SST sends the 13h (Xoff) code to instruct the controller (or any devices preparing to transmit) to cease transmission.

  • Page 15: Serial Api Commands

    Serial API commands The Mirage SST commands can be used to modify product settings. ADR–Projector Address Sets or queries the device address. This command also helps to identify where a response or asynchronous message originates from. Generally, this command is used for projectors that are daisy-chained together using the RS232 style communication.

  • Page 16: Alc-Ambient Light Correction

    1 = Enables auto power up Examples Turn off auto power: (APW 0) Turn on auto power: (APW 1) Related information PWR–Power (on page 50) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 17: Asu-Auto Setup

    Verify that RS232-IN is set to 115200 bits per second: (BDR+PRTA?) Result: (BDR+PRTA!006 "115200") Set the baud rate on port A to 115200 bits per second: (BDR+PRTA 6) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 18: Bgc-Gamma Function

    (BGC 2) Result: (GAM 2600) BST–Built-in Self Test Performs self-checks in Mirage SST that can be safely executed either in standby, on, or cool down mode. Do not execute this command while Mirage SST is warming up. Commands Command Description...
  • Page 19 Run all tests successfully: (BST 0) Result: (BST!000 "--Passed--") Example of failed tests within the All Tests test suite: (BST 0) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 20: Cca-Color Adjustment

    The valid range for each value red> coordinates, scaled by a factor of 10,000. depends on which of the red/ Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 21 This command is only available if the video CCA+BOFW <blue of white electronics are on and Custom is selected. saturation value> (Saved value) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 22 Change the x-coordinate of the custom color table to 0.6753: (CCA+RDCX 6753) Save the current color primary settings as the new calibrated defaults: (CCA+SAVE) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 23: Cle-Color Enable

    4 = YCbCr HDTV—expanded range 5 = YCbCr JPEG—full range 6 = YCbCr UHDTV (ITU-R BT.2020) 7 = YCbCr UHDTV (ITU-R BT.2020)—full range Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 24: Cuc-1D Color Uniformity

    To take measurements of each of the color primaries at points (15, 2, 5, 8, and 16), use a spectroradiometer such as the PR-655. Once the measurements are taken, enter the values into the projector using this serial command. For more information on color uniformity, refer to Mirage SST User Guide (P/N: 020-102993-XX).

  • Page 25: Ddd-Disable Dual-Link Dvi Inputs

    1 = Disables Dual-Link support command is only available if video electronics are on. (Saved value) Examples Enable Dual-Link support: Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 26: Def-Factory Defaults

    Serial API commands (DDD 0) Disable Dual-Link support: (DDD 1) DEF–Factory Defaults Resets Mirage SST to its factory default values. Note the following about this command: • Resets the network settings to be DHCP enabled. • Deletes all user profiles, warps, and blends.

  • Page 27: Drk-3D Dark Interval

    (Default) electronics are on. (Saved value) 51 to 100 = Sharpens the image Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 28: Ebb-Black Level Blending

    (EBB+SLCT 2) EBL–Edge Blending Selection Selects the edge blend to use on the projector. By default, edge blends are not on the projector. Use Christie Twist Pro, Twist Premium, or Mystique to add edge blends to the projector. Commands Command...

  • Page 29: Edo-Edid Override

    Configures which EDID is presented using inputs that support EDIDs (such as DisplayPort, HDMI, DVI, and so on). Use this command to configure what Mirage SST advertises regarding the type of signals it accepts. This command does not need to be set to accept a particular type of signal.

  • Page 30: Eme-Enable Asynchronous Serial Messages

    13 = Convergence Border & Cross (Multi-color) 14 = Convergence Border & Square (Green) 15 = Convergence Border & Square (Red) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 31 255 = Off Examples Enable the Flat Black test pattern: (ETP 0) Enable the Edge Blend Grid (Green) test pattern: (ETP 239) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 32: Evt-Event Manager

    (EVT!000 "2013-03-17 04:47:18.340" "OK" "Setting Time to 06:47:17") (EVT!"--END--") Retrieve all events from a specific point in time until now: (EVT "2013-03-17 04:01:13") Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 33: Fcs-Lens Focus Position Adjustment

    0. When (Default) enabled, other inputs (on the HBMIC) are 1 = Enables Christie Link video input inactive. Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 34: Fmd-Film Mode Detect

    Serial API commands Examples Disable Christie Link video input on the option card in slot 1: (FIB+SLTA 0) Enable Christie Link video input on the option card in slot 2: (FIB+SLTB 1) Disable Christie Link video input on the option card in slot 0:...
  • Page 35 (FRD+TIME!"33.33 (L), 41.67 (R)") Set the frame delay to 1.1 frames: (FRD 1100) Set the frame delay to 2.25 frames: Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 36: Frz-Image Freeze

    This command is only available if video electronics are on. (Saved 1 (Default) value) Examples Set the base gamma curve function to 2.6: Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 37: Gio-General Purpose Input/Output

    Controls or monitors the state of the general purpose inputs and outputs. The pins reserved for 12V and ground cannot be read, set, or configured. For a mapping of the IO pins to the physical connector pins, refer to the Mirage SST User Guide (P/N: 020-102993-XX). Commands...

  • Page 38: Hfr-High Frame Rate

    12 = Horizontal Ramp 13 = Vertical Ramp 14 = Diagonal Ramp 15 = Square Grid 16 = Diagonal Grid Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 39 Defines the slope used for the Horizontal Ramp, Vertical 1 to 5 Ramp, and Diagonal Ramp test patterns. 1 (Default) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 40: Ken-Keypad Enable

    Get the current wired jack enabled state: (KEN+WIRE?) Disable the front IR sensor: (KEN+FRNT 0) Disable the rear IR sensor: (KEN+REAR 1) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 41: Las-Light & Output Settings

    0 to 1000, where 1000 = 100% drive level sent to the laser illumination source is 1000 (Default) reduced based on the maser laser power set in LAS+POWR. Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 42: Lcb-Lens Motor Calibration

    LCB+ZOOM 1 Calibrates the zoom motor. Examples Start calibration: (LCB 1) Move the lens back to the home position: (LCB+HOME) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 43: Lho-Lens Horizontal Position Adjustment

    Starts and stops the horizontal -1 = Moves the display left motor. 0 = Stops the motor 1 = Moves the display right Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 44: Loc-Localization Settings

    0 = English (Default) 1 = French 2 = German 3 = Spanish 4 = Italian 5 = Chinese (Simplified) 6 = Japanese Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 45: Loe-Video Loop Out Enable

    (Saved value) Examples Disable video loop out: (LOE 0) Enable video loop out: (LOE 1) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 46: Lvo-Lens Vertical Position Adjustment

    5 = Center right 6 = Bottom left 7 = Bottom center 8 = Bottom right Examples Get current menu position preset: Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 47: Net-Network Setup

    NET+MAC0? Returns the MAC address of the Ethernet port. (Read- — only) NET+PORT? Returns the TCP port used for the Christie serial 1024 to 49151 (with some protocol over Ethernet. (Read-only) exceptions) 3003 = Reserved on the projector and cannot be...

  • Page 48: Osd-On Screen Display

    Returns the maximum number of columns for the — display. (Read-only) OTR+VRES? Returns the maximum number of rows for the display. — (Read-only) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 49: Png-Ping

    Selects local profile x and applies the profile to the projector. 0 = Default Selecting an empty profile does not do anything. 1 = <custom 1> Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 50: Pwr-Power

    Return the power setting for the projector: (PWR?) (PWR!000 "Power Off") Turn off the projector: (PWR 0) Turn on the projector: (PWR 1) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 51: Ral-Remote Access Level

    Overrides the SMPTE 352M payload for HBMIC-SDI inputs. This setting applies to all HBMIC-SDI inputs in the system (such as, not per input). Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 52: Shu-Shutter

    Opens or closes the shutter. 0 = Opens the shutter 1 = Closes the shutter (Default) Examples Get the state of the shutter: Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 53: Sin-Select Input

    Use one port to display an image: (SIN+PORT 1) Use four DDICs to display a Four-Port Quadrant image: (SIN+PORT 4) Result: Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 54: Snm-Snmp Configuration

    Set the SNMP read community name to public: (SNM+READ "public") Configure one of the client IPs to receive traps: (SNM+TIP1 "192.168.1.25") Disable power state traps: (SNM+POWR 0) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 55: Sor-Screen Orientation

    (SPS+COLR 3) SST–Status Returns status information about the projector in read-only mode. For more information about the status groups, items, and their states, see the Mirage SST Status System Guide (P/N: 020-103007-XX). Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright ©...

  • Page 56: Szp-Resize Presets

    By default, the projector maintains the aspect ratio and scale to either full width or full height (whichever edge is reached first). 16:9 content is scaled to full height with pillar boxes. Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 57: Tdd-3D Sync Delay

    Out is set to Emitter. Positive value = Configures the sync pulse to be slightly after the transition Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 58: Tdm-3D Mode

    Automatically determine whether to enable 3D processing or not: (TDM 1) Configure the projector to enable 3D processing where possible: (TDM 2) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 59: Tdn-Invert 3D Input

    Return the 3D Sync Out value on main video: (TDO?) Set 3D Sync Out to Off on main video: (TDO 0) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 60: Tdt-3D Test Pattern

    1 = Turns on video thumbnails (Default) Examples Disable the video thumbnails: (THM 0) Enable the video thumbnails: (THM 1) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 61: Tmd-Time And Date

    = String value "<password>" password = String value Examples Display the current logged in user and their access level: (UID?) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 62: Ust-Enable Ust Lens

    2D keystone is applied. 1 = Enables gain compensation (Default) WRP+SLCT?L Retrieves a list of available warp maps. — (Read-only) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 63: Zom-Lens Zoom Position Adjustment

    Get the current minimum and maximum values for the zoom axis: (ZOM?m) Result: (ZOM!M-2400 900) Move the lens to position 500 for the zoom motor: (ZOM 500) Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.

  • Page 64: Asynchronous Messages

    • An OK or warning state to an error state. (65535 00000 ERR00000 "System Error: (SST+VERS?003) Image Processor HW Version = Detection Fault") Mirage SST Technical Reference–Serial Commands 020-103005-03 Rev. 1 (01-2021) Copyright © 2021 Christie Digital Systems USA, Inc. All rights reserved.
  • Page 65 Corporate offi ces Worldwide offi ces Christie Digital Systems USA, Inc. Africa Columbia Mexico United States (Arizona) ph: 714 236 8610 ph: +27 (0)11 510 0094 ph: +57 (318) 447 3179 ph: +52 55 4744 1790 ph: 602 943 5700...
