Chapter 3: System Setup

Installing a LAN Module

The system is equipped with 4 LAN module bays. To install a LAN module,

please follow the instructions below.

Please correctly follow the below instructions and noted

items to avoid making unnecessary damages. Make sure

the power supply is switched off and disconnected from the

CAUTION!

power sources before replacing or adding LAN modules to

prevent electric shock or system damage.

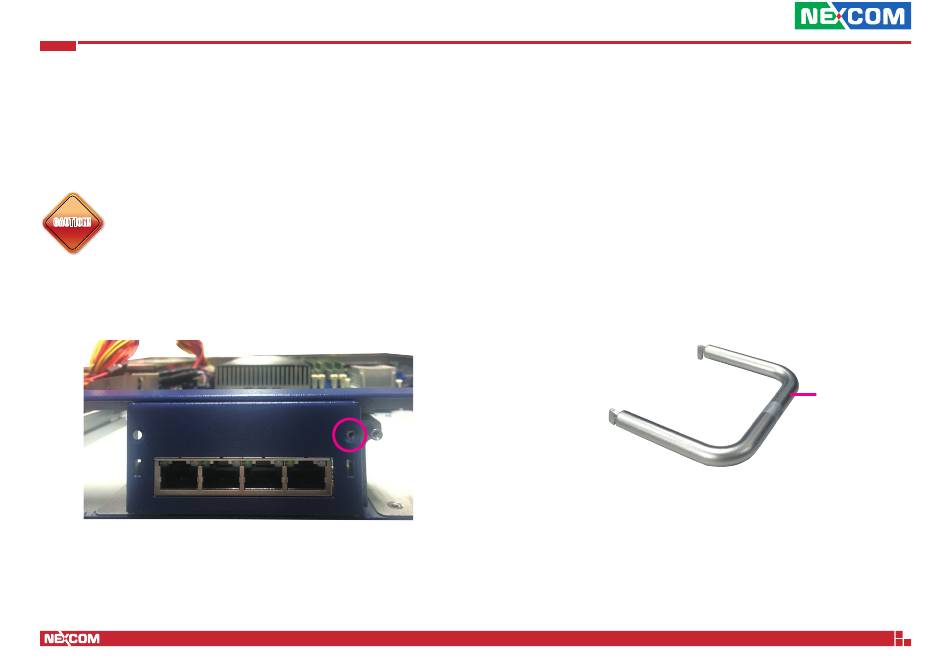

1. Remove the screw on the LAN module then put it in a safe place for

later use.

2. Use the handle provided, and insert the handle into the two holes on

the LAN module.

Handle
