Advanced menu
Interface test
(Hex-Dump)

Printout in Hex-Dump

ASCII80 ASCII136
Back Next
1 2 3 4
H-Dump PMS
Back Next
1 2 3 4
Offline H-Dump
Park LF/FF
1 2 3 4
98

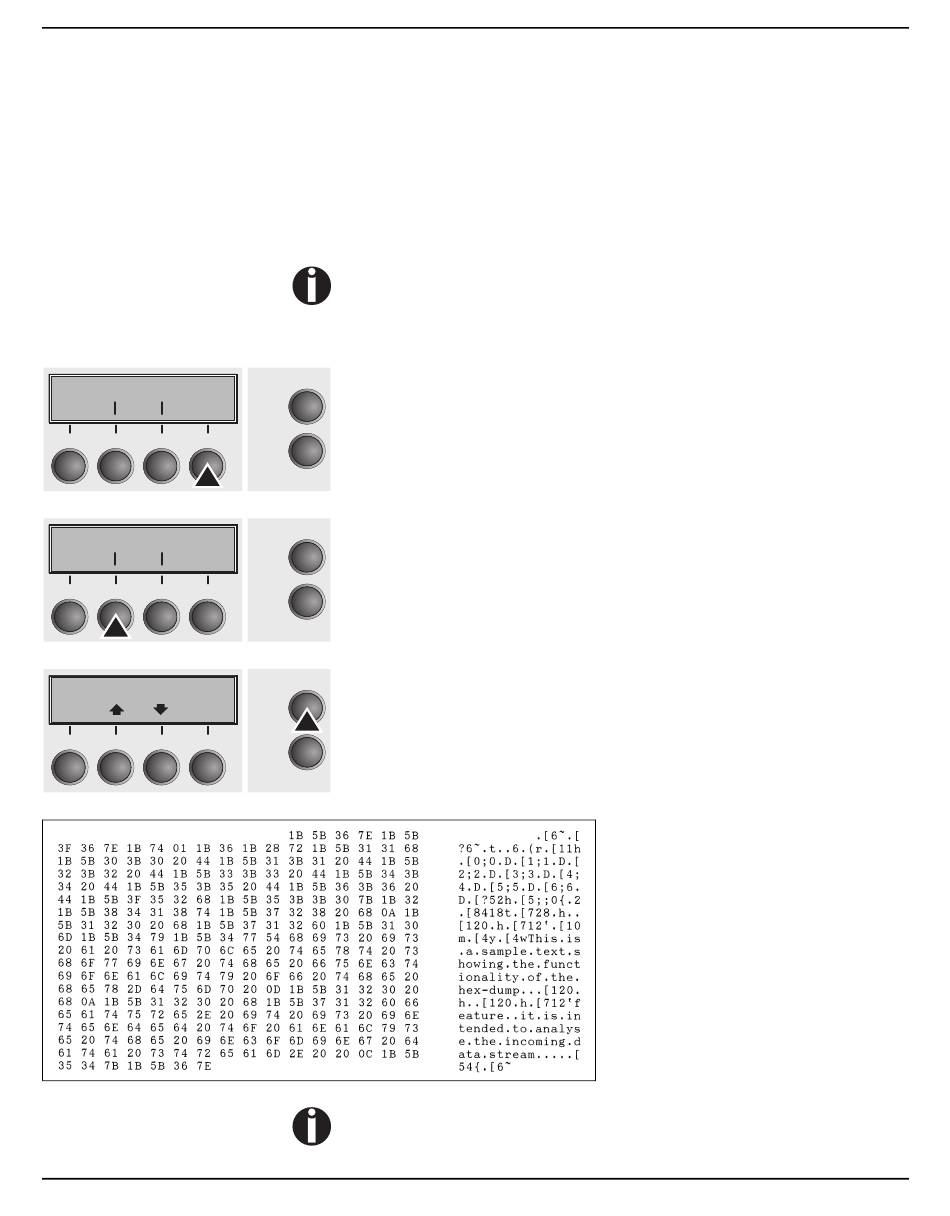

With the interface test (Hex-Dump/H-Dump) you can test data trans-
mission from the computer to the printer. During this test, the data
from the computer is printed out in two columns. The text in the left
column is printed in hexadecimal format and in the right column in
ASCII format.
Put the printer into advanced menu mode by pressing the key On-
line while switching on the printer.
Press the key Online until Test mode is shown on the display.
The display shows Test mode for approx. 1 second and then auto-
matically changes to display ASCII 80 ASCII 136.
Press the key Next (4), the display shows the next menu level.
Online
Setup
If you press the key H-Dump (2) you select the H-Dump mode and
Offline H-Dump is shown on the display.
Online
Setup
Put the printer into Online H-Dump mode by pressing the key On-
line. The printer is now ready to receive data from the computer and
Online
to print it out in hexadecimal format. The printed data can now be an-
alyzed and evaluated.
Setup
After the transmission you must switch the printer to Offline.
Any remaining data left in the interface buffer is then printed.
Example of a Hex-Dump printout
