6 How to Program the Low Harmonic Drive
6.1.5 Q3 Function Set-ups
The function set-up provides quick and easy access to all parameters required for the majority of water and wastewater applications including variable
torque, constant torque, pumps, dosing pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan applications. Among
other features, it also includes parameters for selecting which variables to display on the LCP, digital preset speeds, scaling of analog references, closed-
loop single zone and multi-zone applications and specific functions related to water and wastewater applications.
How to access the Function Set-up - example:
6

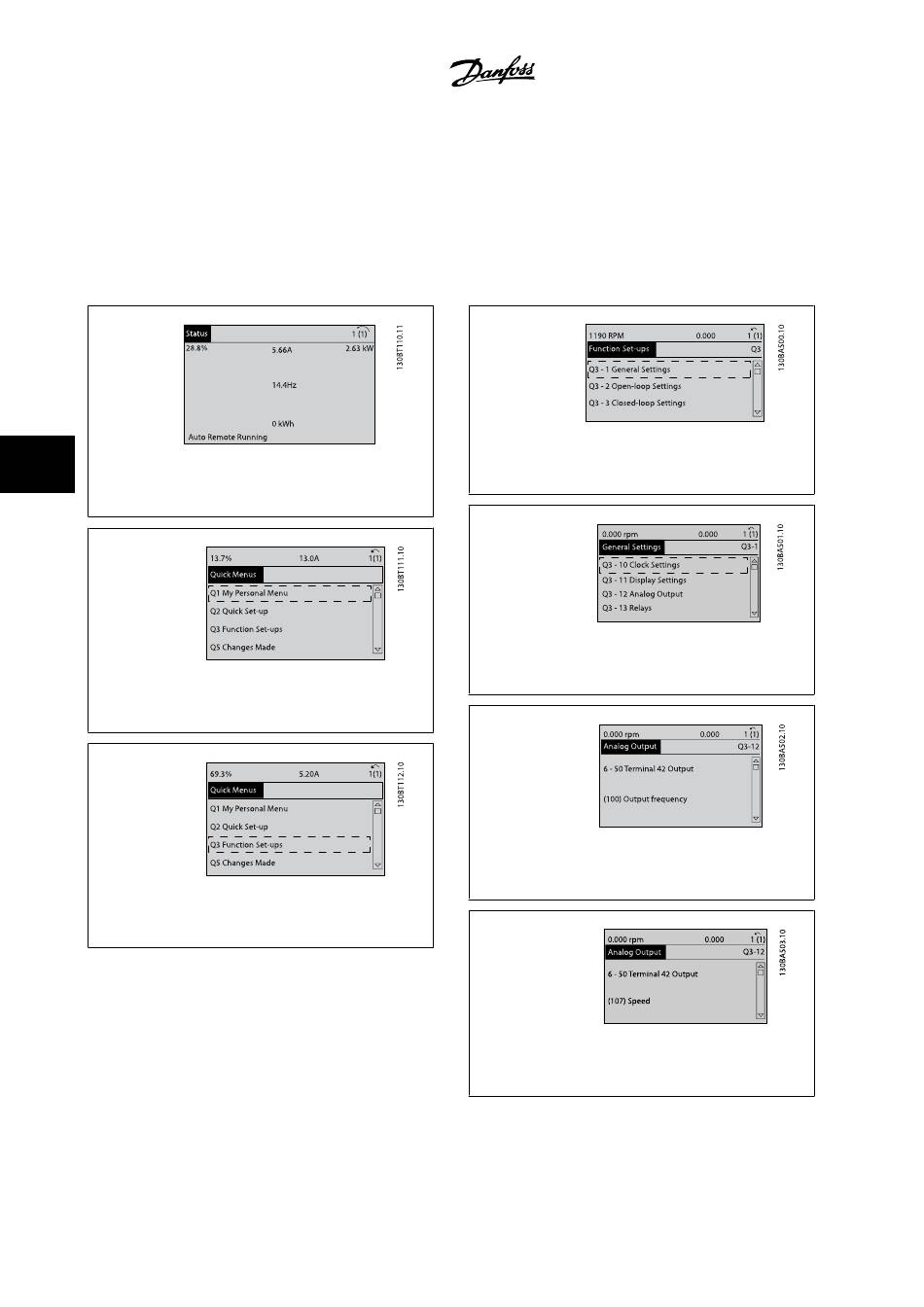

Figure 6.2: Step 1: Turn on the adjustable frequency drive
(On LED lights)
Figure 6.3: Step 2: Press the [Quick Menus] button (quick
menu choices appear).
Figure 6.4: Step 3: Use the up/down navigation keys to
scroll down to Function Set-ups. Press [OK].
6-4
Figure 6.5: Step 4: Function Set-up choices appear. Choose
03-1 General Settings
Figure 6.6: Step 5: Use the up/down navigation keys to
scroll down to, e.g., 03-12
Figure 6.7: Step 6: Choose parameter 6-50
Output . Press [OK].
Figure 6.8: Step 7: Use the up/down navigation keys to se-
lect between the different choices. Press [OK].
®
