VLT AQUA Low Harmonic Drive Instruction
Manual

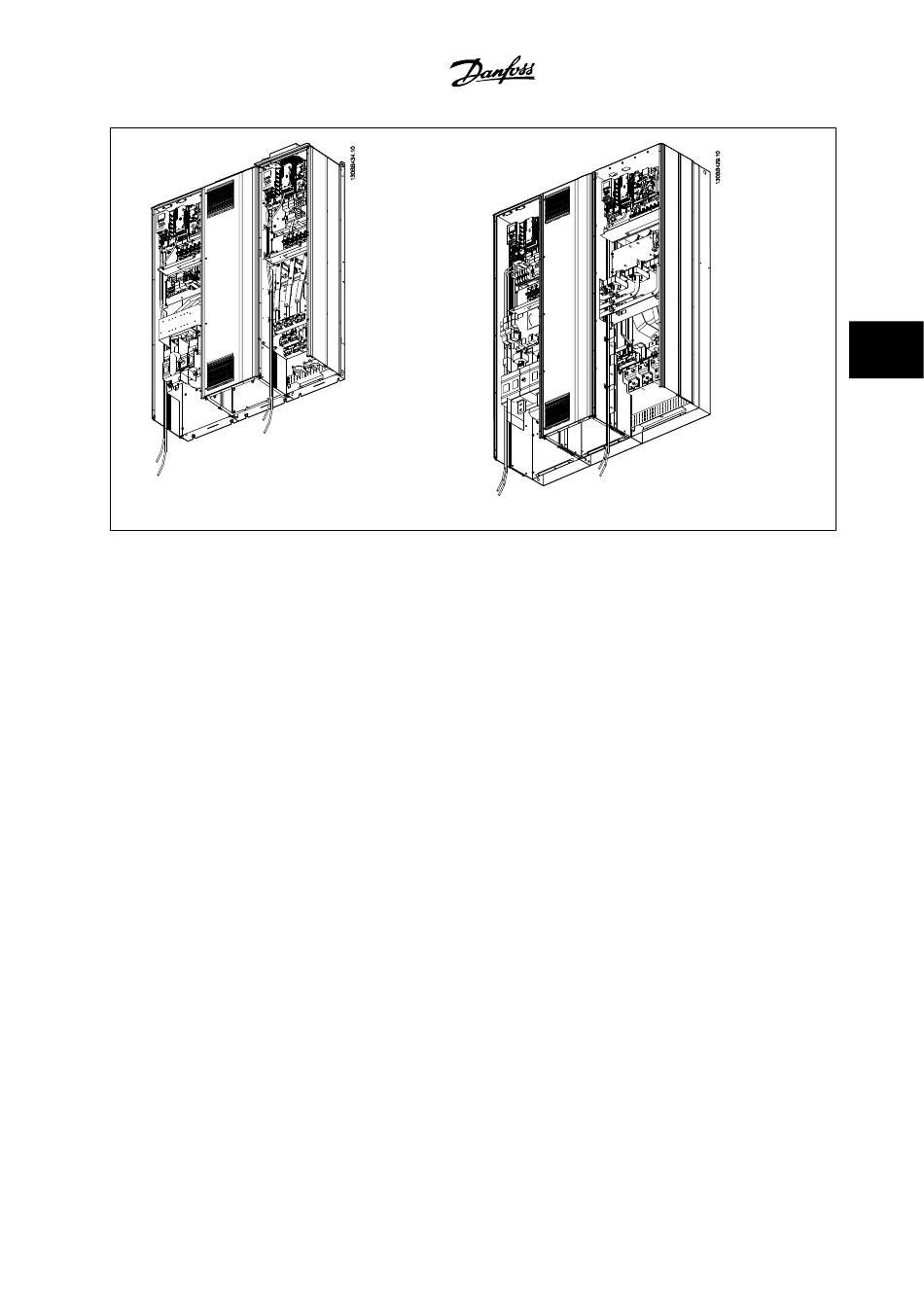

Control card wiring path for the D11
4.6.21 Access to Control Terminals
All terminals to the control cables are located beneath the LCP (both filter and drive LCP). They are accessed by opening the door of the unit.
Control card wiring path for the E7
®
MG.20.T1.22 - VLT
is a registered Danfoss trademark
4 How to Install
