Danfoss VLT AQUA Drive FC 200 Instruction Manual page 88

VLT AQUA Low Harmonic Drive Instruction
Manual
5.1.4 Changing a text value
If the selected parameter is a text value, it can be changed by using the
up/down navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value to be saved and press [OK].
5.1.5 Changing a group of numeric data values
If the chosen parameter represents a numeric data value, change the
chosen data value by means of the [◄] and [►] navigation keys as well
▲ ▼
] navigation keys. Use the ◄] and [►] navigation
as the up/down [ ] [
keys to move the cursor horizontally.
Use the up/down navigation keys to change the data value. The up key
increases the data value, while the down key reduces it. Place the cursor
on the value to be saved and press [OK].
5.1.6 Changing of data value, Step-by-Step
Certain parameters can be changed step-by-step or by an infinite number of variables. This applies to par. 1-20
Voltage Motor Frequency
and par. 1-23
The parameters are changed both as a group of numeric data values, and as numeric data values using an infinite number of variables.
.
®
MG.20.T1.22 - VLT is a registered Danfoss trademark
5 How to Operate the Low Harmonic Drive

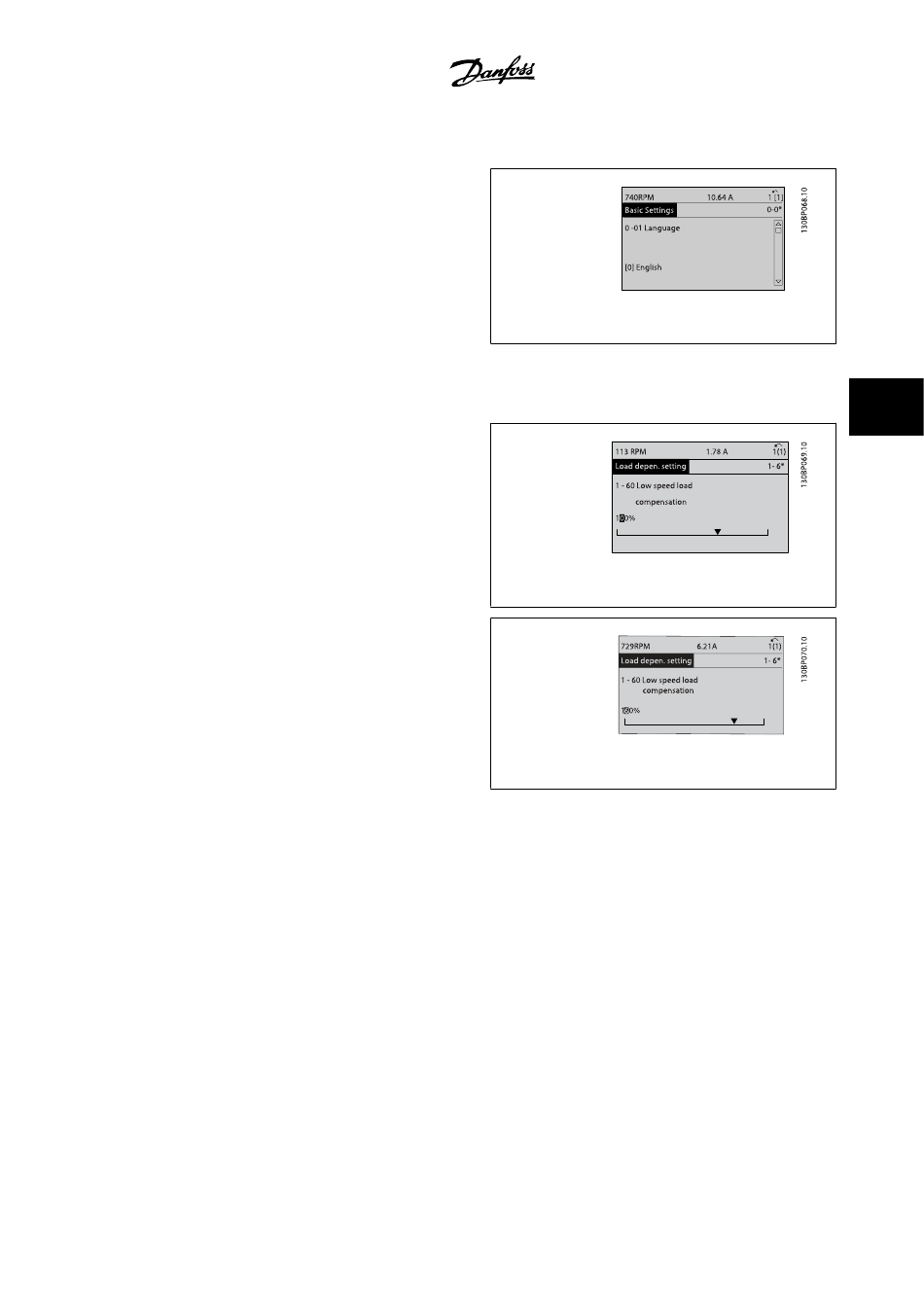

Figure 5.1: Display example.
Figure 5.2: Display example.
Figure 5.3: Display example.
Motor Power [kW]
5
, par. 1-22 Motor
5-7
