4 How to Install
4

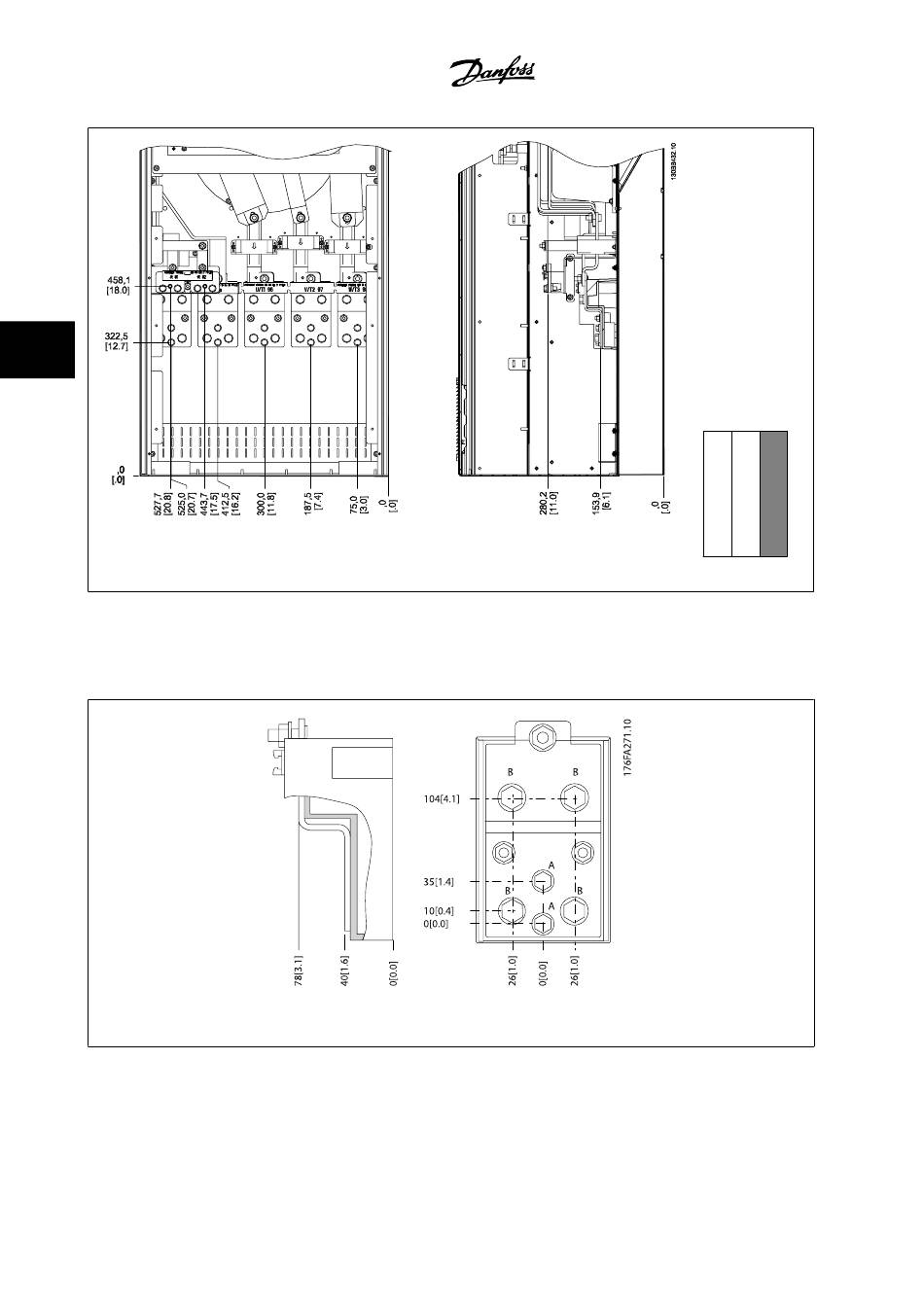

Figure 4.15: Terminal locations E6 - drive
Note that the power cables are heavy and difficult to bend. Give thought to the optimum position of the adjustable frequency drive for ensuring easy
installation of the cables.
Each terminal allows for the use of up to 4 cables with cable lugs or the use of standard box lug. Ground is connected to relevant termination point in
the drive.
Figure 4.16: Terminal in details
4-20
®
