VLT AQUA Low Harmonic Drive Instruction
Manual
6.1.9 Parameter Selection
In main menu mode, the parameters are divided into groups. Select a
parameter group using the navigation keys.
The following parameter groups are accessible:
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name, as well as the selected parameter value.
Group no.
0
1
2
3
4
5
6
8
9
10
11
13
14
15
16
18
20
21
22
23
24
25
26

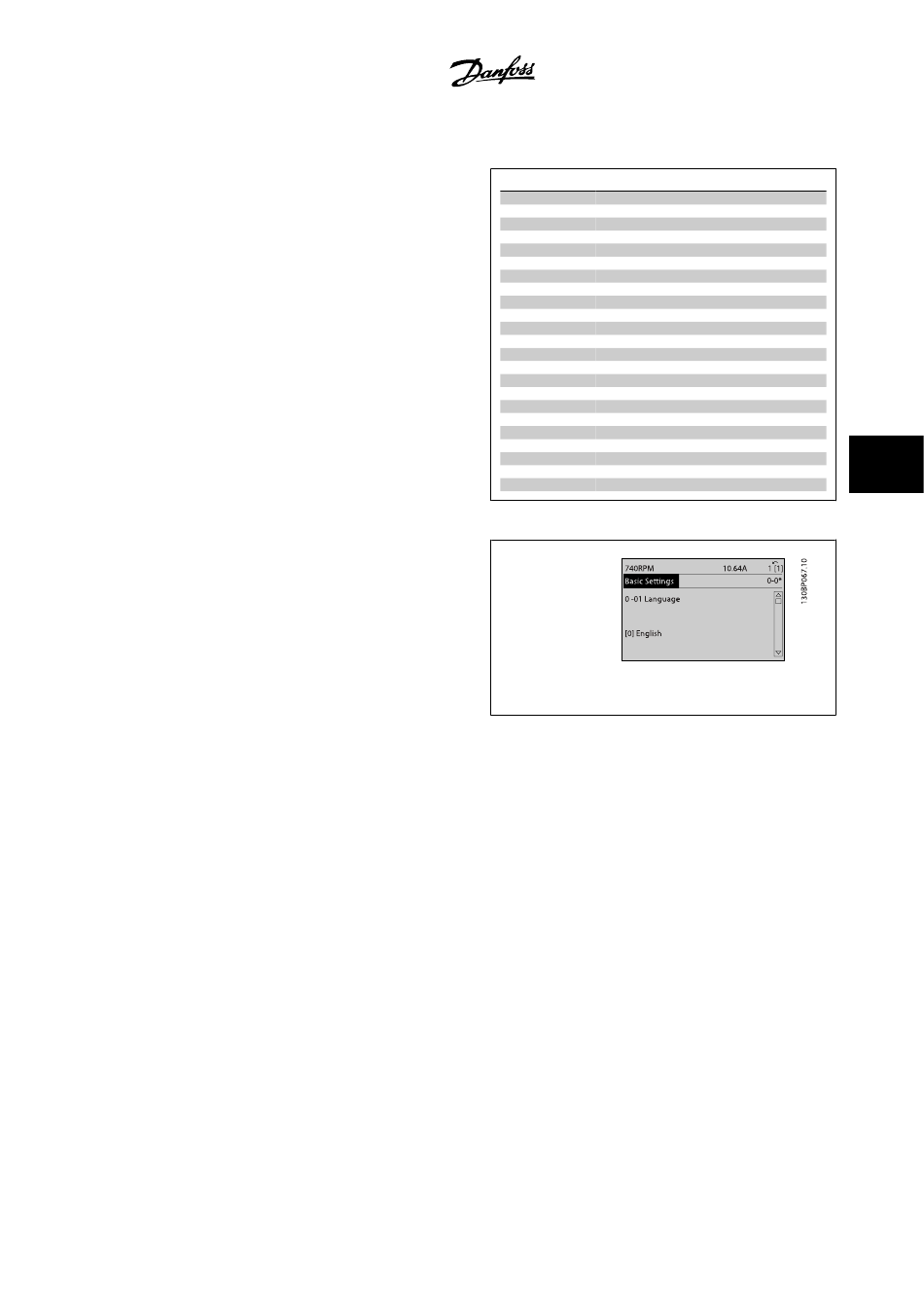

Table 6.3: Parameter groups.
®
MG.20.T1.22 - VLT is a registered Danfoss trademark
6 How to Program the Low Harmonic Drive
Parameter group:
Operation/Display
Load/Motor
Brakes
References/Ramps
Limits/Warnings
Digital In/Out
Analog In/Out
Comm. and Options
Profibus
CAN Fieldbus
LonWorks
Smart Logic
Special Functions
Drive Information
Data Readouts
Data Readouts 2
Drive Closed-loop
Ext. Closed-loop
Application Functions
Time-based Functions
Fire Mode
Cascade Controller
Analog I/O Option MCB 109
Figure 6.10: Display example.
