A: Technical Specifications and Pinouts

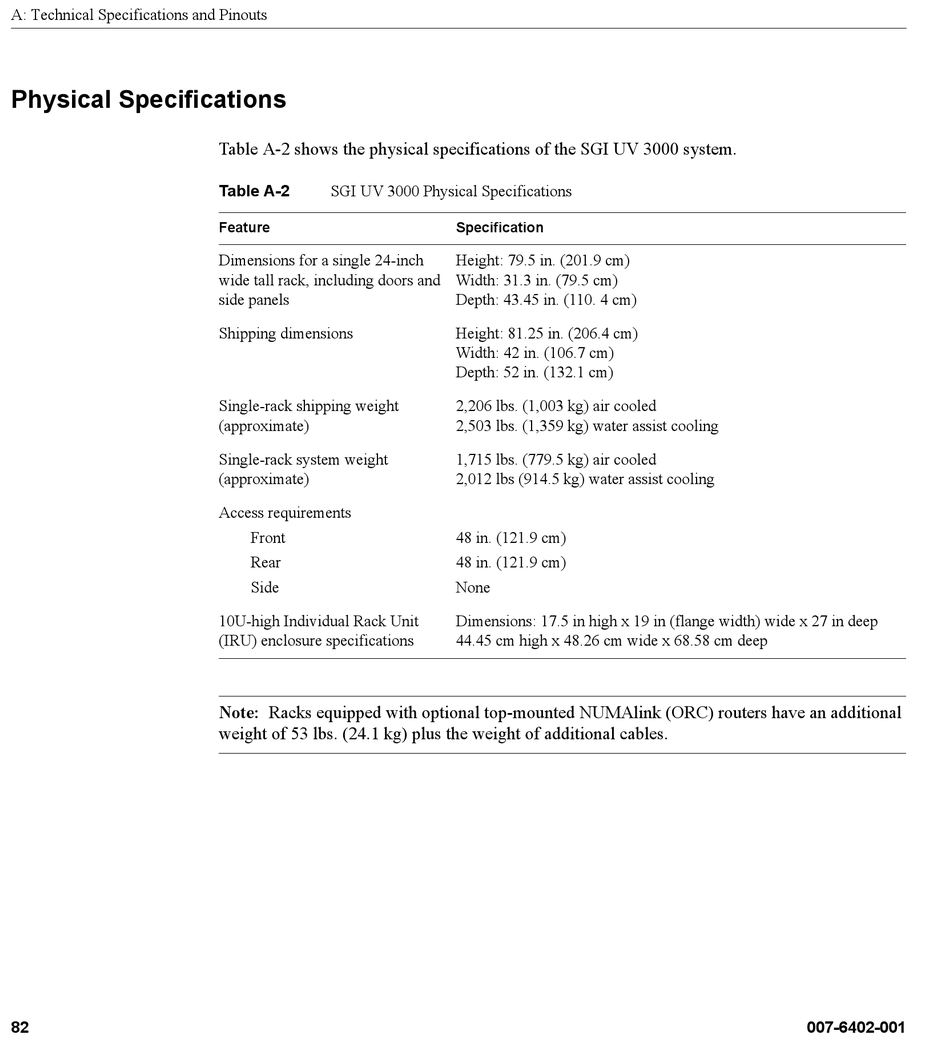

Physical Specifications

82
Table A-2 shows the physical specifications of the SGI UV 3000 system.
Table A-2 SGI UV 3000 Physical Specifications
Feature
Dimensions for a single 24-inch
wide tall rack, including doors and
side panels
Shipping dimensions
Single-rack shipping weight
(approximate)
Single-rack system weight
(approximate)
Access requirements
Front
Rear
Side
10U-high Individual Rack Unit
(IRU) enclosure specifications
Note: Racks equipped with optional top-mounted NUMAlink (ORC) routers have an additional
weight of 53 lbs. (24.1 kg) plus the weight of additional cables.
Specification
Height: 79.5 in. (201.9 cm)
Width: 31.3 in. (79.5 cm)
Depth: 43.45 in. (110. 4 cm)
Height: 81.25 in. (206.4 cm)
Width: 42 in. (106.7 cm)
Depth: 52 in. (132.1 cm)
2,206 lbs. (1,003 kg) air cooled
2,503 lbs. (1,359 kg) water assist cooling
1,715 lbs. (779.5 kg) air cooled
2,012 lbs (914.5 kg) water assist cooling
48 in. (121.9 cm)
48 in. (121.9 cm)
None
Dimensions: 17.5 in high x 19 in (flange width) wide x 27 in deep 
44.45 cm high x 48.26 cm wide x 68.58 cm deep
