5: Optional Octal Router Chassis Information

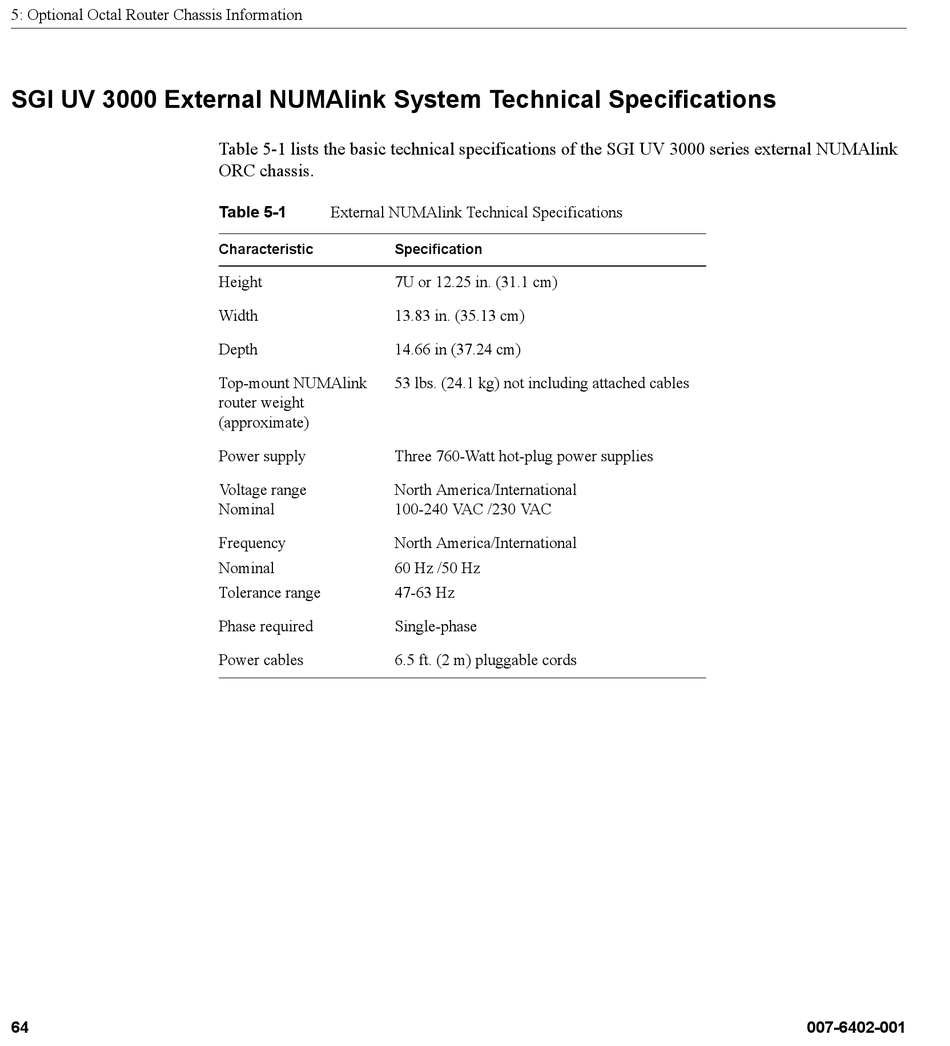

SGI UV 3000 External NUMAlink System Technical Specifications

64
Table 5-1 lists the basic technical specifications of the SGI UV 3000 series external NUMAlink
ORC chassis.
Table 5-1 External NUMAlink Technical Specifications
Characteristic Specification
Height 7U or 12.25 in. (31.1 cm)
Width 13.83 in. (35.13 cm)
Depth 14.66 in (37.24 cm)
Top-mount NUMAlink 53 lbs. (24.1 kg) not including attached cables
router weight
(approximate)
Power supply Three 760-Watt hot-plug power supplies
Voltage range North America/International
Nominal 100-240 VAC /230 VAC
Frequency North America/International
Nominal 60 Hz /50 Hz
Tolerance range 47-63 Hz
Phase required Single-phase
Power cables 6.5 ft. (2 m) pluggable cords
007-6402-001
