I/O Port Specifications

BaseIO VGA Port Information

007-6402-001
This section contains specifications and port pinout information for the base I/O ports of your
system, as follows:
• "BaseIO VGA Port Information" on page 85
• "Ethernet Port" on page 87
• "Serial Ports" on page 88
• "USB Type A Connector" on page 90
The 15-pin VGA port on the BaseIO blade (see Figure A-1) has the following features:
• Server-class 2D hardware acceleration support with integrated 24-bit RAMDAC
• Display resolution up to 1600 x 1200 @ 60Hz
• Up to 128 Mbytes DDRII memory interface support
• A single USB keyboard/mouse is supported by the baseIO blade connectors
The BaseIO VGA interface (see Table A-5 on page 86) can be used for all basic interaction with
your SGI UV 3000 system. Note that it does not provide a direct interconnect to the system CMC.
5 1
10 6
15 11

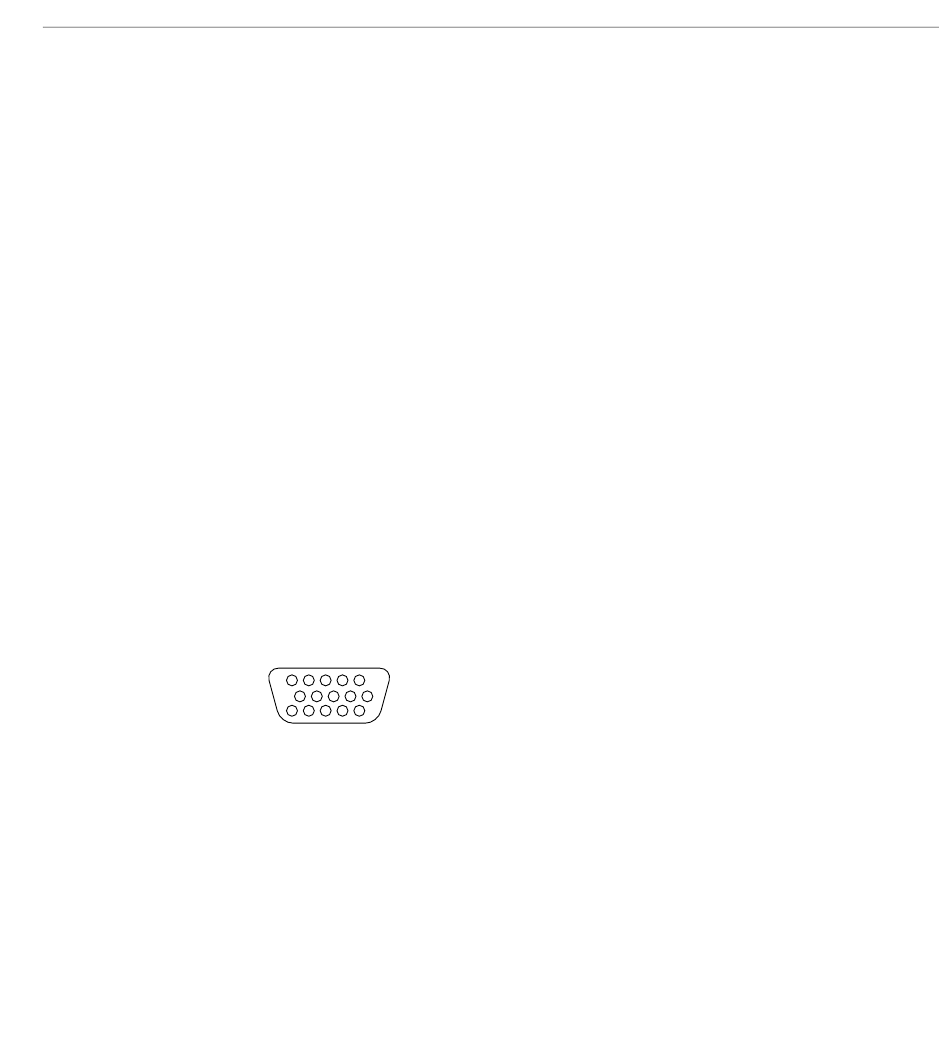

Figure A-1 VGA Port Pinouts
