RMC System Control Access

007-6402-001
• Supports entry of controller commands to view and/or change system configuration
parameters. See the SGI UV RMC Software User Guide (P/N 007-6361-00x) for a complete
list of command line interface (CLI) commands.
• Provides access to the system OS console allowing you to run diagnostics and boot the OS.
• Provides the ability to flash system BIOS.
Access to the SGI UV 3000 system controller network is accomplished by the following methods:
• A LAN connection to the RJ-45
• A USB-to-micro-USB serial connection to the "Console" port (see
the RMC front panel example.

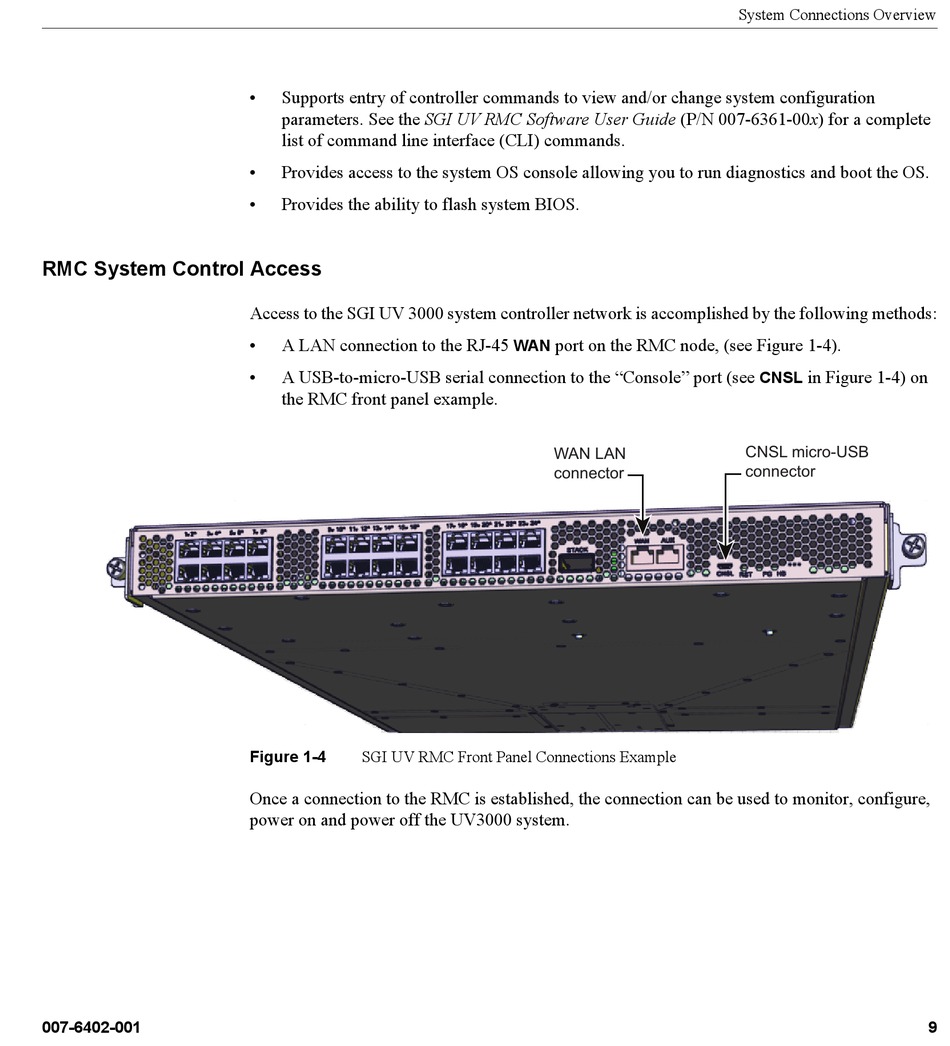

Figure 1-4 SGI UV RMC Front Panel Connections Example
Once a connection to the RMC is established, the connection can be used to monitor, configure,
power on and power off the UV3000 system.
port on the RMC node, (see Figure 1-4).
WAN
WAN LAN
connector
System Connections Overview
in Figure 1-4) on
CNSL
CNSL micro-USB
connector
