5: Optional Octal Router Chassis Information

SGI UV 3000 Series NUMAlink Octal Router Chassis

62
The NUMAlink 6 ORC router is a 7U-high fully self contained chassis that holds up to eight
16-port NL6 router blade assemblies. Figure 5-1 shows an example rear view of the ORC with no
power or NUMAlink cables connected.
The NUMAlink ORC is composed of the following:
• 7U-high chassis
• 4 or 8 HARP based router blade assemblies
• Cooling-fan assemblies
• Chassis Management Controller (CMC)/power supply assembly (with two power supplies)

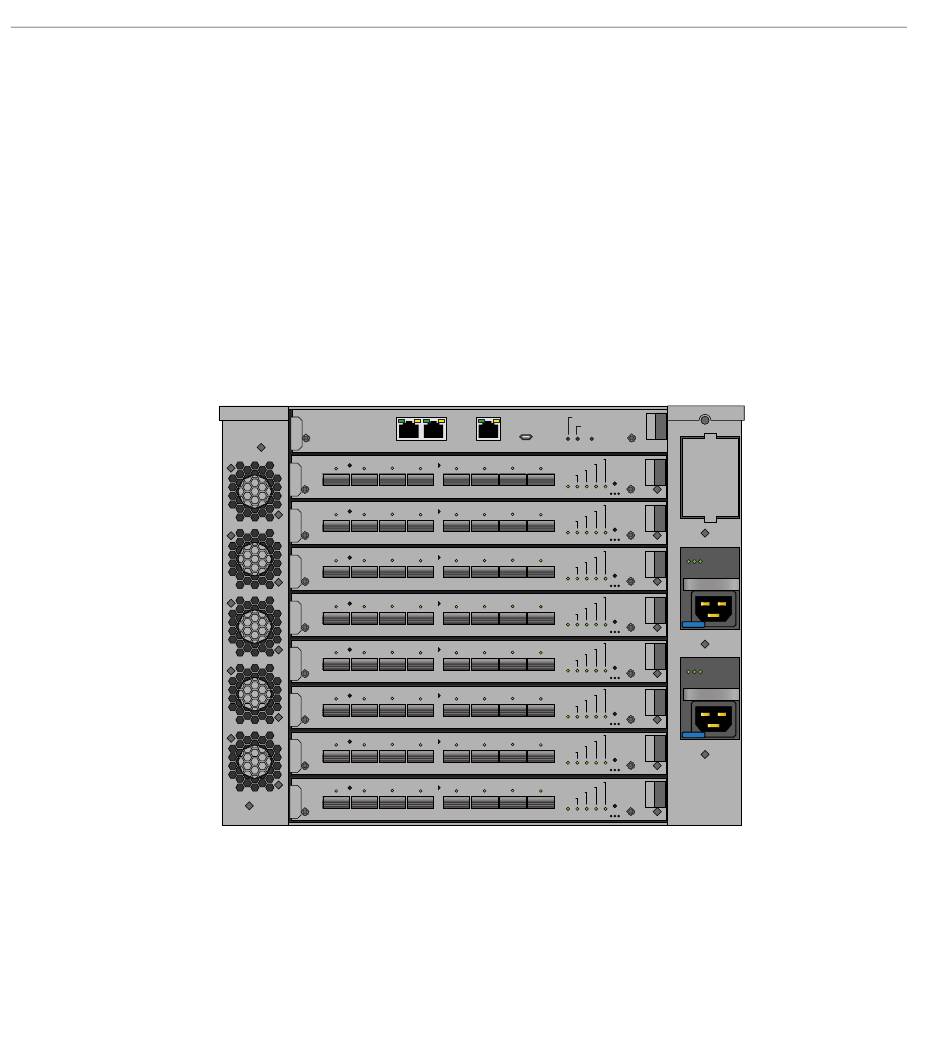

Figure 5-1 SGI UV 3000 Optional NUMAlink ORC (Rear View)
HEARTBEAT
PWR GOOD
SMN CMC ACC CONSOLE RESET
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
BMC ETH0 LINK
HEARTBEAT
PWR GD
3.3v
12v
ID
ID
ID
ID
ID
ID
ID
ID
007-6402-001
