MIC/GPU Enabled Compute Blade

007-6402-001
The single-socket MIC/GPU enabled compute blade has one single socket node blade and
supports one PCIe accelerator card. The MIC/GPU enabled compute blade has the following
features:
• One HARP ASIC based board assembly with twelve NUMALink six (NL6) ports that
connect the blade to the backplane and four NL6 ports connecting the blade to external
QSFP ports.
• Specialized connectors support the connection to both the bottom compute node and the top
MIC or GPU board assembly.
• One Bottom compute node board assembly with a single processor socket also supports
eight memory DIMM slots.
• One baseboard management controller (BMC) and one x16 Gen3 PCIe full-height
double-wide slot that supports a single MIC or GPU accelerator card.
• The accelerator card connects directly to the bottom compute board assembly via a ribbon
cable and draws power from the IRU backplane.

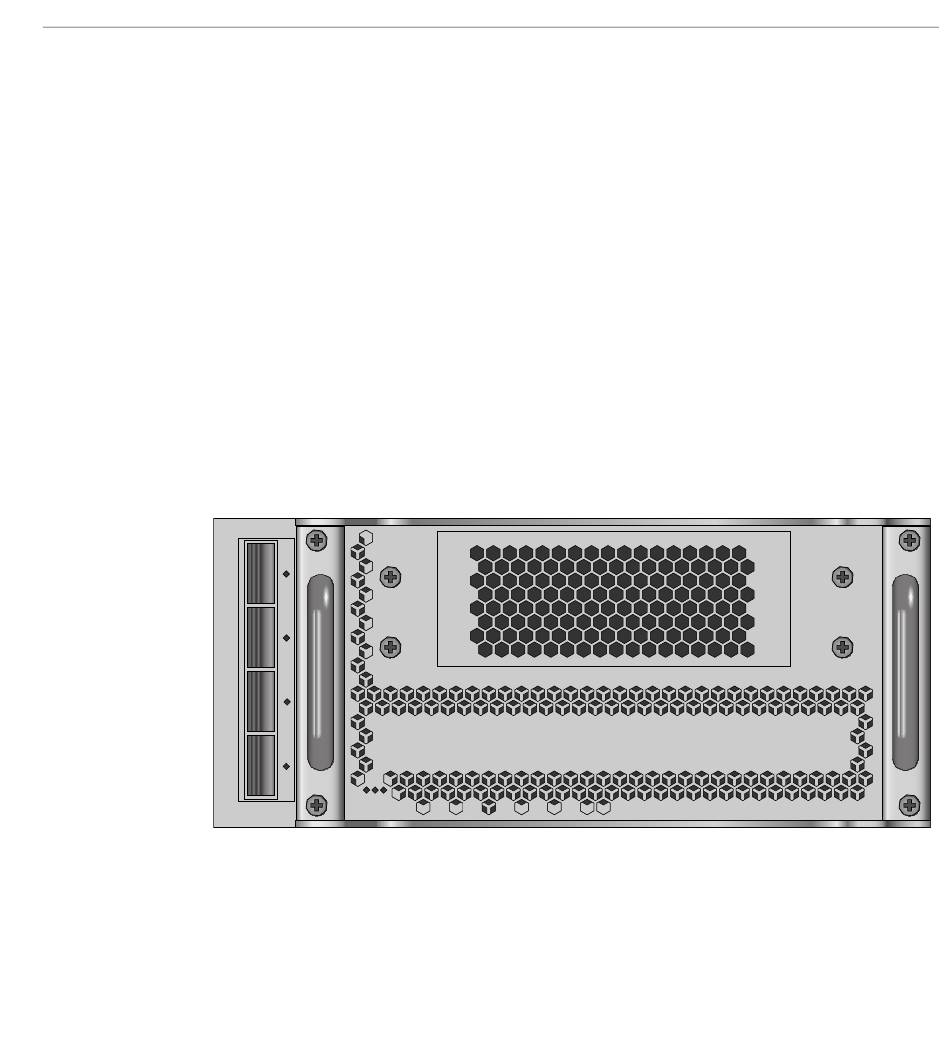

Figure 3-7 MIC/GPU Enabled Compute Blade Example Front View
