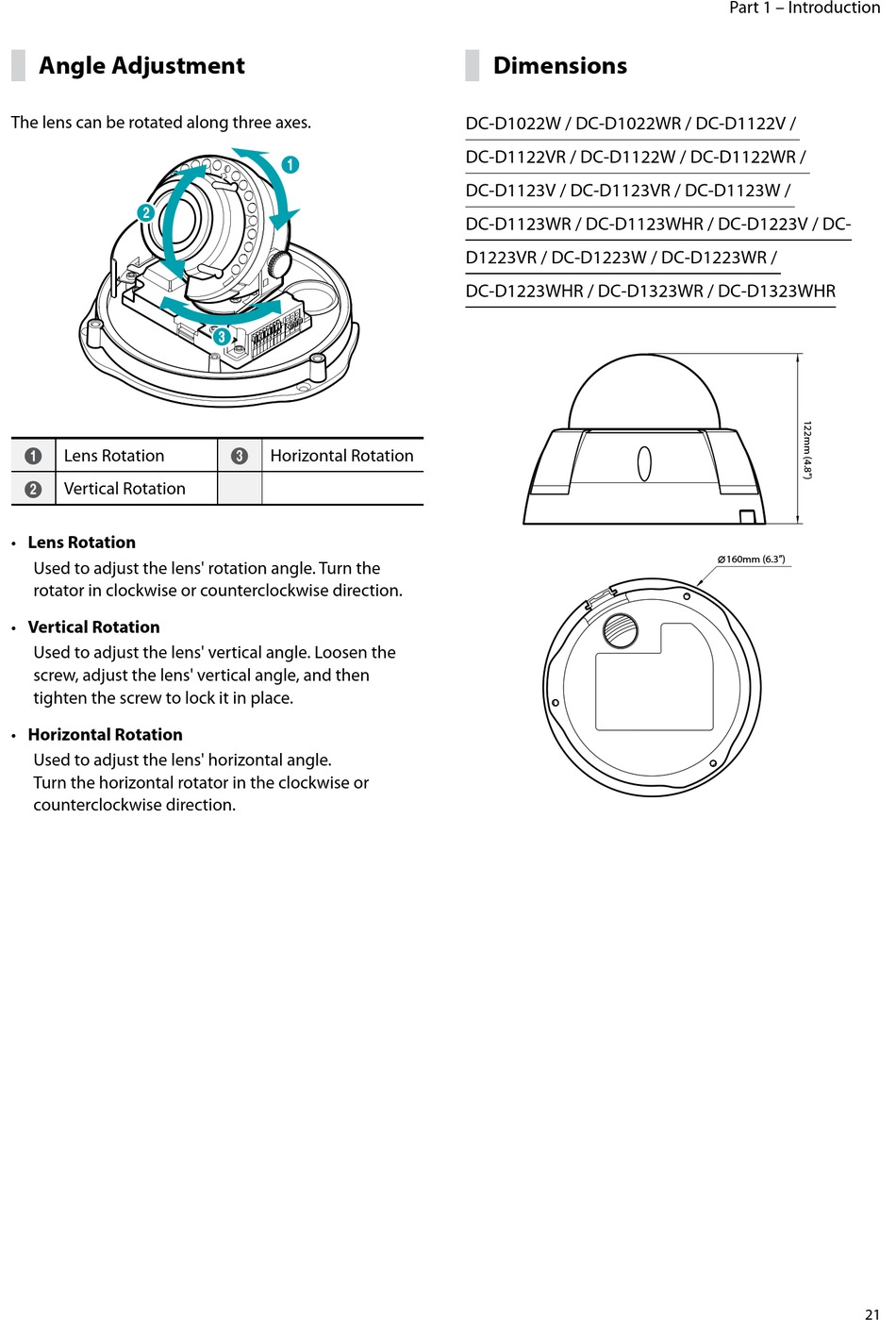

Angle Adjustment

The lens can be rotated along three axes.
2
Lens Rotation
1
Vertical Rotation
2
• Lens Rotation
Used to adjust the lens' rotation angle. Turn the
rotator in clockwise or counterclockwise direction.
• Vertical Rotation
Used to adjust the lens' vertical angle. Loosen the
screw, adjust the lens' vertical angle, and then
tighten the screw to lock it in place.
• Horizontal Rotation
Used to adjust the lens' horizontal angle.
Turn the horizontal rotator in the clockwise or
counterclockwise direction.
1
3
Horizontal Rotation
3

Dimensions

DC-D1022W / DC-D1022WR / DC-D1122V /
DC-D1122VR / DC-D1122W / DC-D1122WR /
DC-D1123V / DC-D1123VR / DC-D1123W /
DC-D1123WR / DC-D1123WHR / DC-D1223V / DC-
D1223VR / DC-D1223W / DC-D1223WR /
DC-D1223WHR / DC-D1323WR / DC-D1323WHR
Part 1 – Introduction
160mm (6.3")
21
