Angle Adjustment; Closing The Dome Cover - Direct IP DC-D4538RA Installation Manual

8
Adjust the angle. For more information, refer to the

Angle Adjustment.

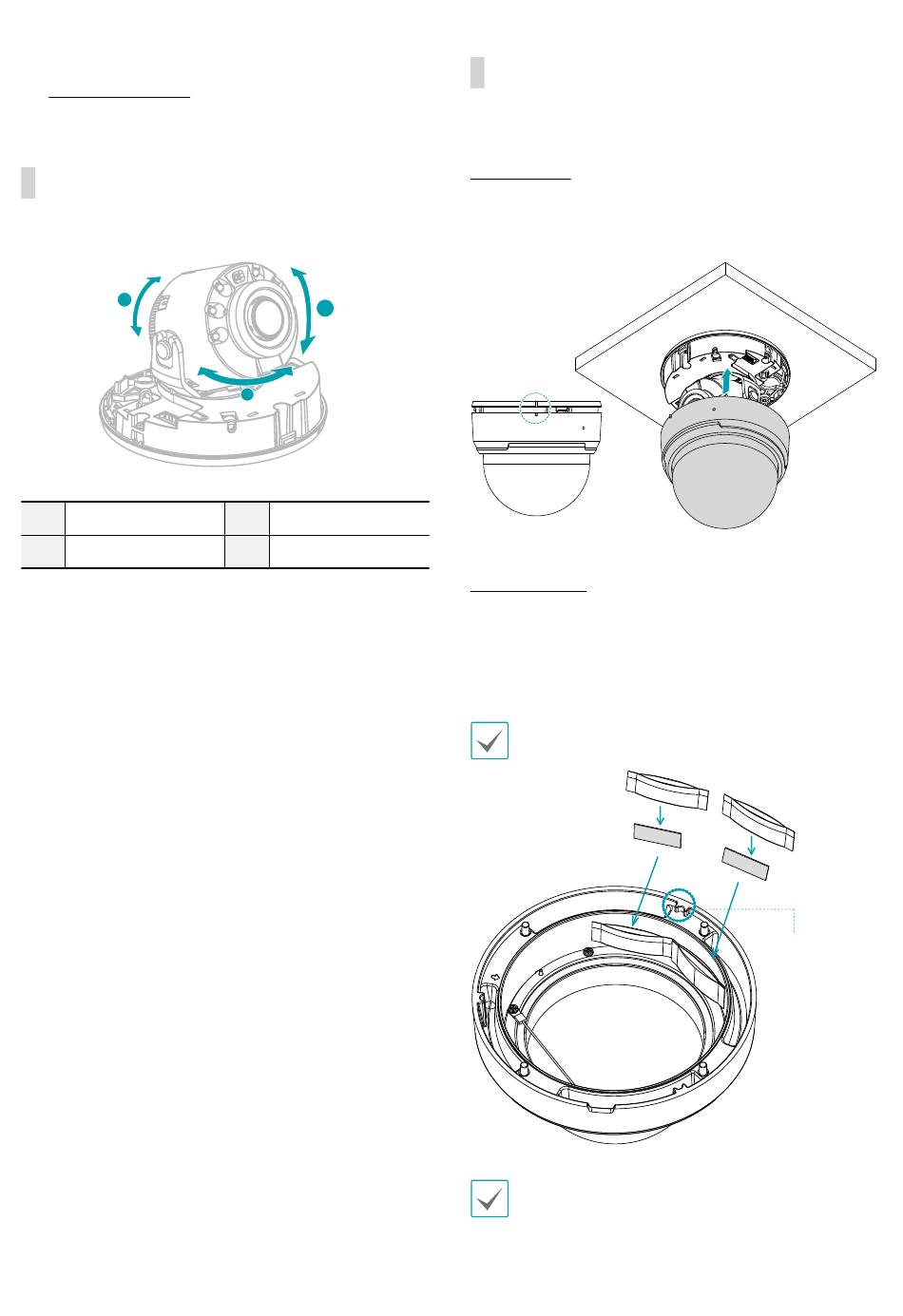

Angle Adjustment
The lens can be rotated along three axes.
1
Lens Rotation
1
Vertical Rotation
2
• Lens Rotation
Used to adjust the lens' rotation angle. Turn the lens
rotator clockwise or counterclockwise direction.
• Vertical Rotation
Used to adjust the lens' vertical angle.
• Horizontal Rotation
Used to adjust the lens' horizontal angle.
Turn the horizontal rotator in the clockwise or
counterclockwise direction.
2
3
Horizontal Rotation
3

Closing the Dome Cover

DC-D4538RA
Attach the dome cover to the bottom cover in a straight
line. Turn the dome cover clockwise to fasten the dome
cover.
DC-D4538WRA
1
Attach the double-sided tape to the desiccant first,
and attach it to the specified position inside the
dome cover as shown below.
Check the location of the wall/ceiling installation hole.
Before closing the dome cover, make sure that the
gasket ring is securely fixed.
2
Fasten the screws for the dome cover clockwise
using the Allen wrench provided with the camera.
Part 1 – Introduction
Wall/ceiling
installation
hole
15
