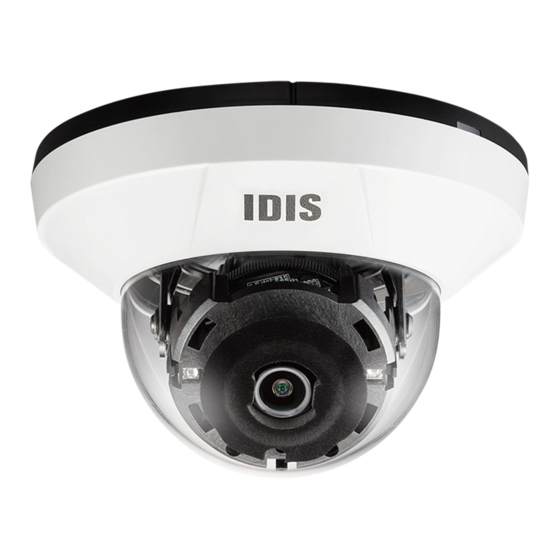

Direct IP Idis DC-D4217RX Operation Manual
  1. Manuals
  2. Brands
  3. Direct IP Manuals
  4. Security Camera
  5. Idis DC-D4217RX
  6. Operation manual

Direct IP Idis DC-D4217RX Operation Manual

Hide thumbs Also See for Idis DC-D4217RX:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-D4217RX
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Idis DC-D4217RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Direct IP Idis DC-D4217RX

Summary of Contents for Direct IP Idis DC-D4217RX

  • Page 1 Network Camera Operation Manual DC-D4217RX Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 Before reading this manual FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Remote Setup .
  • Page 6 Table of Contents Part 2 - IDIS Web ..........31 Web Live Mode .

  • Page 7: Part 1 - Remote Setup

    Part 1 - Remote Setup Remote Setup Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change.

  • Page 8: Quick Setup

    Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed Quick Setup allows you to set up System, Network, the settings, click Save to apply the settings.

  • Page 9: General

    Part 1 - Remote Setup General • Setup - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 11. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 10: Date/Time

    Part 1 - Remote Setup Date/Time User/Group • User/Group: Change remote camera control • Date/Time: Change the camera’s date/time settings permission settings for users and user groups. and display formats and configure the time zone and daylight saving time settings. Click Save to apply the - Add Group: Add a new user group.

  • Page 11: Network

    Part 1 - Remote Setup Network IP Address IPv4 Change the network settings, enable FEN and security features, and control network bandwidth use. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup.

  • Page 12: Fen

    Part 1 - Remote Setup IPv6 Select Use FEN to enable the FEN feature. • Check Use to activate IPv6. • Type: Select the type of network you are using. If this • FEN Server: Enter the FEN Server’s IP address or option has been changed, click Save to apply the domain name.

  • Page 13: Port/Qos

    Part 1 - Remote Setup Port/QoS • In WAN environment it is recommended to use the UPnP while recording images using FEN or when FEN connection is not stable. Otherwise, surveillance and recording may not be desirable depending on your network configuration environment.
  • Page 14 Part 1 - Remote Setup • Use UPnP: If the camera is connected to the network • In a WAN environment, it is recommended that you via an IP router (or NAT), select this option to connect use the UPnP function if you record video by using to the camera without setting up port forwarding.

  • Page 15: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control Security Regulates the camera’s network bandwidth use based on network traffic fluctuations. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. Select Network Bandwidth limit and then specify the maximum bandwidth.

  • Page 16: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, Privacy Masking and OSD options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.

  • Page 17: Camera

    Part 1 - Remote Setup Camera White Balance Configure White Balance settings.Preset: Use preconfigured white balance settings. Image Sensor Configure Image Sensor settings. • Preset: Use preconfigured white balance settings. - Auto: Allow the system to adjust the white • Frame Rate: Set the frame rate of image sesor. balance automatically.
  • Page 18 Part 1 - Remote Setup • Exposure Control: Adjust Shutter Speed and gain. Exposure This option is available only when Anti-Flicker and Configure Exposure settings. Slow Shutter are both set to Off. - Auto: The system will assess the lighting conditions and adjust the shutter speed and gain automatically.
  • Page 19 Part 1 - Remote Setup • Switching Level: Sets up the switching level between Day & Night daytime and nighttime modes. For example, if the Configure Day & Night settings. darkness level is set to 3 and the brightness level to 5, the system switches to nighttime mode when in lighting conditions of level 3 or below and to daytime mode when in lighting conditions of level 5 or over.

  • Page 20: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • Primary/Secondary/Tertiary/Quaternary: • Smart IR: Prevent the object from being saturated by Multistreaming is supported. Enable/disable IR light. Select Auto to control saturation only when streaming use. The stream you set first has priority. the zone is over-saturated.

  • Page 21: Webcasting

    Part 1 - Remote Setup • Default Record Stream: Choose a stream to use Webcasting for recording. This setting, however, may not apply if a recording stream has been designated from the Use the webcasting service to view live images from the remote program or the SD memory card recording camera on a web site.

  • Page 22: Mat

    Part 1 - Remote Setup Privacy Masking Select the MAT option to use the MAT (Motion Adaptive Select Privacy Masking to set up a privacy mask over Transmission) feature during video transmission and a specific area. The section on which a privacy mask is recording.

  • Page 23: Osd

    Part 1 - Remote Setup Event Action Select OSD to indicate texts and Date/Time information. Designate event detection alert actions. • Text - Size: Select the size of the text. - Color: Select the color of the text. - Transparency: Select the transparency of the text. - Position X: Set up the X-coordinate of the text.

  • Page 24: Email

    Part 1 - Remote Setup Email Remote Callback Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 25: Ftp Upload

    Part 1 - Remote Setup FTP Upload Select FTP Upload to upload .jpg image of the event detected to an FTP server. - FTP Server: Enter the FTP server’s IP address (or domain name). - Upload Path: Designate the file upload path. - Port: Enter the FTP server’s port number.

  • Page 26: Event

    Part 1 - Remote Setup Event • When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #, *, |, :, ", <, >, and ?. Configure event detection settings. • The resolution of FTP upload image can change depending on the resolution setting applied under Video >...

  • Page 27: Motion Detection

    Part 1 - Remote Setup Motion Detection • Event Action: Select a motion detection event alert action. - Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a Select Motion Detection to configure motion detection .jpg image of the event detected to the email.

  • Page 28: Trip-Zone

    Part 1 - Remote Setup Trip-Zone • Daytime: Specify when daytime starts and ends. All other times will be assumed as nighttime. • Event Action: Select a motion detection event alert Select Trip-Zone to configure trip zone event settings. action. With trip zone event enabled, motion detected inside/ - Send Email: Select if you wish to send an email.

  • Page 29: Tampering

    Part 1 - Remote Setup Tampering • Event Action: Select a tampering detection event alert action. - Send Email: Select if you wish to send an email. Select Tampering to configure tampering detection Select the Image Attachment option to attach a event settings.

  • Page 30: System Event

    Part 1 - Remote Setup System Event Select System Event and configure system event settings. With system event enabled, system status will be checked periodically and corresponding alerts will be generated. • System Alive: Select to check the system status and then set up a schedule.

  • Page 31: Part 2 - Idis Web

    Part 2 - IDIS Web IDIS Web is a program that allows you to view and search video from remote locations over the Internet and can be accessed on a Microsoft Internet Explorer or Chrome System requirements for running IDIS Web are as follows: OS: Microsoft Windows XP (Service Pack 3) Microsoft...
  • Page 32 Part 2 - IDIS Web Enter the ID and password and click LOGIN to sign in • IDIS Web does not work with Microsoft Windows 8 metro UI. ® ® • Do not close the login window while IDIS Web is running. Switching over to Web Live or Web Search mode can cause a script error, requiring you to restart the IDIS Web program.

  • Page 33: Web Live Mode

    Part 2 - IDIS Web Web Live Mode A remote web monitoring program that allows you to monitor images from remote locales in real-time. & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time.
  • Page 34 Part 2 - IDIS Web Used to adjust live video quality. This function is not supported. Event status window at the bottom of the screen displays a list of events detected at remote locales. Trip zone Tampering Motion Detection Right-click on the screen to display the pop-up menu. Click to enable or disable each function.

  • Page 35: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Event Action Email Remote Callback FTP Upload Event Motion Detection...

  • Page 36: Index

    Part 2 - IDIS Web Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Compression Date/Time DSCP Time Sync FEN Name Use FEN FEN Server Use HTTPS Frame Rate User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V1.2...
  • Page 37 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
