- Page 1 DC-D Series Installation Manual DC-D4217RX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features • IP filtering, HTTPS, SSL, IEEE 802.1X, and configurable user authority levels for greater security • Network bandwidth limitation and MAT features for DC-D4217RX is an IP-based network camera that more efficient use of network bandwidth compresses and transmits video over ethernet. -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Guide Pattern Screws, Anchors (each 2 ea.) Quick Guide... -
Page 8: Overview

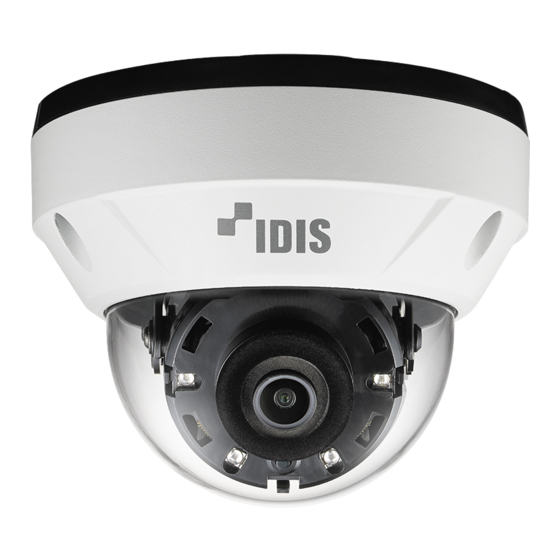

Part 1 – Introduction Overview Body Product color and design may vary depending on the model. Dome Cover Lens Network Port Wall/Ceiling Installation Hole Cable Access Hole Bottom Cover IR LED Factory Reset Button Status LED • Lens Features a fixed focus lens. •... -
Page 9: Factory Reset
Part 1 – Introduction Factory Reset The following table describes the network cable specifications. <The network cable specifications> Only use the factory reset button to restore the camera to its factory default settings. Item Content Note Connector RJ-45 A factory reset will clear all camera settings configured Ethernet 10/100 Base 10/100 Mbps... -
Page 10: Installation
Part 1 – Introduction Installation Installation Installation of this product does not require the use of • Check the wall or ceiling to see if it needs to be special tools. reinforced. The camera may fall off if the wall or For more information on other devices comprising the ceiling is not strong enough to support its weight. -
Page 11: Closing The Dome Cover
Part 1 – Introduction Closing the Dome Cover Dimension Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. 130mm Angle Adjustment The lens can be rotated along three axes. Lens Rotation Horizontal Rotation Vertical Rotation •... -
Page 12: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Power Monitor Out Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations. Each camera can be controlled via the DirectIP™... -
Page 13: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Network Camera Network Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 14: Part 3- Appendix
Part 3- Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. • Check the power outlet. PoE switch isn't being Check the grounding status of the I/O device connected to the camera and the PoE recognized. -
Page 15: Specifications
Part 3- Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8” CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=2.8mm / f=4.0mm Aperture F2.0 / F1.6 Angular Field DC-D4217RX 111.6°(H), 61.45°(V), 127.3°(D) of View... - Page 16 Part 3- Appendix General Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F) Boot Up Temperature 0˚C ~ 50˚C (32˚F ~ 122˚F) Operating Humidity 0% ~ 90% Power Source Power Consumption PoE, IEEE 802.3af(Class2),3.8W Approval FCC, CE External Dimensions (Ø x H) 130mm x 81.4mm (5.11"...
- Page 18 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
