Part 1 – Introduction
DC-D1011 / DC-D1111 / DC-D1212 / DC-D1212R
1

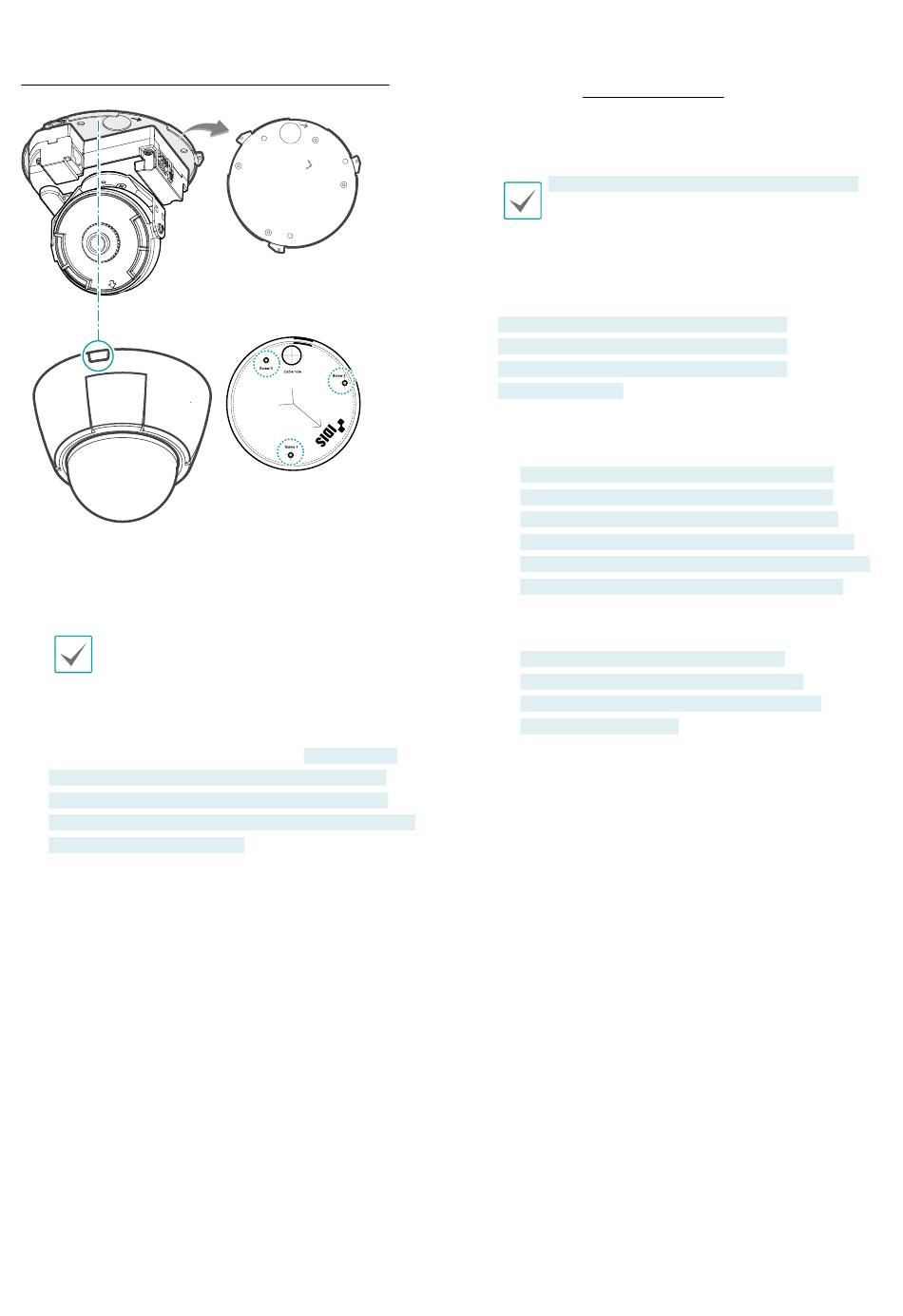

Use the screws provided with the camera to secure
the bottom cover on a wall or a ceiling.
Use the provided guide pattern to check the
distance between the screws.
2
Connect external devices, the network cable, and
the power adapter. If the camera is
/ DC-D1022WR / DC-D1122W / DC-D1122WR /
DC-D1123W / DC-D1123WR / DC-D1123WHR /
DC-D1223W / DC-D1223WR / DC-D1223WHR / DC-
D1323WR / DC-D1323WHR
hole for waterproofing by using the enclosed cable
access hole rubber when routing cables and wires.
Waterproofing sealing is required by using silicone
etc. after blocking the cable access hole. Ask your
retailer for details.
20
Guide Pattern
DC-D1022W
, block the cable access
3
Adjust the angle of the lens. For more information,
refer to the Angle Adjustment.
4
Adjust the focus and zoom levers.
DC-D1011 / DC-D1111 / DC-D1212 / DC-D1212R
models do not have a zoom feature.
5
Attach the shield case to the vertical rotation
adjustment screw and secure it in place.
DC-D1022W / DC-D1122 / DC-D1122V /
DC-D1122W / DC-D1123 / DC-D1123V /
DC-D1123W / DC-D1223 / DC-D1223V /
DC-D1223W only
6
Attach the dome cover to the bottom cover.
DC-D1022W / DC-D1022WR / DC-D1122V /
–
DC-D1122VR / DC-D1122W / DC-D1122WR
/ DC-D1123V / DC-D1123VR / DC-D1123W /
DC-D1123WR / DC-D1123WHR / DC-D1223V /
DC-D1223VR / DC-D1223W / DC-D1223WR / DC-
D1223WHR / DC-D1323WR / DC-D1323WHR
the provided screws to secure the dome cover on
to the bottom cover.
DC-D1011 / DC-D1111 / DC-D1122 /
–
DC-D1122R / DC-D1123 / DC-D1123R /
DC-D1212 / DC-D1212R / DC-D1223 / DC-
D1223R / DC-D1323R
to the cable access hole on the bottom cover
and the side cable access hole on the dome
cover together and then turn the dome cover in
clockwise direction to lock it in place.
7
Connect the power.
: Use
: Align the marking next
