4

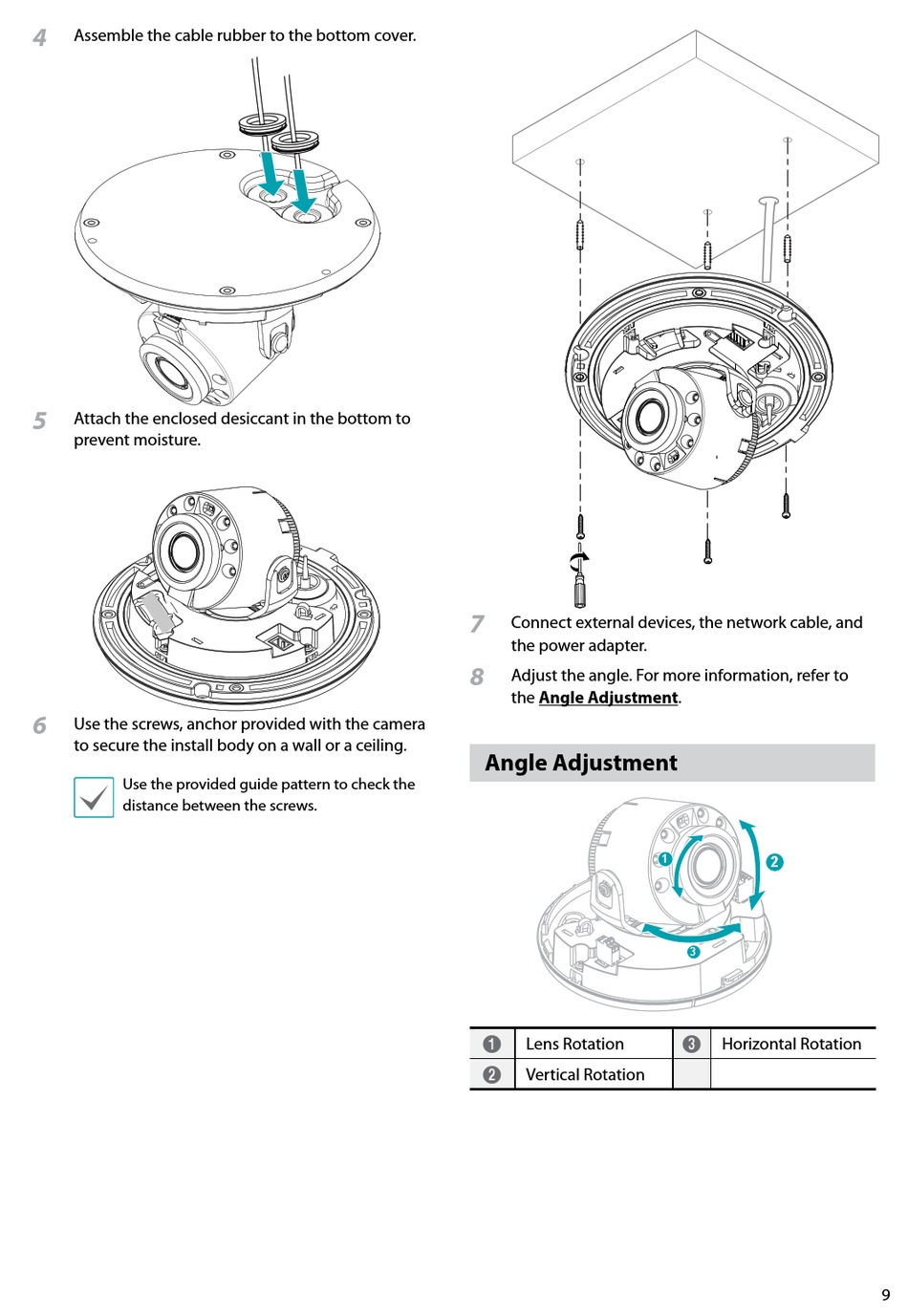

Assemble the cable rubber to the bottom cover.
5
Attach the enclosed desiccant in the bottom to
prevent moisture.
6
Use the screws, anchor provided with the camera
to secure the install body on a wall or a ceiling.
Use the provided guide pattern to check the
distance between the screws.
7
Connect external devices, the network cable, and
the power adapter.
8
Adjust the angle. For more information, refer to
the Angle Adjustment.

Angle Adjustment

Lens Rotation
1
Vertical Rotation
2
1
2
3
Horizontal Rotation
3
9
