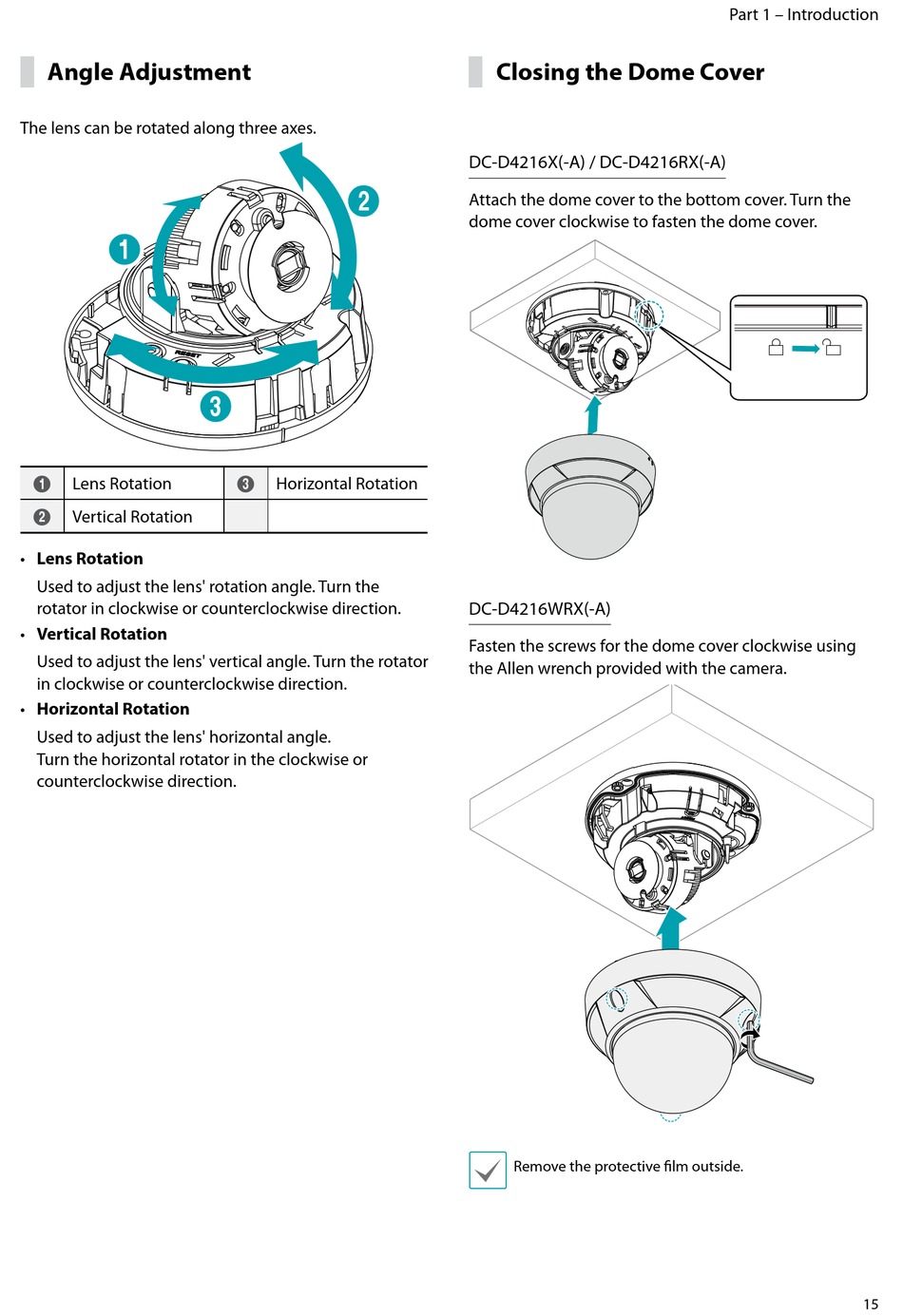

Angle Adjustment

The lens can be rotated along three axes.
1
Lens Rotation
1
Vertical Rotation
2
• Lens Rotation
Used to adjust the lens' rotation angle. Turn the
rotator in clockwise or counterclockwise direction.
• Vertical Rotation
Used to adjust the lens' vertical angle. Turn the rotator
in clockwise or counterclockwise direction.
• Horizontal Rotation
Used to adjust the lens' horizontal angle.
Turn the horizontal rotator in the clockwise or
counterclockwise direction.
2
3
Horizontal Rotation
3

Closing the Dome Cover

DC-D4216X(-A) / DC-D4216RX(-A)
Attach the dome cover to the bottom cover. Turn the
dome cover clockwise to fasten the dome cover.
DC-D4216WRX(-A)
Fasten the screws for the dome cover clockwise using
the Allen wrench provided with the camera.
Remove the protective film outside.
Part 1 – Introduction
15
