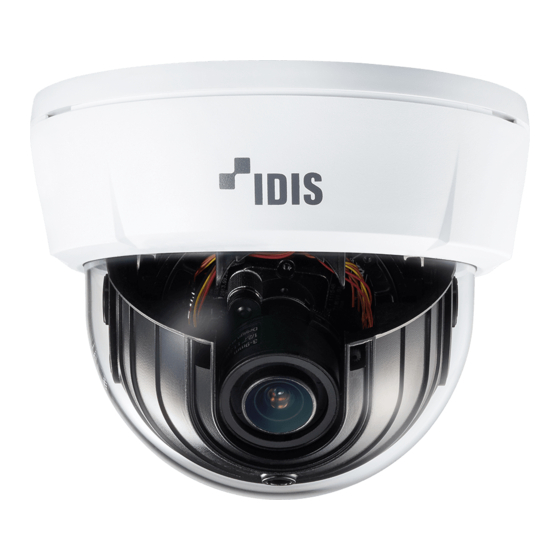

- Page 1 Network Camera Installation Manual DC-D4533RX / DC-D4533HRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features • Supports H.265 and H.264 video compression and M-JPEG still image compression algorithms • Supports 4-stage video compression rate and DC-D4533RX / DC-D4533HRX are IP-based network multiple compression resolutions cameras that compress and transmit video over •... - Page 7 Part 1 – Introduction • Easy network access via UPnP (Universal Plug and • Backup storage on a micro SD memory card as Play) function and embedded mDNS (Multicast DNS) a safeguard against data loss during network protocol interruptions • Wide dynamic range compensation (True WDR) for •...
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. DC-D4533RX DC-D4533HRX Terminal Blocks (2 ea.) Network Camera Desiccant (2 ea.) Allen Wrench Quick Guide Screws and Anchors (each 3 ea.) Protect Connector (1 ea.) Guide Pattern DC-D4533HRX model... -
Page 9: Overview
Part 1 – Introduction Overview Body DC-D4533RX Dome Cover DC-D4533RX DC-D4533HRX... - Page 10 Part 1 – Introduction • Lens DC-D4533HRX A motorized focus and zoom lens is installed. • Factory Reset Button Restores the camera's default factory settings. For more information, refer to the Factory Reset. • Built-in Microphone DC-D4533RX only Receives audio. •...
- Page 11 Part 1 – Introduction - I (In): Connect an audio source to this port. (Line • Do not remove the SD memory card while the in) A built-in microphone is featured on the front. system is in operation. Removing the card while DC-D4533RX only the system is in operation can cause the system to malfunction and/or corrupt data stored on the...
-
Page 12: Factory Reset
Part 1 – Introduction Installation Factory Reset Only use the factory reset button to restore the camera Installation of this product does not require the use of to its factory default settings. special tools. For more information on other devices comprising the A factory reset will clear all camera settings configured overall system, refer to their respective installation by the user. -
Page 13: Inserting A Sd Memory Card
Part 1 – Introduction Inserting a SD Memory Card DC-D4533WRX Insert a SD memory card into the SD memory card slot Loosen the screws counterclockwise using the allen with the 'micro SD' print facing upward. wrench provided with the product. DC-D4533RX DC-D4533HRX Remove the dome cover. -
Page 14: Installation
Part 1 – Introduction Installation DC-D4533HRX Push the network cable through the cable rubber, • Check the wall or ceiling to see if it needs to be using the protective connector provided. reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. -
Page 15: Angle Adjustment
Part 1 – Introduction Use the screws, anchor provided with the camera to Angle Adjustment secure the install body on a wall or a ceiling. Use the provided guide pattern to check the The lens can be rotated along three axes. distance between the screws. -
Page 16: Closing The Dome Cover
Part 1 – Introduction Closing the Dome Cover DC-D4533RX Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Remove the protective film inside and outside. DC-D4533HRX Attach the tape to the desiccant first and then attach it to the designated position of the dome cover as shown below. -
Page 17: Dimension
Part 1 – Introduction Dimension DC-D4533HRX DC-D4533RX Ø 155mm Ø 122mm... -
Page 18: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out Power Network Remote Monitoring... -
Page 19: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Sensor In Audio In Alarm Out Audio Out microSD Memory Card Network Camera Network Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 20: Part 3 - Appendix
Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. If using a PoE switch to supply power to the camera using an Ethernet cable, check the Ethernet cable connection. • Check the power outlet. If using a PoE switch to supply power to the camera using an Ethernet cable, check the PSE device's power supply. -
Page 21: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 2592 x 1944 (4:3) 2592 x 1456 (16:9) Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=3.0 - 13.5mm Aperture F=1.4 ~ 3.2 Iris Control... - Page 22 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bit rate Control CBR / VBR Max. Frame Rate 4:3 mode : 30fps : 2592 x 1944(WDR) 16:9 mode : 30fps : 2592 x 1456(WDR) Audio Compression G.726, ADPCM-16K, G.711u-Law, G.711a-Law Supported Resolution 4:3 : 2592x1944, 1920x1440, 1280x960, 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360...
- Page 23 Part 3 - Appendix General Operating DC-D4533RX -10°C ~ +50°C (14°F ~ +122°F) Temperature DC-D4533HRX -40°C ~ +55°C (-40°F ~ +131°F) Boot Up DC-D4533RX 0°C ~ +50˚C (32°F ~ +122˚F) Temperature DC-D4533HRX -20°C ~ +55˚C (-4°F ~ +131˚F) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class3)
- Page 24 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
