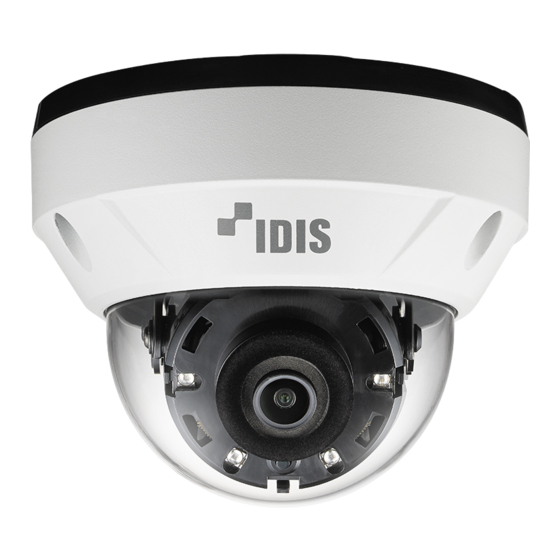

Direct IP Idis DC-D Series Installation Manual
Hide thumbs
Also See for Idis DC-D Series:
- Installation manual (18 pages) ,
- Installation manual (32 pages) ,
- Installation manual (18 pages)
Related Manuals for Direct IP Idis DC-D Series
Summary of Contents for Direct IP Idis DC-D Series
- Page 1 DC-D Series Installation Manual DC-D4216X DC-D4216RX DC-D4216WRX DC-D4216X-A DC-D4216RX-A DC-D4216WRX-A Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. DC-D4216RX(-A), DC-D4216WRX(-A) models only FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features • IP filtering, HTTPS, SSL, IEEE 802.1X, and configurable user authority levels for greater security • Network bandwidth limitation and MAT features for DC-D4216X(-A) / DC-D4216RX(-A) / DC- more efficient use of network bandwidth D4216WRX(-A) is an IP-based network camera that •... -
Page 7: Accessories
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. DC-D4216X, DC-D4216RX, DC-D4216WRX, DC- DC-D4216X-A, DC- D4216WRX-A Guide Pattern D4216RX-A Network Camera Quick Guide... -
Page 8: Overview
Part 1 – Introduction Overview Body Product color and design may vary depending on the DC-D4216X(-A) model. Dome Cover DC-D4216X(-A) / DC-D4216RX(-A) DC-D4216WRX(-A) - Page 9 Part 1 – Introduction DC-D4216RX(-A) DC-D4216WRX(-A) IR LED Lens Built-in Microphone Factory Reset Button Bottom Cover Network Port SD Memory Card Slot Cable Access Hole Alarm I/O, Audio I/O Wall/Ceiling Installation Hole Cable Rubber • IR LED A sensor inside the system monitors lighting levels and activates the IR LED during low-lighting DC-D4216RX(-A), DC-D4216WRX(-A) models conditions.
- Page 10 Part 1 – Introduction • Lens • Do not remove the SD memory card while the Features a fixed focus lens. system is in operation. Removing the card while • Built-in Microphone the system is in operation can cause the system to malfunction and/or corrupt data stored on the DC-D4216X, DC-D4216RX models only Receives audio.
-
Page 11: Factory Reset
Part 1 – Introduction Factory Reset Only use the factory reset button to restore the camera to its factory default settings. A factory reset will clear all camera settings configured by the user. Shut off the power supply. - I (In): Connect an alarm-in device to this port. (Mechanism: Choose between an NC (Normally Remove the dome cover. -
Page 12: Installation
Part 1 – Introduction Installation DC-D4216WRX(-A) Installation of this product does not require the use of Loosen the screws counterclockwise using the Allen special tools. wrench provided with the product. For more information on other devices comprising the overall system, refer to their respective installation manuals. -
Page 13: Inserting A Sd Memory Card
Part 1 – Introduction Inserting a SD Memory Card Insert a SD memory card into the SD memory card slot with the 'microSD' printed facing upward. Push the SD memory card until it disengages from the slot, and then pull it out. Installation Connect external devices, the network cable, and •... - Page 14 Part 1 – Introduction Assemble the cable rubber to the bottom cover. Connect external devices, the network cable, and the power adapter. Adjust the angle. For more information, refer to the Angle Adjustment. Attach the enclosed desiccant to the designated space inside the dome cover using double-sided tape as shown below.
-
Page 15: Angle Adjustment
Part 1 – Introduction Angle Adjustment Closing the Dome Cover The lens can be rotated along three axes. DC-D4216X(-A) / DC-D4216RX(-A) Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Lens Rotation Horizontal Rotation Vertical Rotation •... -
Page 16: Dimension
Part 1 – Introduction Dimension DC-D4216WRX(-A) DC-D4216X(-A) / DC-D4216RX(-A) Ø 120mm Ø 110mm... -
Page 17: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Power Monitor Out Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations. Each camera can be controlled via the DirectIP™... -
Page 18: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Network Camera Network microSD Memory Card Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 19: Part 3- Appendix
Part 3- Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. • Check the power outlet. PoE switch isn't being Check the grounding status of the I/O device connected to the camera and the PoE recognized. -
Page 20: Specifications
Part 3- Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8” CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=2.8mm Aperture F2.0 Iris Control Fixed Iris Angular Field of View H: 111.6°... - Page 21 Part 3- Appendix Network Video Compression H.265(MP), H.264(MP), M-JPEG Bitrate Control H.264 - VBR/CBR H.265 Max. Frame Rate 30fps : 1920 x 1080 (WDR) Supported Resolution 1920x1080, 1280x720, 640x360, 352x240 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T) Audio In/Out DC-D4216X, DC-D4216RX, Line-in 1ea / Line-out 1ea / Internal Mic 1ea DC-D4216X, DC-D4216RX models DC-D4216WRX models only only...
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
