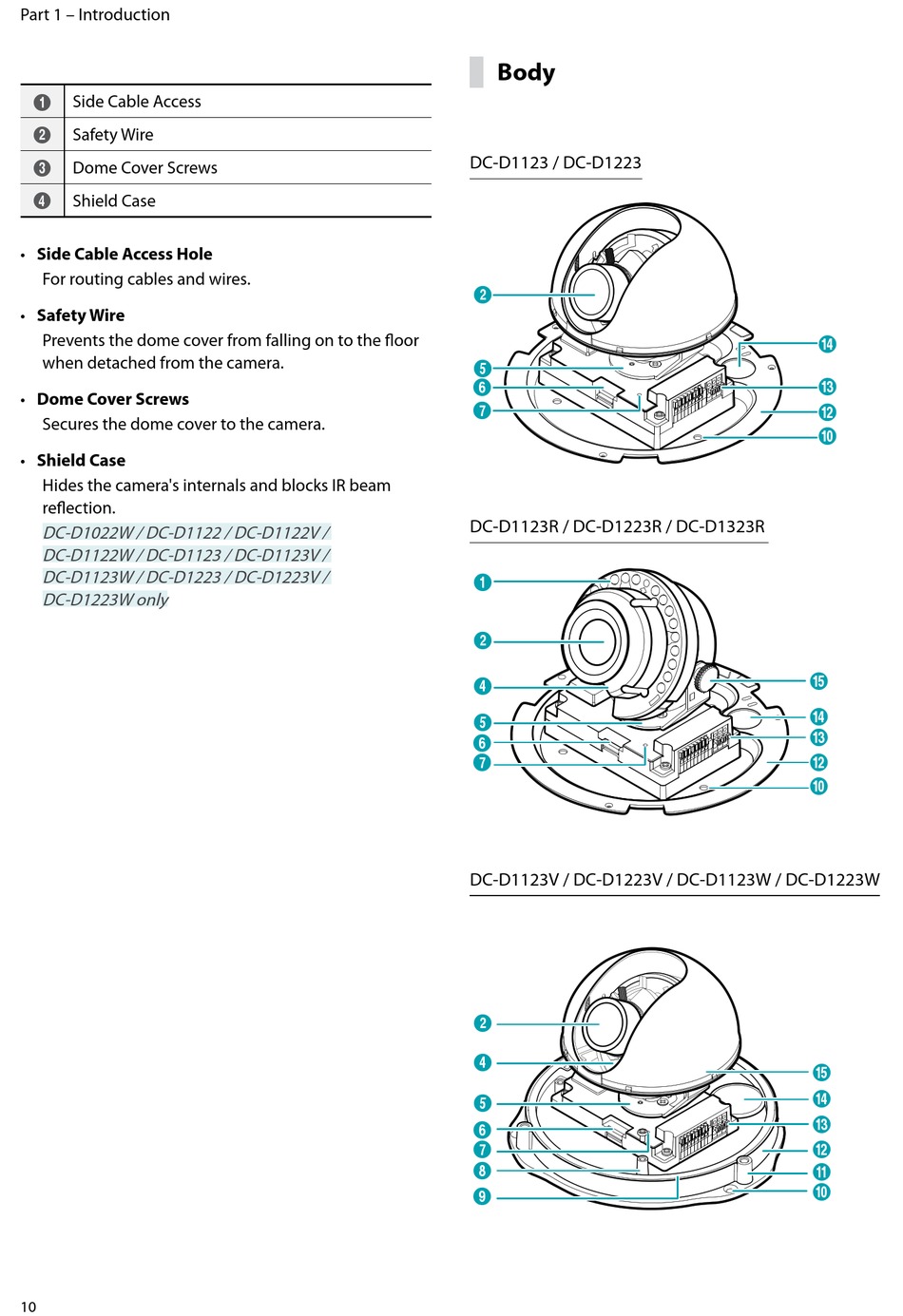

Part 1 – Introduction
Side Cable Access
1
Safety Wire
2
Dome Cover Screws
3
Shield Case
4
• Side Cable Access Hole
For routing cables and wires.
• Safety Wire
Prevents the dome cover from falling on to the floor
when detached from the camera.
• Dome Cover Screws
Secures the dome cover to the camera.
• Shield Case
Hides the camera's internals and blocks IR beam
reflection.
DC-D1022W / DC-D1122 / DC-D1122V /
DC-D1122W / DC-D1123 / DC-D1123V /
DC-D1123W / DC-D1223 / DC-D1223V /
DC-D1223W only
10

Body

DC-D1123 / DC-D1223
2
5
6
7
DC-D1123R / DC-D1223R / DC-D1323R
1
2
4
5
6
7
DC-D1123V / DC-D1223V / DC-D1123W / DC-D1223W
2
4
5
6
7
8
9
$
#
@
