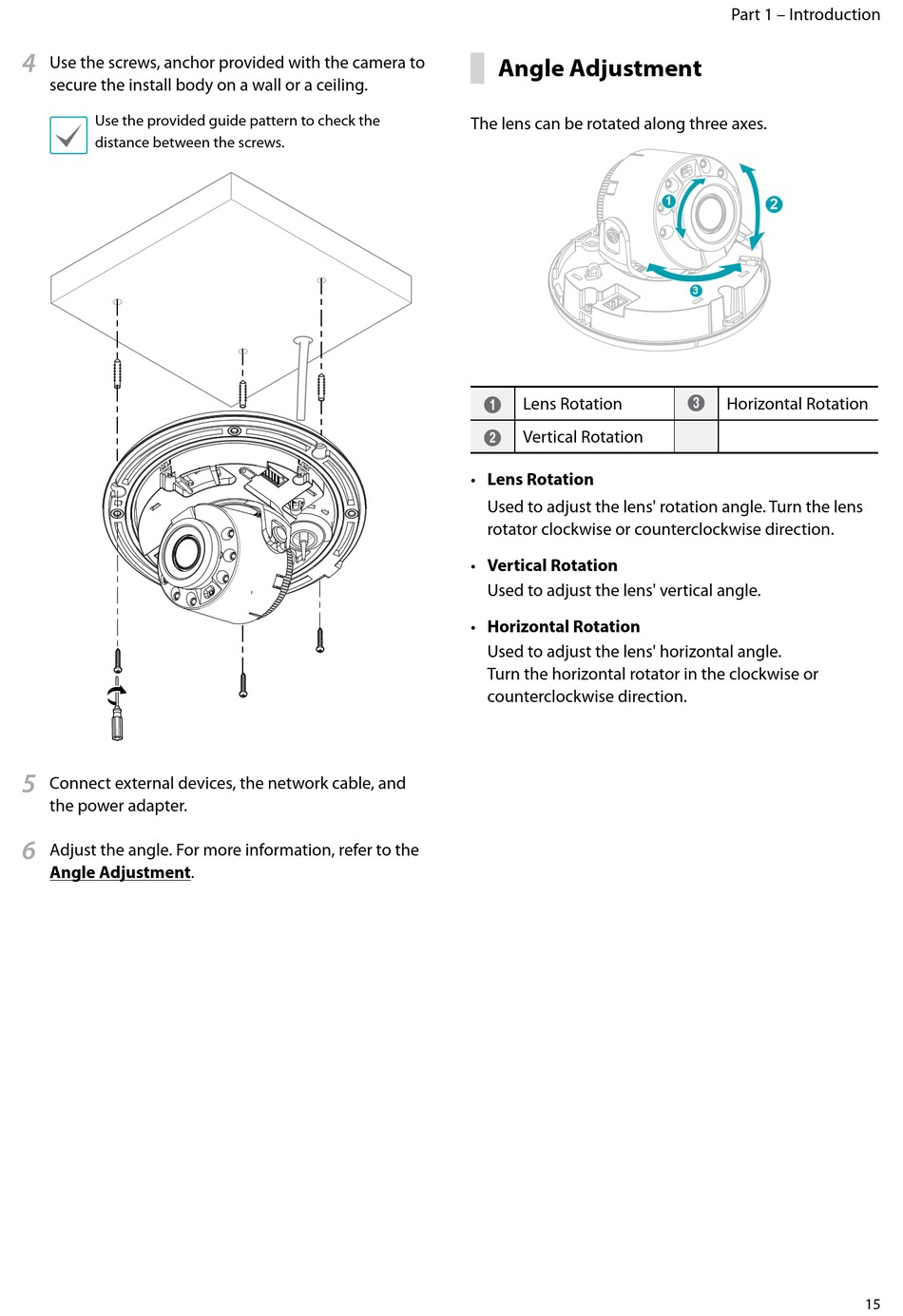

Angle Adjustment - Direct IP IDIS DC-D4533HRX Installation Manual

4
Use the screws, anchor provided with the camera to
secure the install body on a wall or a ceiling.
Use the provided guide pattern to check the
distance between the screws.
5
Connect external devices, the network cable, and
the power adapter.
6
Adjust the angle. For more information, refer to the

Angle Adjustment.

Angle Adjustment
The lens can be rotated along three axes.
Lens Rotation
1
Vertical Rotation
2
• Lens Rotation
Used to adjust the lens' rotation angle. Turn the lens
rotator clockwise or counterclockwise direction.
• Vertical Rotation
Used to adjust the lens' vertical angle.
• Horizontal Rotation
Used to adjust the lens' horizontal angle.
Turn the horizontal rotator in the clockwise or
counterclockwise direction.
Part 1 – Introduction
1
2
3
Horizontal Rotation
3
