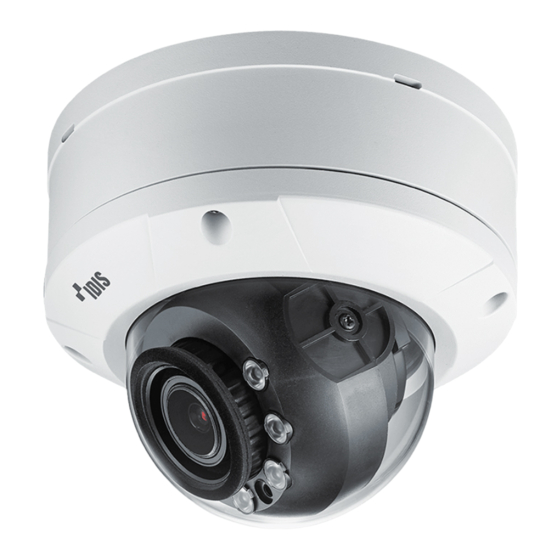

- Page 1 Network Camera Installation Manual DC-D3233HRX / DC-D3233WRX DC-D3233RX / DC-D3233X Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Supports H.265 and H.264 video compression and M-JPEG still image compression algorithms • Supports 4-stage video compression rate and DC-D3233HRX / DC-D3233WRX / DC-D3233RX / DC- multiple compression resolutions D3233X are IP-based network cameras that compress • Two-way audio communication support for remote and transmit video over ethernet. - Page 7 ( only) • Quick and easy firmware upgrade over the network • IP66-level for water resistant protection and dustproof DC-D3233HRX / DC-D3233WRX • Redundant firmware and auto recovery features for against rain and dust ( improved system stability only) •...
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. DC-D3233HRX / DC-D3233WRX DC-D3233RX / DC-D3233X Network Camera Quick Guide CVBS Cable Allen Wrench Screws (3 ea.) DC-D3233HRX /... -
Page 9: Overview
Part 1 – Introduction Overview Bottom • DC-D3233HRX / DC-D3233WRX Dome Cover • DC-D3233HRX / DC-D3233WRX • DC-D3233RX / DC-D3233X • DC-D3233RX / DC-D3233X Dome Cover Screw Hole Dome Cover Removal Groove Safety Wire Dome Cover Screws Dome Cover Assembly Notch... -
Page 10: Body
D3233RX / DC-D3233X only • Safety Wire Prevents the dome cover from falling on to the floor DC-D3233HRX / DC- when detached from the camera. D3233WRX only • Dome Cover Screws DC-D3233HRX Secures the dome cover to the camera. - Page 11 Part 1 – Introduction DC-D3233RX Lens IR LED Factory Reset Button SD Memory Card Slot Video Out Lens Rotator Horizontal Rotator Lens Rotator Handle Dome Cover Screw Hole SD Memory Card Slot Cover Side Cable Access Hole Bottom Cover Wall/Ceiling Installation Hole Rotator Screw Dome Cover Assembly Hook DC-D3233X...
- Page 12 IR LED during low-lighting conditions. • Horizontal Rotator DC-D3233HRX / DC-D3233WRX / DC-D3233RX only Used to adjust the lens' horizontal angle. • Factory Reset Switch Button • Dome Cover Screw Hole Restores the camera's default factory settings.
-
Page 13: Factory Reset
Secures the dome cover to the camera. Lens • Heater Has a built-in heater that enables normal operation in sub-zero temperature conditions. DC-D3233HRX only Motorized focus and zoom lens Factory Reset Only use the factory reset button to restore the camera to its factory default settings. -
Page 14: I/O Device Port
Part 1 – Introduction I/O Device Port • Audio - O (Out): Connect an amplifier to this port (line out). This device does not feature a built-in audio amplifier unit and therefore requires the user to purchase a separate speaker system with a built-in amplifier. -
Page 15: Installation
The user will be held liable for any violation of the law. • When switching over from 12 VDC to PoE as the DC-D3233HRX / DC-D3233WRX power source, the system will be rebooted once the power adapter is disconnected. -
Page 16: Inserting A Sd Memory Card
DC-D3233RX / DC-D3233X Inserting a SD Memory Card Insert a flat-head screwdriver into the groove indicated by the triangle mark on the dome cover, and push down the screwdriver. DC-D3233HRX / DC-D3233WRX Pull the hook and lift the cover to remove it. -
Page 17: Installation
• Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely. DC-D3233HRX / DC-D3233WRX Push the SD memory card until it disengages from the slot, and then pull it out. - Page 18 Part 1 – Introduction Use the screws, anchor provided with the camera to DC-D3233RX / DC-D3233X secure the bottom cover on a wall or a ceiling. Use the provided guide pattern to check the Use the screws, anchor provided with the camera to distance between the screws.
-
Page 19: Closing The Dome Cover
Attach the dome cover to the bottom cover. Press the area where the triangular mark meets the dome cover assembly hook to assemble the dome cover. DC-D3233HRX / DC-D3233WRX Attach the dome cover to the bottom cover. Match the dome cover assembly notch to the wall/ceiling installation hole of the camera body. -
Page 20: Dimensions
• Horizontal Rotation Used to adjust the lens' horizontal angle. Turn the horizontal rotator in the clockwise or counterclockwise direction. Dimensions Ø 155mm (6.1") Ø 155 mm (6.1”) DC-D3233HRX / DC-D3233WRX Ø 155mm (6.1") Ø 155 mm (6.1”) -
Page 21: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out Power Network Remote Monitoring... -
Page 22: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Sensor In Audio In Alarm Out Audio Out Network Camera Network microSD Memory Card Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 23: Part 3 - Appendix
Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. If using a PoE switch to supply power to the camera using an ethernet cable, check the ethernet cable connection. • Check the power outlet. If using a PoE switch to supply power to the camera using an ethernet cable, check the PSE device's power supply. -
Page 24: Specifications
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter(1 ~ 1/5, 1/7.5, 1/15) Day & Night IR cut filter with auto switch IR Distance (LEDs) DC-D3233HRX 20m (6ea) ( only) DC-D3233WRX / DC-D3233RX 20m (28ea) ( only) - Page 25 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate 60fps : 1920 x 1080 30fps : 1920 x 1080(WDR) Audio Compression G.726, G.711, ADPCM 16KHz Supported DirectIP 1920x1080, 1280x720, 704x480, 640x360, 352x240 Resolution Non DirectIP 1920x1080, 1280x720, 704x480, 352x240...
- Page 26 Part 3 - Appendix General Vandal Resistance Yes ( DC-D3233HRX / DC-D3233WRX only) Out-door Ready IP66 ( DC-D3233HRX / DC-D3233WRX only), Heater ( DC-D3233HRX only) Operating DC-D3233HRX -40°C ~ +55°C (-40°F ~ +131°F) Temperature DC-D3233WRX -10°C ~ +55°C (+14°F ~ +131°F) DC-D3233RX / -10°C ~ +50°C (+14°F ~ +122°F)
- Page 28 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
