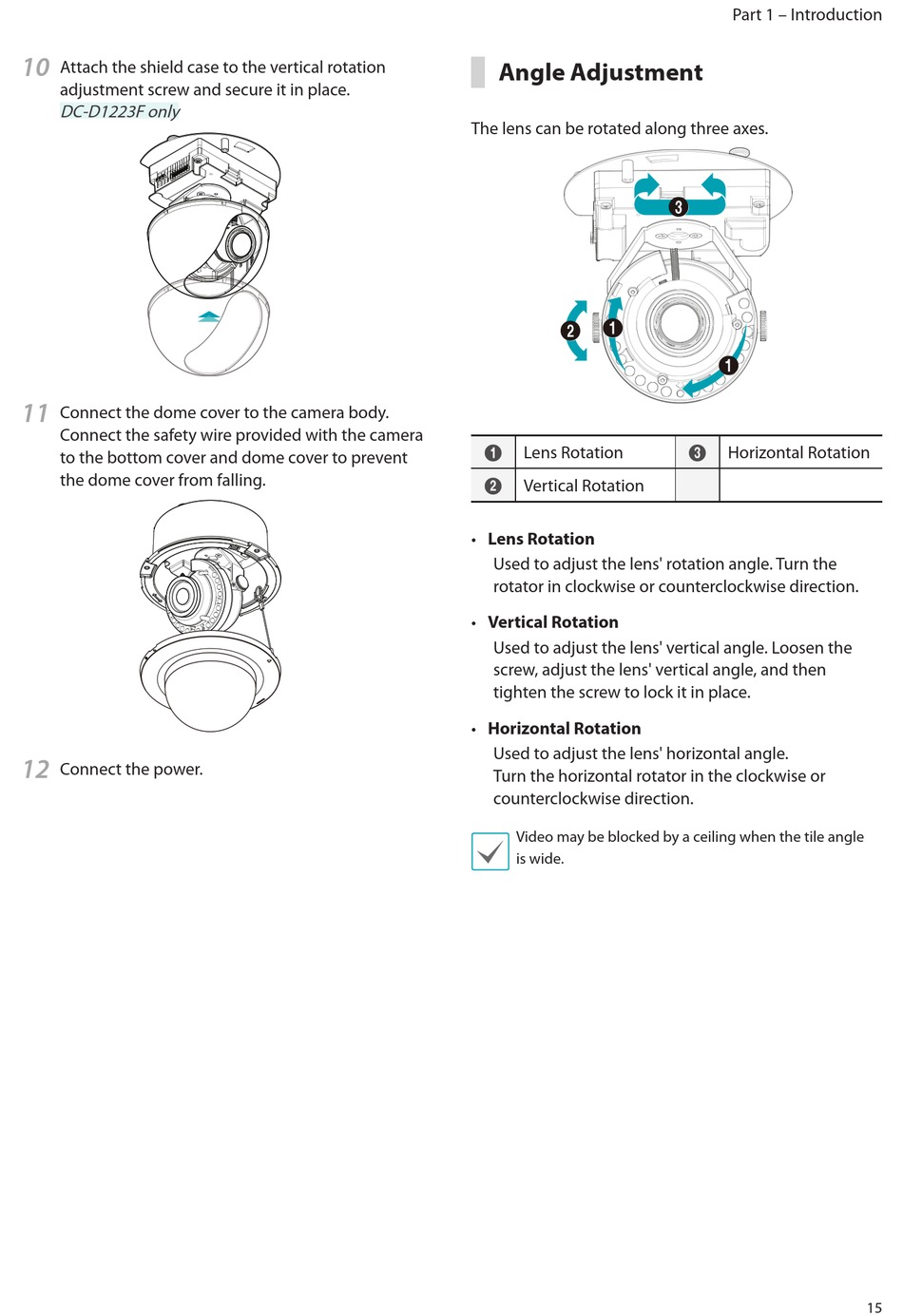

Angle Adjustment - Direct IP Idis DC-D1223F Installation Manual

10
Attach the shield case to the vertical rotation
adjustment screw and secure it in place.
DC-D1223F only
11
Connect the dome cover to the camera body.
Connect the safety wire provided with the camera
to the bottom cover and dome cover to prevent
the dome cover from falling.
12
Connect the power.

Angle Adjustment

The lens can be rotated along three axes.
2 1
Lens Rotation
1
Vertical Rotation
2
• Lens Rotation
Used to adjust the lens' rotation angle. Turn the
rotator in clockwise or counterclockwise direction.
• Vertical Rotation
Used to adjust the lens' vertical angle. Loosen the
screw, adjust the lens' vertical angle, and then
tighten the screw to lock it in place.
• Horizontal Rotation
Used to adjust the lens' horizontal angle.
Turn the horizontal rotator in the clockwise or
counterclockwise direction.
Video may be blocked by a ceiling when the tile angle
is wide.
Part 1 – Introduction
3
1
Horizontal Rotation
3
15
