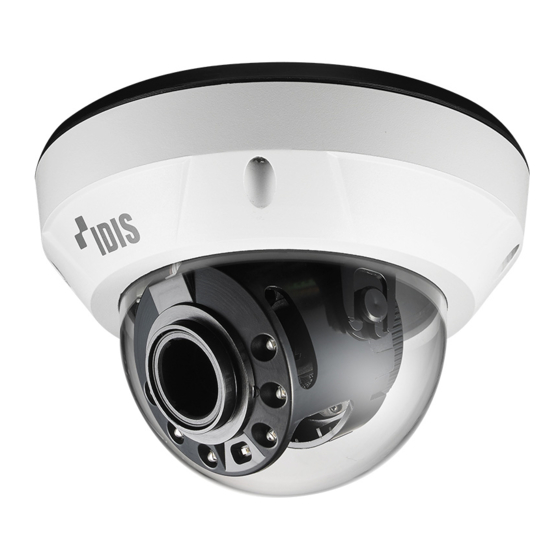

- Page 1 Network Camera Operation Manual DC-D4236X / DC-D4236RX / DC-D4236WRX / DC-D4236HRX DC-D4236X-A / DC-D4236RX-A / DC-D4236WRX-A / DC-D4236HRX-A Powered by...
- Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
-
Page 5: Table Of Contents
Table of Contents Part 1 - Remote Setup ........7 Remote Setup . - Page 6 Table of Contents Event ................30 Alarm In .
-
Page 7: Part 1 - Remote Setup
Part 1 - Remote Setup Remote Setup Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. -
Page 8: Quick Setup
Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed Quick Setup allows you to set up System, Network, the settings, click Save to apply the settings. -
Page 9: General
Part 1 - Remote Setup General • Setup - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 11. - Import Setup: Open a setup file and apply its settings to the camera. -
Page 10: Date/Time
Part 1 - Remote Setup Date/Time User/Group • User/Group: Change remote camera control • Date/Time: Change the camera’s date/time settings permission settings for users and user groups. and display formats and configure the time zone and daylight saving time settings. Click Save to apply the - Add Group: Add a new user group. -
Page 11: Network
Part 1 - Remote Setup Network • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups. -
Page 12: Ip Address
Part 1 - Remote Setup IP Address IPv6 IPv4 • Check Use to activate IPv6. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the • Type: Select the type of network you are using. If this current settings, and then restart Remote Setup. -
Page 13: Fen
Part 1 - Remote Setup • In WAN environment it is recommended to use the UPnP while recording images using FEN or when FEN connection is not stable. Otherwise, Select Use FEN to enable the FEN feature. surveillance and recording may not be desirable depending on your network configuration environment. -
Page 14: Port/Qos
Part 1 - Remote Setup Port/QoS • Use UPnP: If the camera is connected to the network via an IP router (or NAT), select this option to connect to the camera without setting up port forwarding. The IP router (or NAT) must be enabled with UPnP in order for this feature to function properly. -
Page 15: Bandwidth Control
Part 1 - Remote Setup Bandwidth Control • In a WAN environment, it is recommended that you use the UPnP function if you record video by using the FEN function or FEN connection is not smooth. Regulates the camera’s network bandwidth use based Otherwise, monitoring or recording might not be on network traffic fluctuations. -
Page 16: Security
Part 1 - Remote Setup Security IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. •... -
Page 17: Video
Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, Privacy Masking and OSD options. • Frame Rate: Set the frame rate of image sensor. Streaming settings are reset when changing the frame rate. - Page 18 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • Preset: Use preconfigured white balance settings. • Iris: Adjust the openness of the lens IRIS. - Auto: Allow the system to adjust the white - Auto: The system will assess the lighting conditions balance automatically.
- Page 19 Part 1 - Remote Setup Backlight Compensation OFF does not work. Day & Night - ON: When images are too bright overall due to Configure Day & Night settings. backlight, objects are exposed brighter under backlight circumstances. • Exposure Control: Adjust Shutter Speed and gain. This option is available only when Anti-Flicker and Slow Shutter are both set to Off.
- Page 20 Part 1 - Remote Setup • Switching Level: Sets up the switching level between Miscellaneous daytime and nighttime modes. For example, if the Configure Miscellaneous settings. darkness level is set to 3 and the brightness level to 5, the system switches to nighttime mode when in lighting conditions of level 3 or below and to daytime mode when in lighting conditions of level 5 or over.
-
Page 21: Streaming
Part 1 - Remote Setup Streaming remote program or the SD memory card recording feature has been enabled. • Intelligent Codec: Analyze real-time video intelligently to minimize bitrate while maintaining frame rate and image quality. In environments where there are many video changes, image quality can be reduced. -
Page 22: Webcasting
Part 1 - Remote Setup Webcasting Select the MAT option to use the MAT (Motion Adaptive Use the webcasting service to view live images from the camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on •... -
Page 23: Privacy Masking
Part 1 - Remote Setup Privacy Masking Select Privacy Masking to set up a privacy mask over Select OSD to indicate texts and Date/Time information. a specific area. The section on which a privacy mask is applied will appear as black when monitoring video. •... -
Page 24: Audio
Part 1 - Remote Setup Audio Input/Output DC-D4236X/DC-D4236RX/DC-D4236WRX/DC-D4236HRX models only Configure audio in/out settings. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume. • Output: Select an option and then adjust the volume. Cameras do not feature built-in audio amplifier units and therefore require the user to purchase a speaker system with a built-in amplifier separately. -
Page 25: Event Action
Part 1 - Remote Setup Event Action Alarm out Designate event detection alert actions. Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration. -
Page 26: Email
Part 1 - Remote Setup Email Remote Callback Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature. -
Page 27: Audio Alarm
Part 1 - Remote Setup Audio Alarm FTP Upload DC-D4236X/DC-D4236RX/DC-D4236WRX/DC-D4236HRX Select FTP Upload to upload .jpg image of the event models only detected to an FTP server. Select Audio Alarm to generate audio. • FTP Server: Click Add to register a new FTP server. Click Remove to remove a registered FTP server. - Page 28 Part 1 - Remote Setup • When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #, *, |, :, ", <, >, and ?. • The resolution of FTP upload image can change depending on the resolution setting applied under Video >...
-
Page 29: Record
Part 1 - Remote Setup Record Schedule Select the Schedule tab and set up a recording schedule. Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or • Mode: Choose a recording mode. higher) has been properly inserted. -
Page 30: Event
Part 1 - Remote Setup Event Settings Select the Settings tab and configure recording settings. Configure event detection settings. • Recording Stream: Choose a stream to use for recording. It’s possible to designate different streams for different recording modes. - Time-Lapse/Pre-Event: Designate the stream to use for recording in time lapse mode or event mode (pre-event). -
Page 31: Alarm In
Part 1 - Remote Setup Alarm In - Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav). D4236X/DC-D4236RX/DC-D4236WRX/DC-D4236HRX Select Alarm In to enable alarm in event. With alarm models only in event enabled, alarm in detections by the alarm in - FTP Upload: Select this option if you wish to connector will be assumed as events. -
Page 32: Motion Detection
Part 1 - Remote Setup Motion Detection • Motion Ignoring Interval: With Motion Ignoring Interval configured, no event log or notification is generated for motions detected during a period of time following a motion detection event. Select Motion Detection to configure motion detection •... -
Page 33: Trip-Zone
Part 1 - Remote Setup Trip-Zone other times will be assumed as nighttime. - Alarm Out: Select if you wish to generate an alarm out. Select Trip-Zone to configure trip zone event settings. - Send Email: Select if you wish to send an email. With trip zone event enabled, motion detected inside/ Select the Image Attachment option to attach a outside the selected area will be assumed as an event. -
Page 34: Audio Detection
Part 1 - Remote Setup Audio Detection • Event Action: Select an audio detection event alert action. - Alarm Out: Select if you wish to generate an alarm DC-D4236X/DC-D4236RX/DC-D4236WRX/DC-D4236HRX out. models only - Send Email: Select if you wish to send an email. Select Audio Detection to configure audio detection Select the Image Attachment option to attach a event settings. -
Page 35: Tampering
Part 1 - Remote Setup Tampering • Event Action: Select a tampering detection event alert action. - Alarm Out: Select if you wish to generate an alarm Select Tampering to configure tampering detection out. event settings. With tampering detection event enabled, - Send Email: Select if you wish to send an email. -
Page 36: System Event
Part 1 - Remote Setup System Event • Email and Remote Callback settings under Event Action must be configured correctly in order to send out emails and messages. Select System Event and configure system event • Remote Callback is not supported on IDIS Web. settings. -
Page 37: Part 2 - Idis Web
Part 2 - IDIS Web IDIS Web is a program that allows you to view and search video from remote locations over the Internet and can be accessed on a Microsoft Internet Explorer or Chrome System requirements for running IDIS Web are as follows: •... - Page 38 Part 2 - IDIS Web When prompted with the IDIS Web login window, select LIVE-PORT or PLAY-PORT as the desired mode. Enter the ID and password and click LOGIN to sign in using the selected mode. • IDIS Web does not work with Microsoft Windows 8 metro UI.
-
Page 39: Web Live Mode
Part 2 - IDIS Web Web Live Mode A remote web monitoring program that allows you to monitor images from remote locales in real-time. & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. - Page 40 Part 2 - IDIS Web Used to adjust live video quality. Click to control the alarm out device connected to the camera. Event status window at the bottom of the screen displays a list of events detected at remote locales. TYPE 1 TYPE 1 Enable/Disable Alarm In...
-
Page 41: Web Search Mode
Part 2 - IDIS Web Web Search Mode A remote web search program that allows you to search for recordings from remote locales in real-time. While in Web Search mode, connection to remote locales will terminate automatically after 30 minutes of inactivity. 113.49 NC-D320-IP &... - Page 42 Part 2 - IDIS Web Zoom in or out on the video. Adjust image brightness. Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images. Image calibration is applied only during the paused state. TYPE 1 Use the calendar to search for video recordings by specific dates. Dates containing video recordings are highlighted in light blue.
-
Page 43: Part 3 - Appendix
Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio Input/Output Event Action Alarm Out Email Remote Callback... -
Page 44: Index
Part 3 - Appendix Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Compression Date/Time DSCP Time Sync FEN Name Use FEN FEN Server Use HTTPS Frame Rate User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V1.3... - Page 45 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
