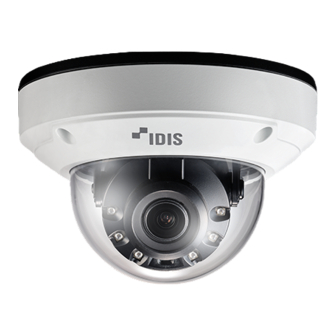

- Page 1 Network Camera Installation Manual DC-D4538RA DC-D4538WRA Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and Play) function and embedded mDNS (Multicast DNS) protocol DC-D4538RA/DC-D4538WRA are IP-based network • Wide dynamic range compensation (True WDR) for cameras that compress and transmit video over improved video quality in high-contrast situations Ethernet. -
Page 7: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. DC-D4538RA DC-D4538WRA Terminal Blocks (2 ea.) Network Camera Desiccant (3ea.), double-sided tape (2ea.) Allen Wrench DC-D4538RA DC-D4538WRA Quick Guide... -
Page 8: Overview
Part 1 – Introduction Overview Body DC-D4538RA Dome Cover DC-D4538RA DC-D4538WRA... - Page 9 DC-D4538WRA Restores the camera's default factory settings. For more information, refer to the Factory Reset. • Built-in Microphone DC-D4538RA model only Receives audio. • Wall/Ceiling Installation Hole Used to screw the camera in place on a wall or a ceiling.
- Page 10 Part 1 – Introduction • Alarm • Check your local laws and regulations on making - O (Out): It is the BJT (Bipolar Junction Transistor) video or audio recordings. The user will be held - open collector output. If the voltage and current liable for any violation of the law.
-
Page 11: Factory Reset
Removing the Dome Cover Hold the button down and reconnect the power adapter. DC-D4538RA Once the device turns back on, wait 5 seconds, and then release the reset button. Turn the dome cover counterclockwise. The device will go through the resetting process and reboot. -
Page 12: Inserting A Sd Memory Card
Insert a SD memory card into the SD memory card slot Loosen the screws counterclockwise using the allen with the 'micro SD' print facing upward. wrench provided with the product. DC-D4538RA DC-D4538WRA Remove the dome cover. Push the SD memory card until it disengages from the... -
Page 13: Installation
• Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely. Safety Wire Screw (Provided) DC-D4538RA Safety Wire (Not Provided) Use the screws, anchor provided with the camera to secure the install bracket on a wall or a ceiling. - Page 14 Part 1 – Introduction Desiccant To pass through a thin cable or more than two cables, it is advised to finish it using silicon to make sure waterproofed perfectly. (Silicon finishing part — refer Use the screws, anchor provided with the camera to to the bottom image.) secure the install body on a wall or a ceiling.
-
Page 15: Angle Adjustment
Part 1 – Introduction Closing the Dome Cover Adjust the angle. For more information, refer to the Angle Adjustment. DC-D4538RA Angle Adjustment Attach the dome cover to the bottom cover in a straight line. Turn the dome cover clockwise to fasten the dome The lens can be rotated along three axes. -
Page 16: Dimension
Part 1 – Introduction Dimension DC-D4538RA Ø 122mm Ø 100mm Remove the protective film inside and outside. - Page 17 Part 1 – Introduction DC-D4538WRA Ø 155mm Ø 100mm...
-
Page 18: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP® NVR or non DirectIP® NVR, VMS such as IDIS Solution Suite Compact. With DirectIP® NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out Power Network Remote Monitoring... -
Page 19: With Non Directip® Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP® NVR-based Layout Sensor In Audio In Alarm Out Audio Out microSD Memory Card Network Camera Network Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location. -
Page 20: Part 3 - Appendix
Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. If using a PoE switch to supply power to the camera using an Ethernet cable, check the Ethernet cable connection. • Check the power outlet. If using a PoE switch to supply power to the camera using an Ethernet cable, check the PSE device's power supply. -
Page 21: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 2592 x 1944 (4:3) 2592 x 1456 (16:9) Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=2.7 - 13.5mm Aperture F=1.4 ~ 3.2 Iris Control... - Page 22 Test the SD memory card regularly and replace it whenever necessary. * microSD Logo is a trademark of SD-3C, LLC. Audio In/Out Line-in 1ea / Line-out 1ea / Internal Mic 1ea( DC-D4538RA only Alarm In 1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC Alarm Out 1 TTL open collector, Max.
- Page 23 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
