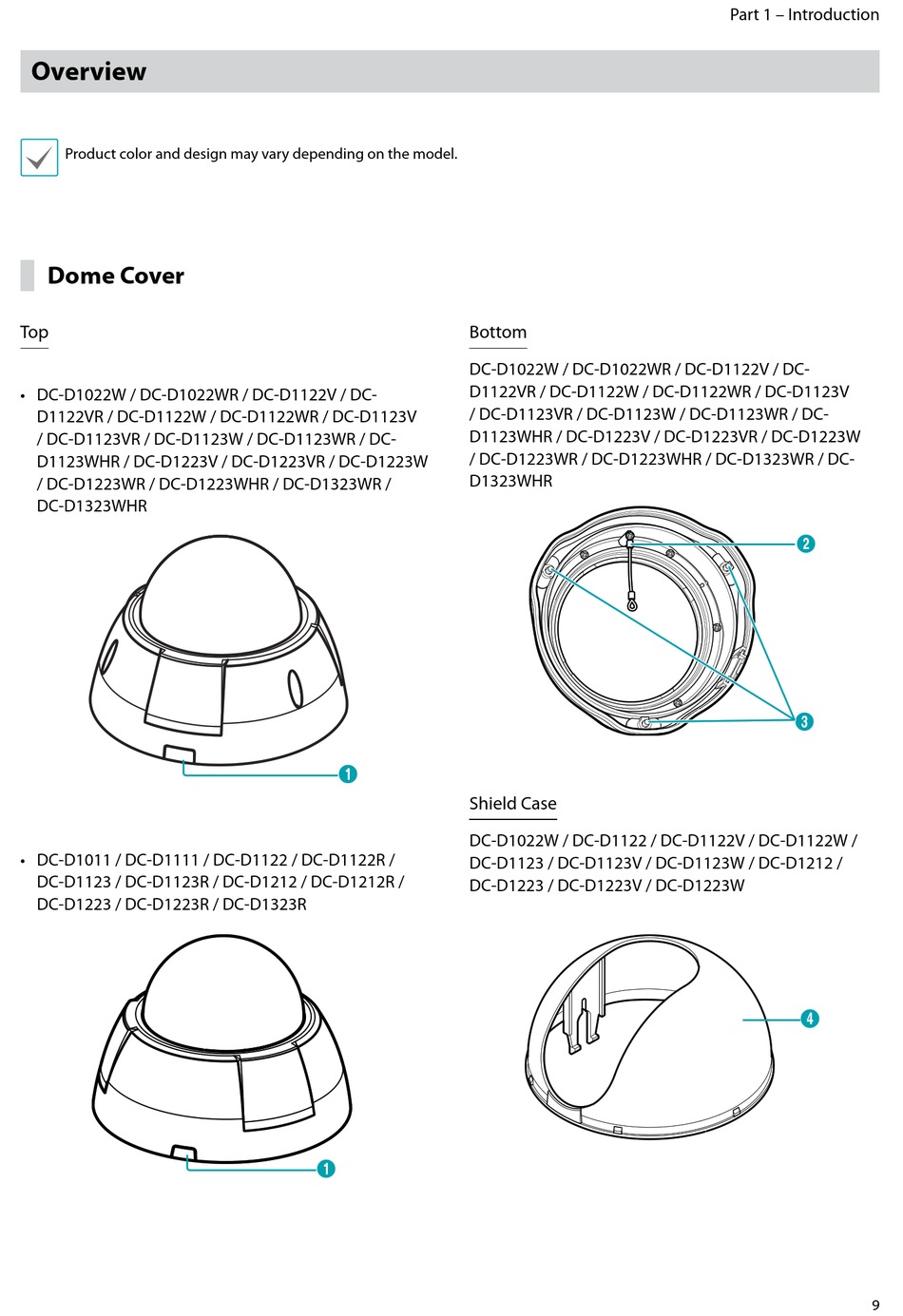

Overview

Product color and design may vary depending on the model.

Dome Cover

Top
• DC-D1022W / DC-D1022WR / DC-D1122V / DC-
D1122VR / DC-D1122W / DC-D1122WR / DC-D1123V
/ DC-D1123VR / DC-D1123W / DC-D1123WR / DC-
D1123WHR / DC-D1223V / DC-D1223VR / DC-D1223W
/ DC-D1223WR / DC-D1223WHR / DC-D1323WR /
DC-D1323WHR
• DC-D1011 / DC-D1111 / DC-D1122 / DC-D1122R /
DC-D1123 / DC-D1123R / DC-D1212 / DC-D1212R /
DC-D1223 / DC-D1223R / DC-D1323R
Bottom
DC-D1022W / DC-D1022WR / DC-D1122V / DC-
D1122VR / DC-D1122W / DC-D1122WR / DC-D1123V
/ DC-D1123VR / DC-D1123W / DC-D1123WR / DC-
D1123WHR / DC-D1223V / DC-D1223VR / DC-D1223W
/ DC-D1223WR / DC-D1223WHR / DC-D1323WR / DC-
D1323WHR
1
Shield Case
DC-D1022W / DC-D1122 / DC-D1122V / DC-D1122W /
DC-D1123 / DC-D1123V / DC-D1123W / DC-D1212 /
DC-D1223 / DC-D1223V / DC-D1223W
1
Part 1 – Introduction
2
3
4
9
