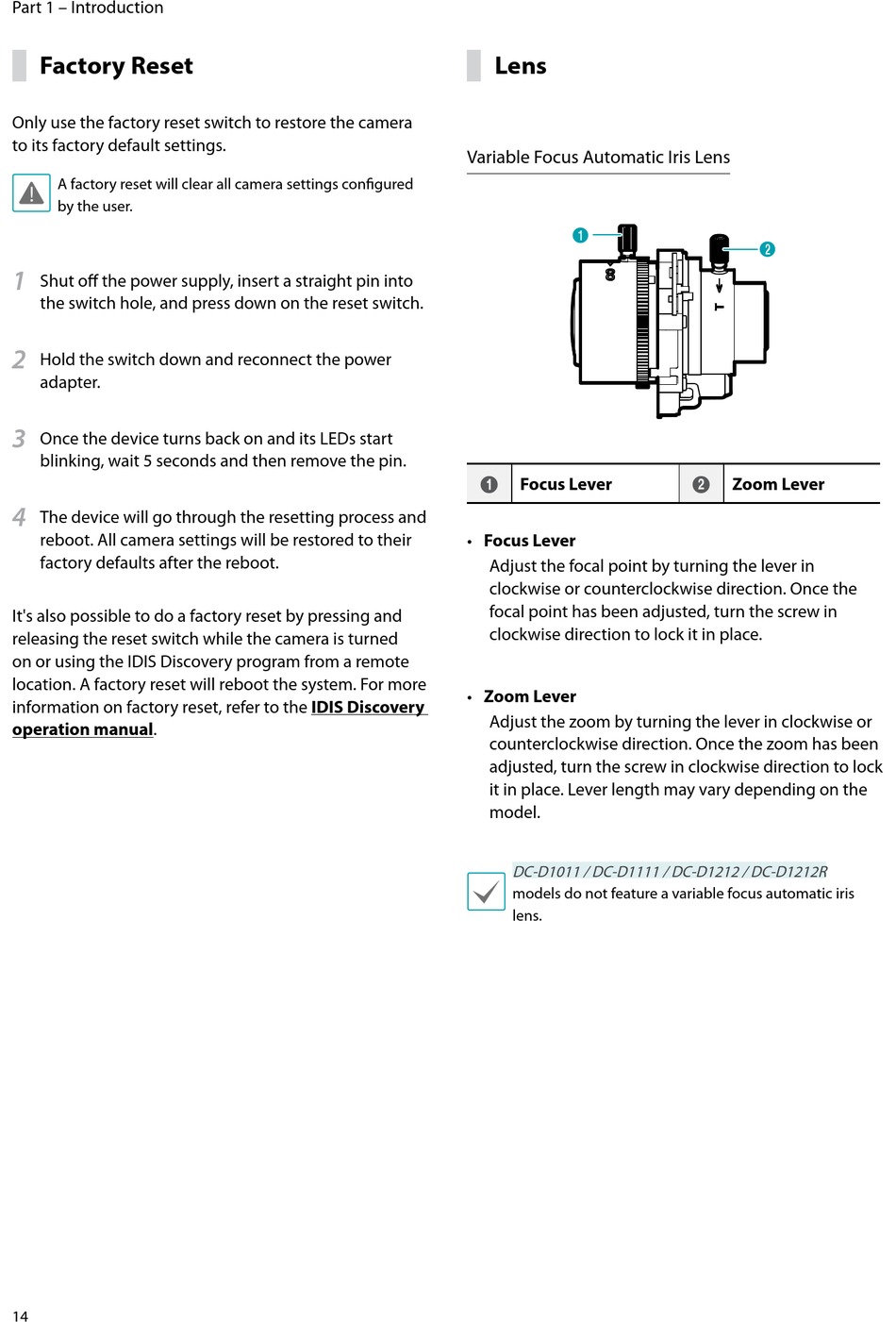

Factory Reset; Lens - Direct IP IDIS DC-D1011 Installation Manual

Part 1 – Introduction

Factory Reset

Only use the factory reset switch to restore the camera
to its factory default settings.
A factory reset will clear all camera settings configured
by the user.
1
Shut off the power supply, insert a straight pin into
the switch hole, and press down on the reset switch.
2
Hold the switch down and reconnect the power
adapter.
3
Once the device turns back on and its LEDs start
blinking, wait 5 seconds and then remove the pin.
4
The device will go through the resetting process and
reboot. All camera settings will be restored to their
factory defaults after the reboot.
It's also possible to do a factory reset by pressing and
releasing the reset switch while the camera is turned
on or using the IDIS Discovery program from a remote
location. A factory reset will reboot the system. For more
information on factory reset, refer to the IDIS Discovery
operation manual.
14

Lens

Variable Focus Automatic Iris Lens
1
Focus Lever
1
• Focus Lever
Adjust the focal point by turning the lever in
clockwise or counterclockwise direction. Once the
focal point has been adjusted, turn the screw in
clockwise direction to lock it in place.
• Zoom Lever
Adjust the zoom by turning the lever in clockwise or
counterclockwise direction. Once the zoom has been
adjusted, turn the screw in clockwise direction to lock
it in place. Lever length may vary depending on the
model.
DC-D1011 / DC-D1111 / DC-D1212 / DC-D1212R
models do not feature a variable focus automatic iris
lens.
2
Zoom Lever
2
