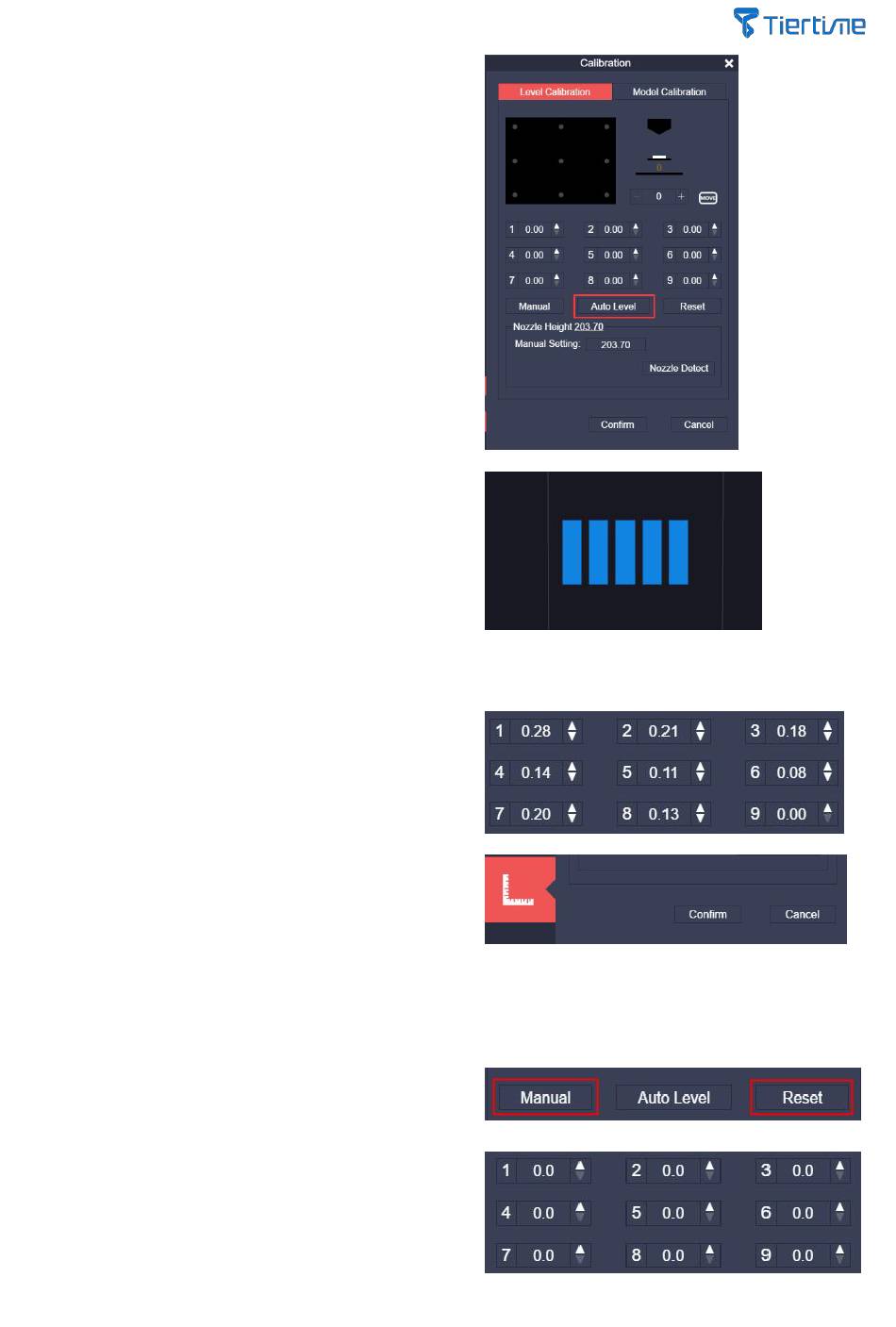

1, In the Calibration Dialog, click "Auto"
2, The extruder automatically moves from the point 1 to the
point 9, stops at each position, tests the height, calculates
the compensation value for each point and enters the value
in the dialog.
3, After the calibration, UP Studio will automatically
calculate the nozzle height. Click the Confirm button to
conclude the whole process.

5.4.3 Manual Calibration and Nozzle Height Adjustment

1, Click the "Reset" button to set all the 9 point values to 0,
and then click the "Manual" button.
The following shows the compensation values for the 9
points
38
