Filament Install (Touchscreen) - TierTime UP mini 3 User Manual

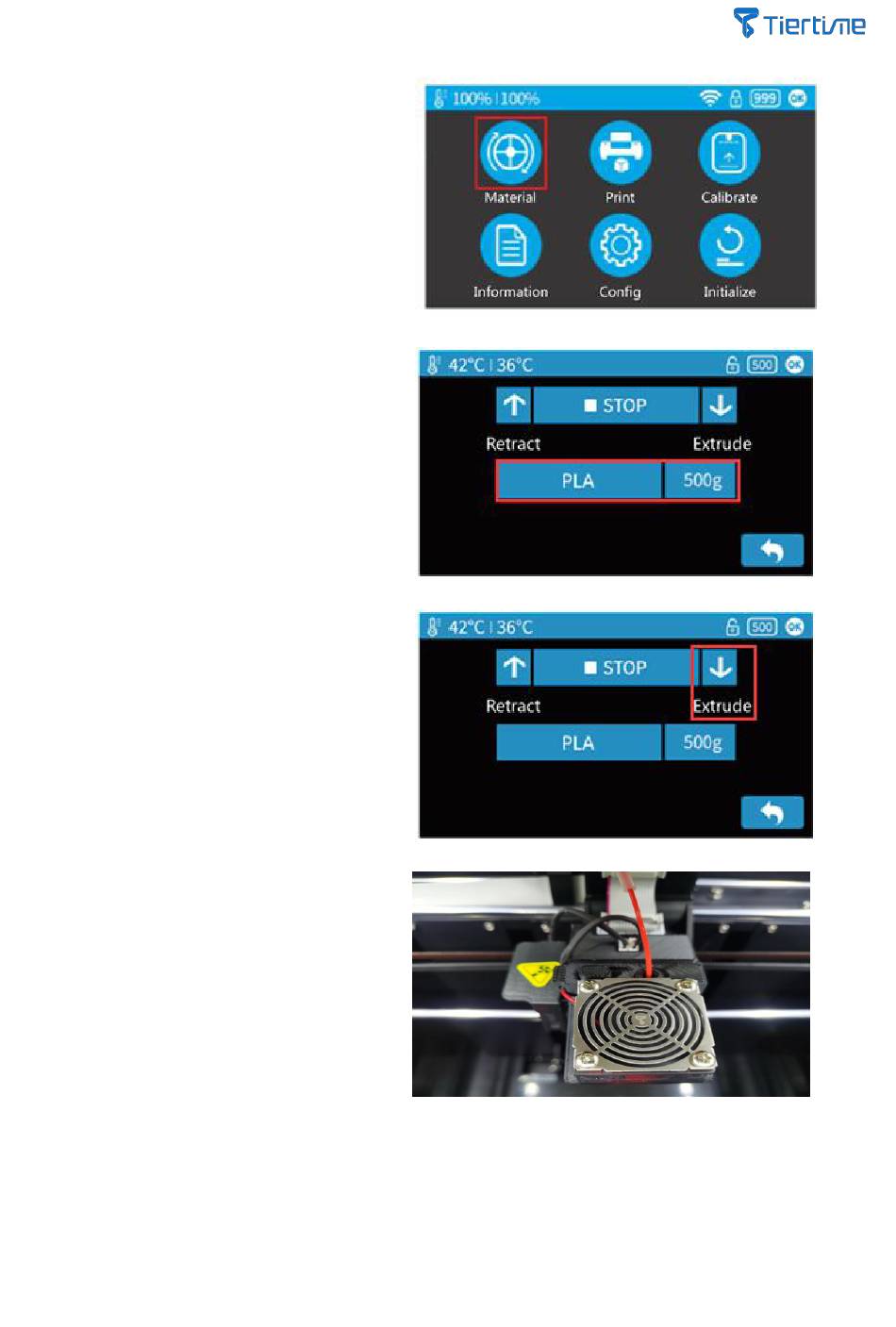

5.2.1 Filament Install (Touchscreen)

1, Enter filament through the guiding tube, insert
the loose end into the inlet on the top of the
extruder. Click the "Material" button on the
touchscreen.
2, Click the "Filament Type" button (it will switch
to different filament types) and choose the right
filament type, e.g. "ABS". Click the "Filament
Weight" button to choose the right spool weight.
3, Click the "Extrude" button, the nozzle will start
heating up until the temperature reaches the
preset temperature.
4, Once the nozzle temperature reaches the
preset value, the printer will beep. The user can
insert the loose end of the filament until the
extruder motor grabs the filament and pulls it in.
23
