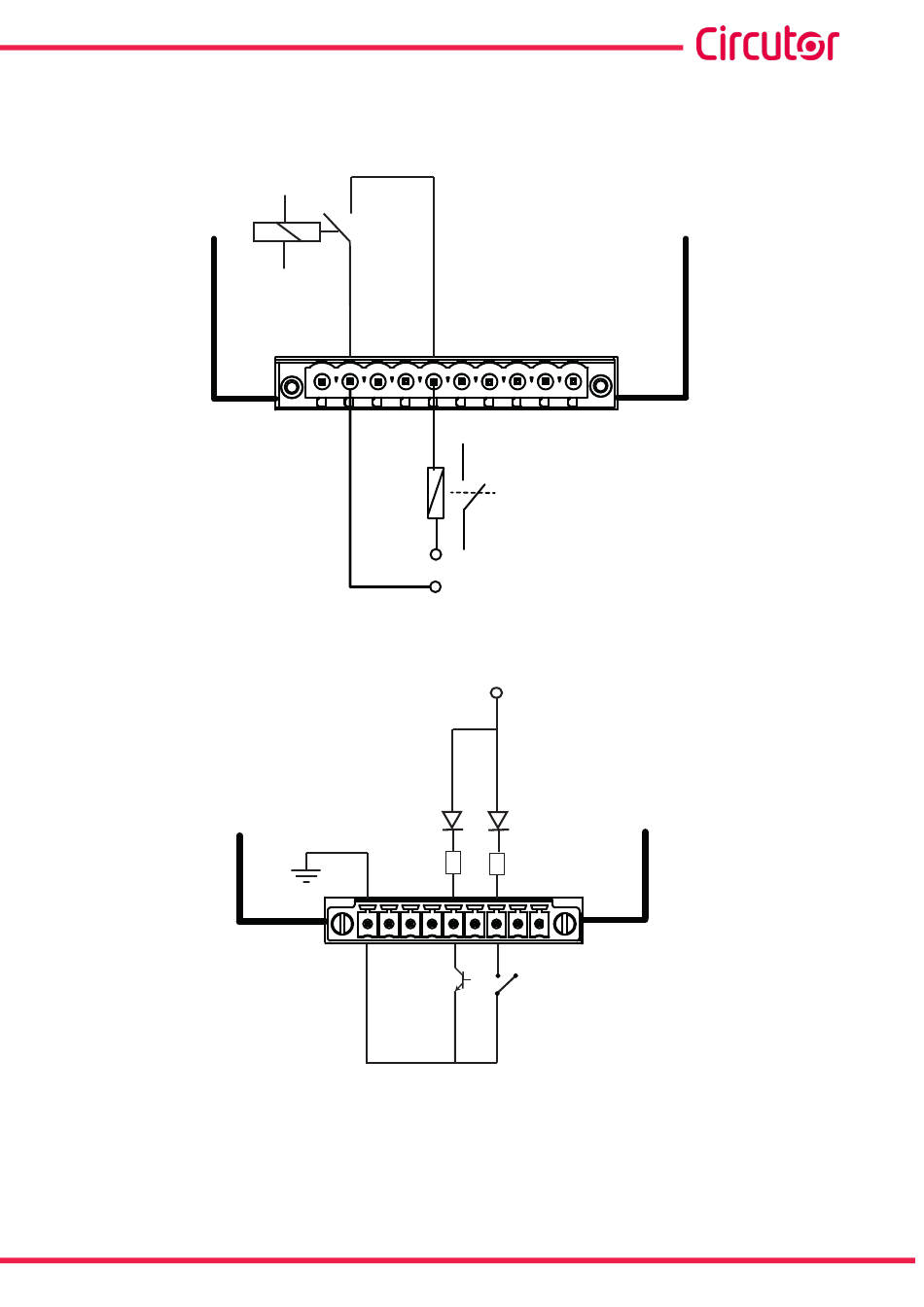

7�2�2�- CONNECTION DIAGRAMS
A�- Relay digital outputs
Relay
1 2 3 4 5 6 7 8 9 10
External power
Figure 248: Connection diagram, relay digital outputs�
B�- Digital inputs
12 V DC
COMM
3k
3k
11
19
NPN
Free voltage input
Figure 249: Connection diagram, digital inputs�
