CVM-B150-ITF-HF
On selecting the RS-485 option,
, the screen in , appears with information on the
Figure 171
configuration of the RS-485 gateway.

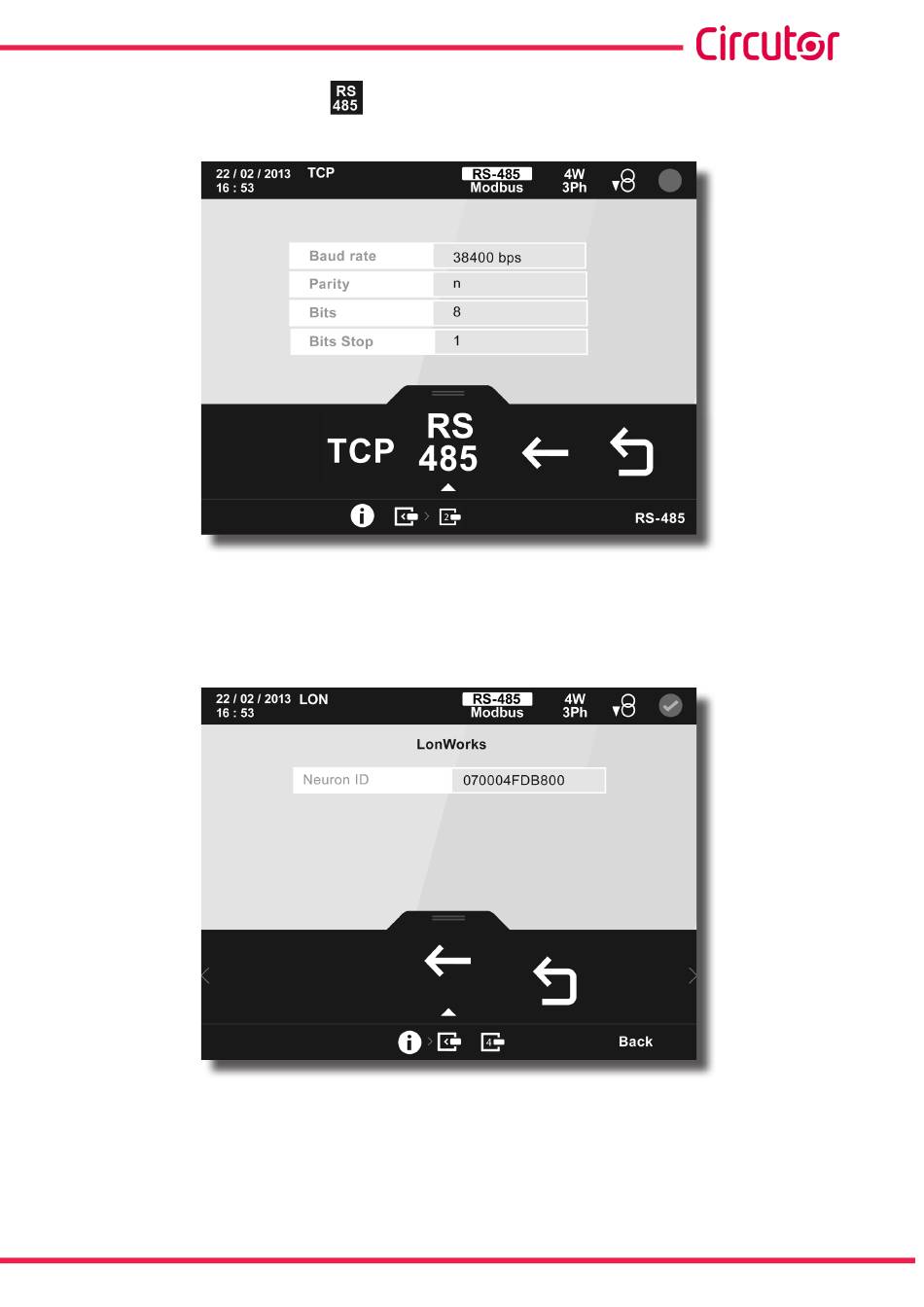

Figure 171: Information screen of the Modbus/TCP ( Bridge) module (RS-485 Gateway)�
5�5�3�4�- LonWorks communications expansion modules
The screen in display screen, is a screen that displays the information of the LonWorks
Figure 172
communications module.
Figure 172: LonWorks module information screen�
This screen displays the device's Neuron ID, a single 48-bit identifier of each Neuron Chip.
The following options appear in the lower area:
