If no key is pressed for 5 minutes, the display screen changes automatically to the default screen.
The programmed alarms description table,
Cd� : Indicates the code of the variable that controls the programmed alarm,
Description : Description of alarm that you have programmed.
Example: M0 RL1 V L1
The icon
Date : If the alarm has been activated, the date when this occurred will be displayed.
Time : If the alarm has been activated, the time when this occurred will be displayed.
106

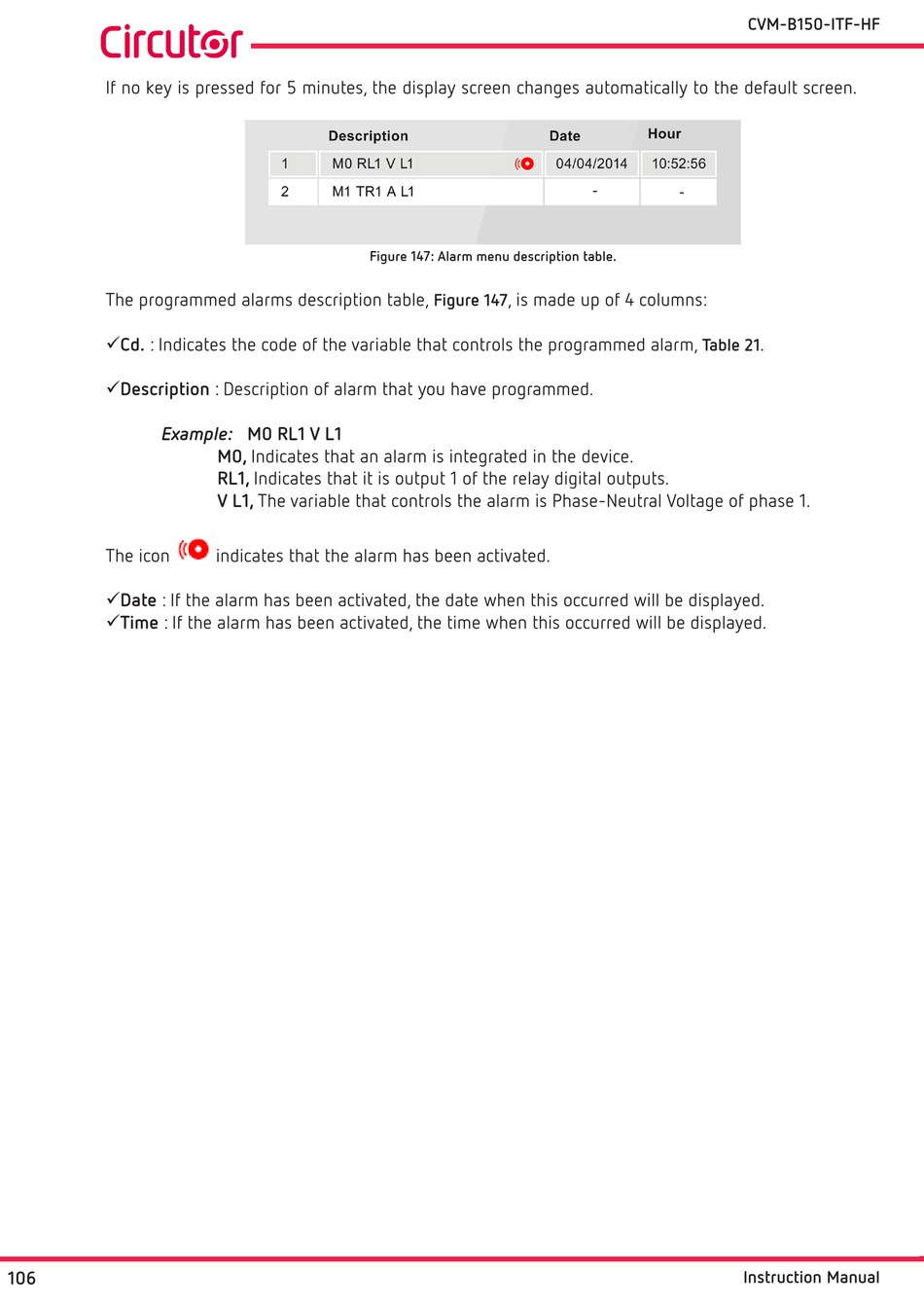

Figure 147: Alarm menu description table�
M0, Indicates that an alarm is integrated in the device.
RL1, Indicates that it is output 1 of the relay digital outputs.
V L1, The variable that controls the alarm is Phase-Neutral Voltage of phase 1.
indicates that the alarm has been activated.
, is made up of 4 columns:
Figure 147
