 Consumption or Generation
The icon
The icon
 Alarm status
The icon
The icon
The icon

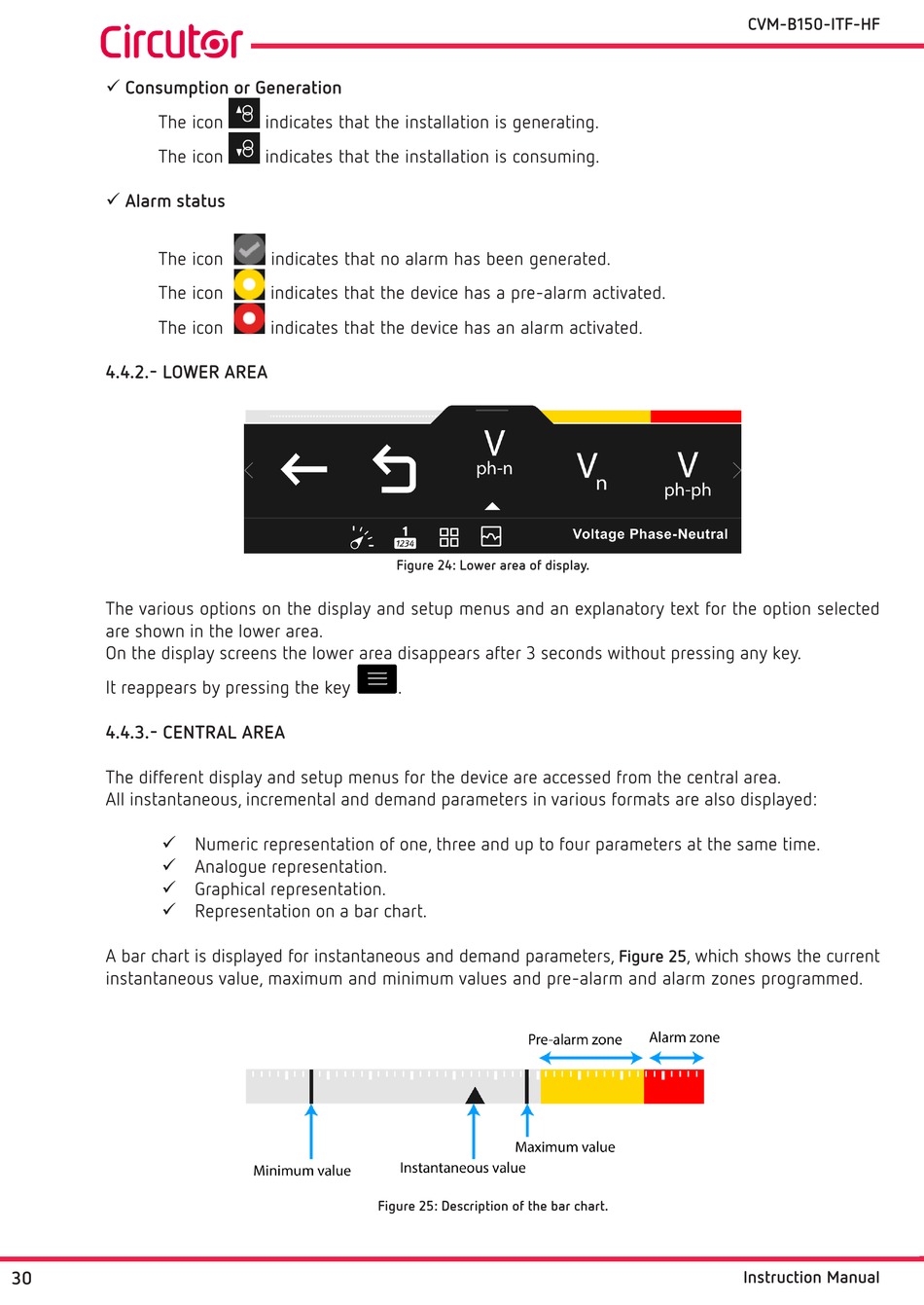

4�4�2�- LOWER AREA
The various options on the display and setup menus and an explanatory text for the option selected
are shown in the lower area.
On the display screens the lower area disappears after 3 seconds without pressing any key.
It reappears by pressing the key
4�4�3�- CENTRAL AREA
The different display and setup menus for the device are accessed from the central area.
All instantaneous, incremental and demand parameters in various formats are also displayed:
 Numeric representation of one, three and up to four parameters at the same time.
 Analogue representation.
 Graphical representation.
 Representation on a bar chart.
A bar chart is displayed for instantaneous and demand parameters,
instantaneous value, maximum and minimum values and pre-alarm and alarm zones programmed.
30
indicates that the installation is generating.
indicates that the installation is consuming.
indicates that no alarm has been generated.
indicates that the device has a pre-alarm activated.
indicates that the device has an alarm activated.
Figure 24: Lower area of display�
.
Figure 25: Description of the bar chart�
CVM-B150-ITF-HF
, which shows the current
Figure 25
