CVM-B150-ITF-HF
Note : If in the device there is more than one module of the same type connected, a number will appear
in the icon to differentiate; the module with the lowest number has the lowest serial number.
Select the Modbus TCP (Bridge) communications
icon,

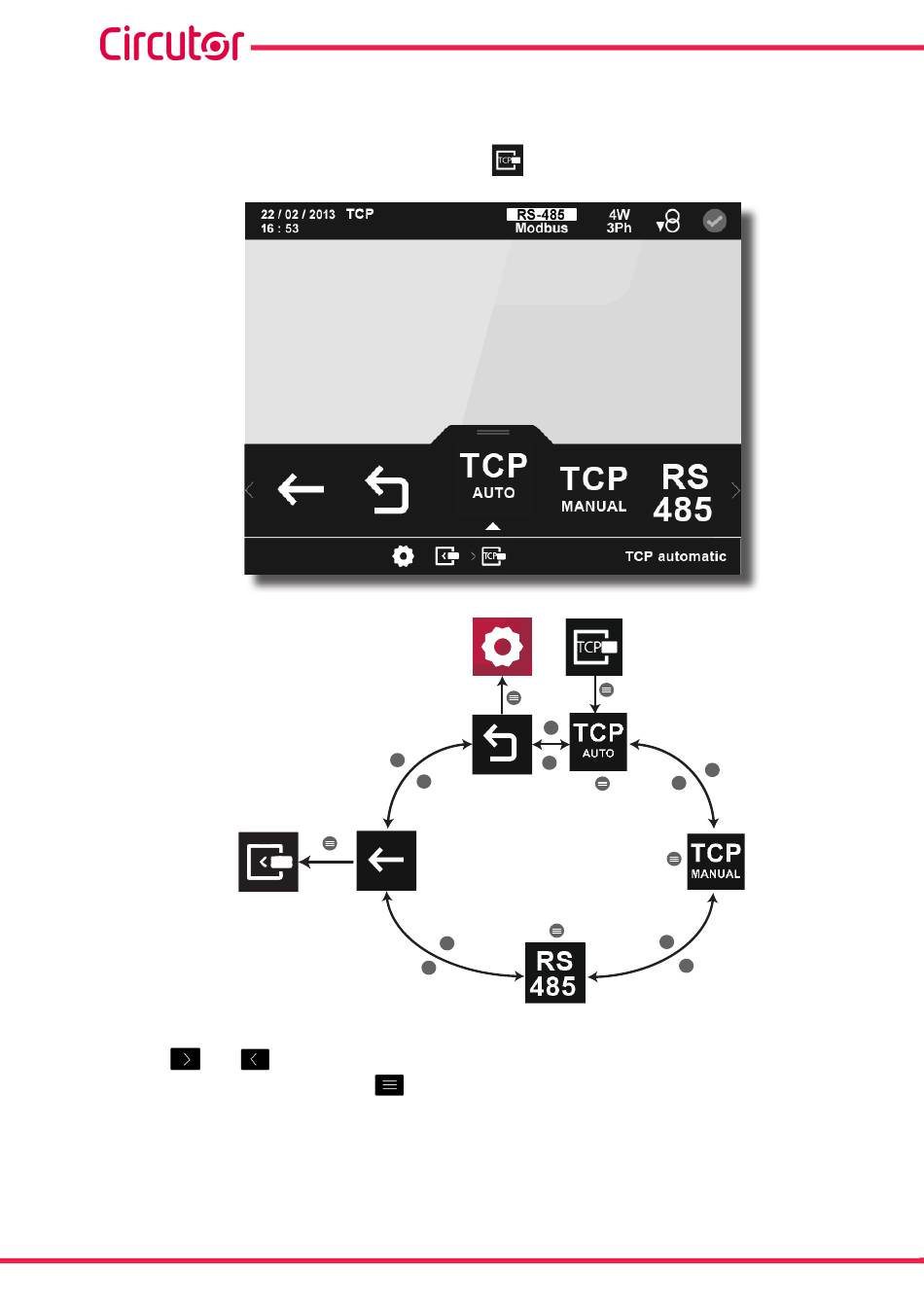

Figure 285�
Figure 285: Main configuration screen of the Modbus TCP communications module�
>
>
<
>
<
<
Main
TCP auto
menu
TCP
Back
manual
RS-485
>
> 8
<
<
Figure 286: Setup menu : Modbus TCP communications module�
Use the and buttons to select the different options.
To confirm the selection, press the button.
